Specifications
Length: 55m (180’ 6”)
Beam: 9.4m (30’ 11”)
Draft: 3m (9’ 11”)
Build Year: 2011
Refit Year: 2022
Builder: Heesen
Naval Architect: Vripack / Heesen
Exterior Designer: Omega Architects
Interior Designer: Mark Berryman (refit) / Ken Freivokh & Michela Reverberi (original)
GT: 781
Hull: Aluminium
Superstructure: Aluminium
Hull Colour: Navy Blue hull / White superstructure
Hull Configuration: Semi-Displacement
Flag: Cayman Islands
Classification: Bureau Veritas
MCA Compliant: Yes
Heli: Heli-Capable – handles a Eurocopter EC 135 or similar
Main Engines: 2 x MTU 20V4000M93L, 4300kW at 2100 rpm each
Fuel: Diesel
Water: 30,000 litres (7,925 US Gallons)
Holding Tanks: 9843 ltrs
Cruising Speed: 17 knots
Maximum Speed: 25 knots
Number of Cabins: 6
Guests: 12
Sleeping Configuration: Main Deck: 1 x Master Cabin (King), 1 x Double Cabin / Lower Deck: 1 x VIP Cabin (Queen) –> convertible into 2 x Double cabins, 1 x Double Cabin, 1 x Twin Cabin (2 x single beds)
Crew Cabins/Berths: 6 crew cabins + 1 captain cabin / 13 crew total
Machinery
Main Engines
Engine Make/Model: 2 x MTU 20V 4000 M93L Diesel @ 4,300kW
Engine Hours: STBD Engine – 6558h , PORT Engine – 9627h
Gearboxes for main Engines: 2 x ZF 23560C + ZF Autocontroll
Drive: Twin Screw Propeller
Generators & Electricity
Generators: 2 x 175kW Kilo Pak, 1 x 80kW Kilo Pak
Generator Hours: FWD Generator – 592h , AFT Generator – 27139h
Generator Fuel Consumption: 400 L/day
Electricity: 400V
Shore Power: Converter 110v/240v/400v 50-60Hz 100kw
Batteries
Main Engine Starting: PORT Engine - 6 x 12 V 50 Ah batteries , STBD Engine - 6 x 12 V 50 Ah batteries.
Service Battery - 6 x 12V 200 Ah batteries paralleled to give 24V 600 Ah capacity.
Emergency: Capacity 400Ah / Emergency Start Batteries: EMG 1 and EMG 2
Air Conditioning:
Type: Chiller unit – 2022Conversion to MC3-CH-C H&H . with 2 Fresh air control units with conversion to MC3-FA-C. Located AHU1 in Bridge Deck Port side and AHU2 FWD Bridge Deck.
Other Machinery
Trim Tabs/Stabilizers: VT Naiad 820 with 2 fins of 4,66m2 – Zero Speed
Bow Thruster: HRP 120Kw, hydraulically driven
Steering System: Sperry Marine System
Fuel Separator & Filtration: Alpha Laval
Sewage System: Hamann treatment
Fresh Water System: HEM, cold water system
Bilge Water Filtration: RWO
Lube Oil Capacity: 2,000 litres (528 US Gallons)
Waste Oil Capacity: 2,000 litres (528 US Gallons)
Elevator: Yes, serving the lower deck, main deck and bridge deck. Does not go up to the sundeck
Communication and navigation systems
COMMUNICATION SYSTEMS
SAT Com: Inmarsat C
Telephone System: Panasonic
SSB: Commander 1500
VHF: Sailor RT 5022 DSC
Cellular Phone System: Gigaset
Intercom: SQS PS – 1650H
NAVIGATION SYSTEMS
Radars: 1 x Furano Band X, 1 x Furano Band S
Gyrocompass: Sperry Marine SN. 1032-125
Magnetic Compass: Northrop Grumman Sperry Marine
Auto Pilot: Sperry Marine Navpilot 4000
Depth Sounder: Furano FE-700
Night Vision: FLIR M400
GPS: SAAB
Plotter: ECDIS Chart
Wind/Speed Log: Furano DS80
Navtex: Furano NX-700
Dual TimeZero with intergrated WASSP system
ENTERTAINMENT SYSTEM – Centralised Controller using Crestron GUI on iPads
AV Equipment
Apple TV, Plex Server, Kaleidoscape, Direct TV, and IP TV

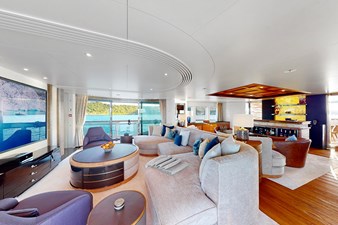

Main Salon: TV 100” Sony FW-100BZ40J. RGB Lighting.
BD Salon: 85” Sony FW-85BZ40H/. RGB Lighting.
Master stateroom: 75” Sony FW-75BZ40H/. RGB Lighting.
Guests’ staterooms: 43” TVs Sony.
Sundeck: 2 x 50’’ TV Sony
Aft deck: 50’’ TV Sony. RGB Lighting. 4 x Disco lights with Sound 2 light feature.
2 x Starlink Maritime antennas.
VSAT: 2 x Intellian V130NX, GEO, MEO, LEO upgradable.
TVRO: 1 x Intelliant130W.
4G/5G: 1 x BlueSIM dome connected via a balance router.
Bowers & Wilkins speakers, James Loudspeakers.
Party Mode and Karaoke System – with integrated sound, microphone, visual and lighting.
Cat7 cabling laid for any future upgrades
Galley & Laundry Equipment
Main Galley Equipment
Cooking Equipment: Leventi Oven
Deep fryer: Pakojet
Steam oven – 2 x Convotherm Combi Steamer OES6.10 mini
Cooktop: 4x Induction cooktop MS-I-20EM
Microwave: Panasonic NE - 1643
Refrigeration/Freezer: Heinen Hopman
Dishwasher: Miele
Dumbwaiter: BKG serving the lower deck, main deck and bridge deck
Crew Galley/Mess Equipment
Microwave : Miele
Dishwasher : Miele
Hot water boiler
Water Filtration system
Other Equipment:
Coffee Machine: Juia Giga 10
Wine fridges: 1x Eurocave V-PREM-L , 6 x mQuvee WineCave 800 60D
Ice-makers: 5x Hoshizaki IM-30CWNE-HC
Laundry Equipment
Washing Machine: 3 x Miele Pro
Tumble Dryer: 3 x Miele Pro
Tenders & Toys
Tenders: 2024 VIKAL 7.5m limo tender / 2022 5.5 Castoldi Jet rescue tender
Dive Gear: Onboard dive compressor + full dive gear for 12 guests
Recreation: 4 x 2024 SeaDoo GTX300 Jet Skis / 3 x 2022 Seabob F5SR / 4 x Lift Electric E-Foil boards / 2 x Ravic Awake S Electric Surfboards / Waterskis / Wakeboard / Snorkelling gear / Full fishing gear on mothership and tender / Tuna tower and outriggers
Inflatables: Custom dock/waterpark for 4 jet skis, 4 electric boards, seabobs, kayaks, SUPs / Custom inflatable prism tower / Custom inflatable bar/lounge area / Donuts
Exercise Equipment: Fully equipped with step machine, cross trainer, Technogym balls and weights set, resistance cables, yoga mats.
Other: Crane with SWL of 1.5 tonnes
Deck Equipment
Anchor Windlass: Staal Art CAR 37-24ED
Aft Warping Capstans: Staal Art
Anchors: Ship Equipment Center 373Kg
Anchor Chain: Rema Holland 24mm; 2 x 5 shackles
Boat Crane and Davits: Hydromar
Passerelle: Hydromar
Swimming Platform: Hydromar
Swim Ladder: Hydromar
Side boarding ladder: Hydromar
Underwater lights: Oceanled (fitted by Huisman)
Searchlights
Garbage Fridge
Safety & Fire Protection
Security Equipment
CCTV System: Samsung SHR-6162
Cameras: Flir
Monitors: Hatteland
Fire Fighting Equipment
Fire Control System: Hi-Fog
Fire Extinguishers: Jockel
Alarms: Tyco Minerva T2000
Safety Equipment
Life Rafts: 4 x Zodiac ZMEC 16
Life Rings: Life jackets, Immersion suits, Lifebuoys
EPIRBS: Jotron + SART Jotron T20
Flares: Comet
Medical Equipment: Full commercial
Spa Equipment
Hammam: KLAFS
Sauna: KLAFS
Massage Room: 1x Fixed massage bed, 1x Foldable massage bed , 2x Massage chairs
