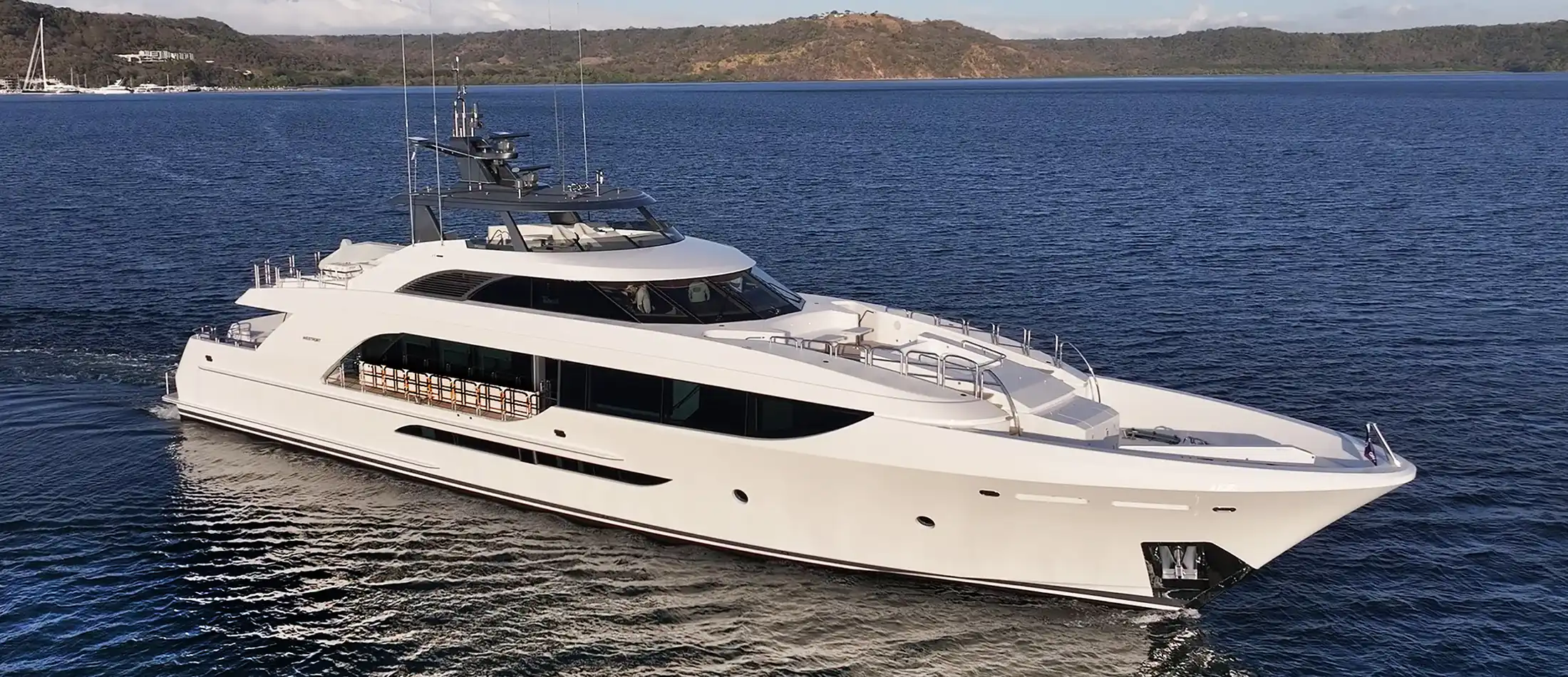

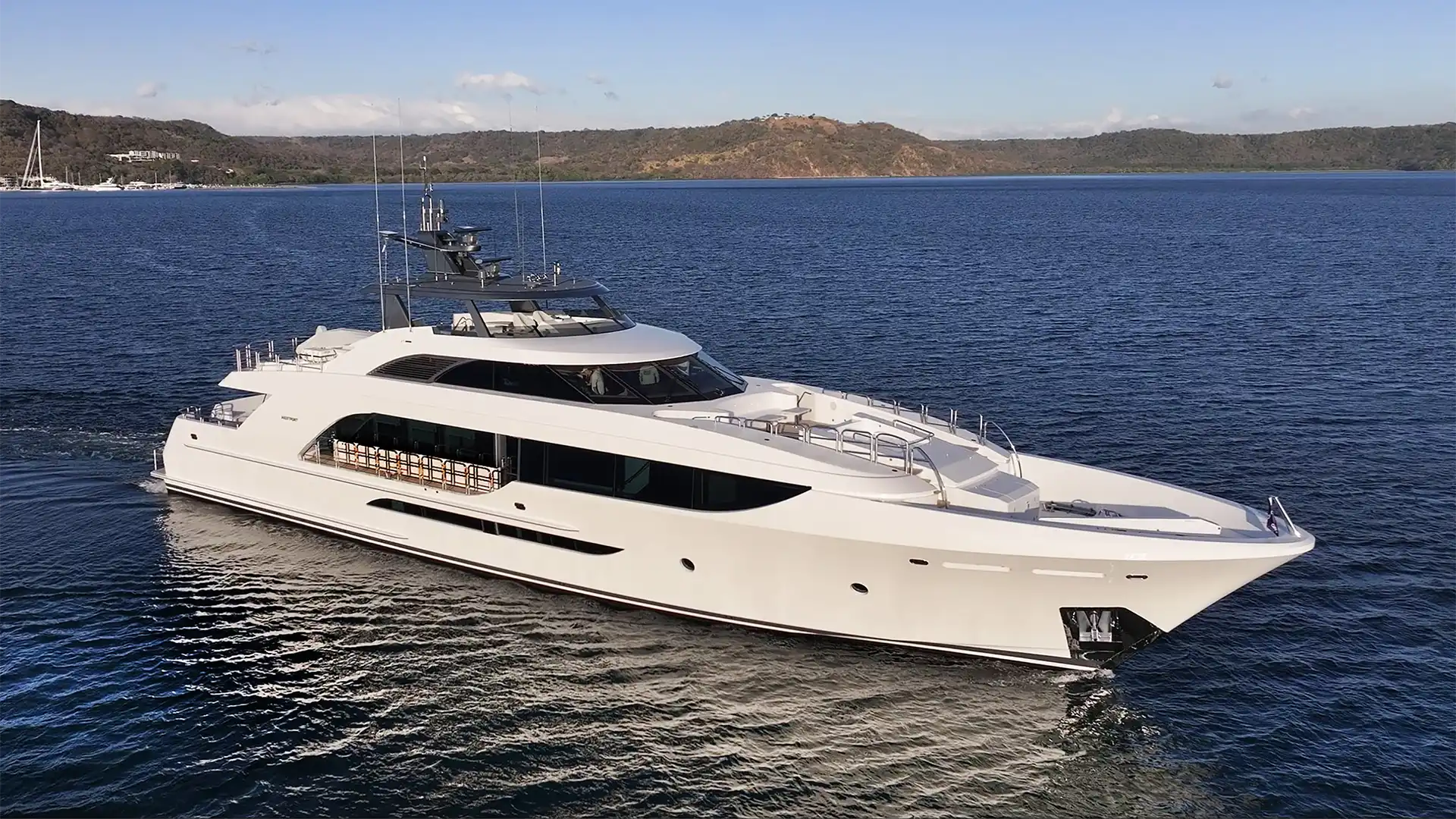

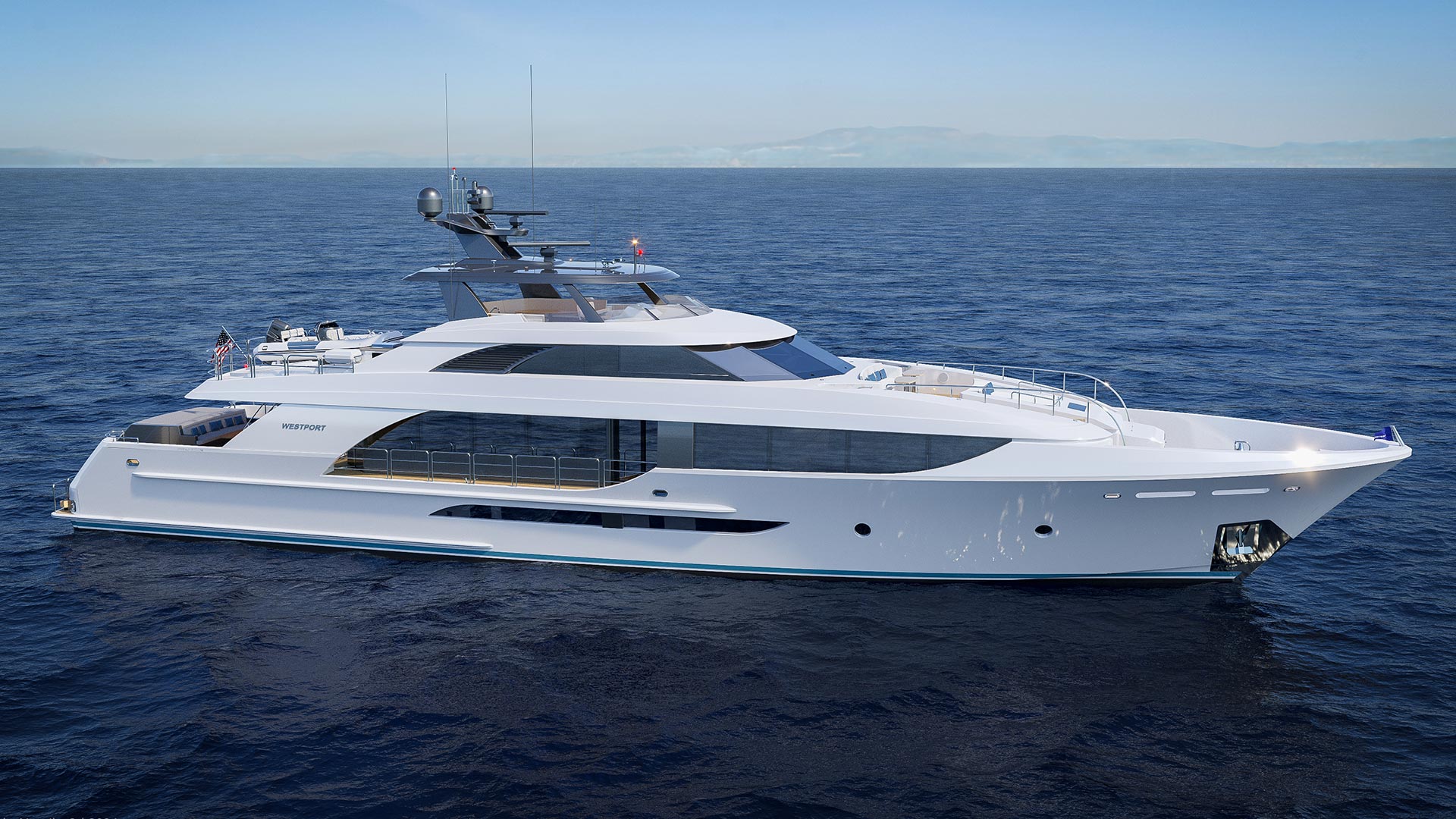

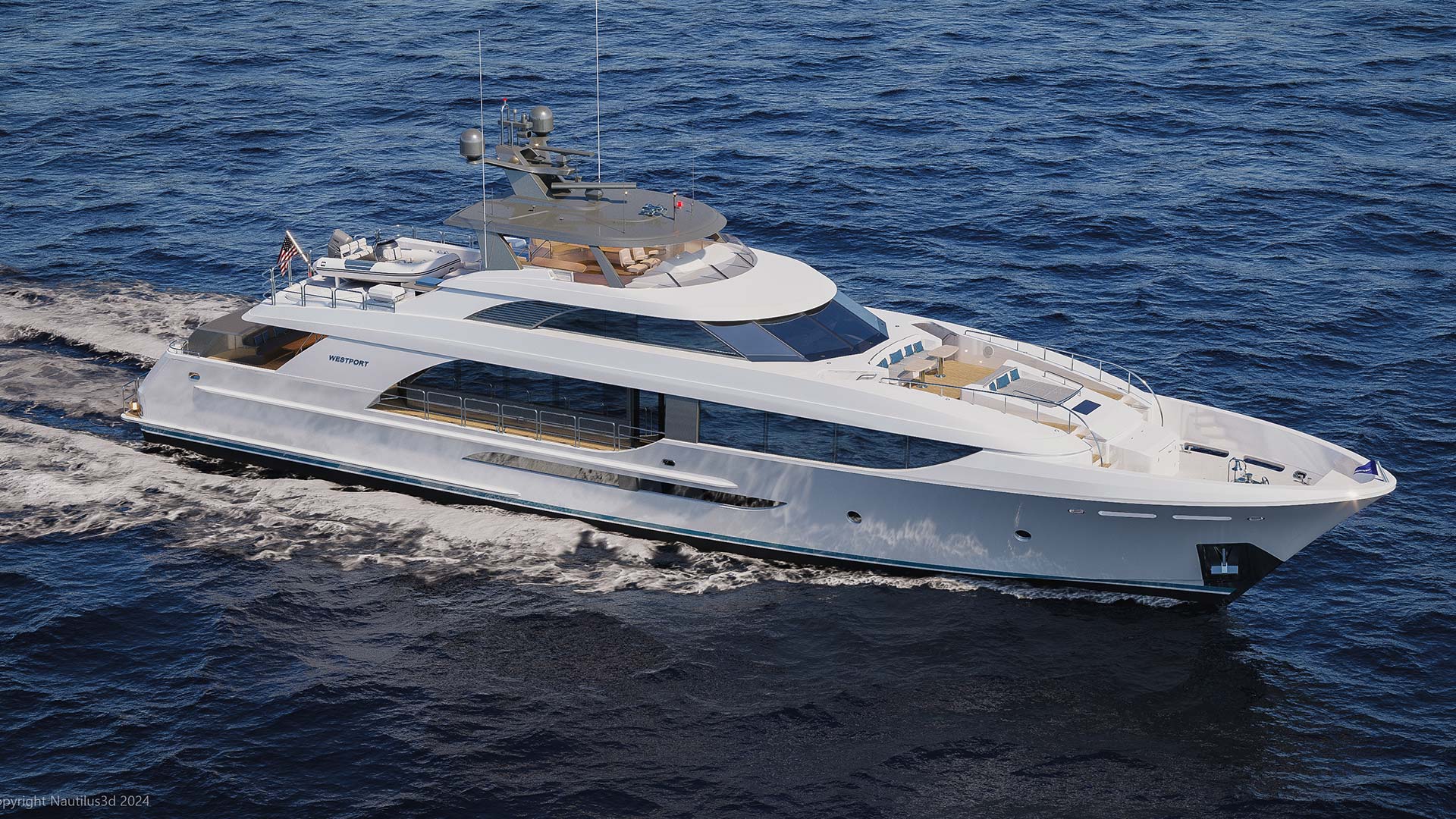

Westport W135 | 41m Raised Pilothouse

A Next-Generation Motoryacht Design • The Enhanced ‘Westport 125’

The Westport W135 | 41m offers eloquent proof of Westport’s leadership in the design and construction of exceptional motor yachts… The Enhanced Westport 125.

Westport’s newest motor yacht retains all of the Westport standards of quality yacht construction, finishes and design and advances the use of space and cruising capabilities.

The Westport W135 Raised Pilothouse Motor Yacht has accommodations for up to 10 in the Owner / Guests’ party and 5 – 6 crew inclusive of captain.

Length

134′ 6″ / 40.99 m

Beam

26′ 2″ / 7.98 m

Draft

6′ 1″ / 1.8 m

Height

34’ 0” / 10.3 m

Sleeps

10 Guests

Crew

6 including Captain

Cruising Speed

20 knots

Maximum Speed

25 knots

Staterooms

5 Ensuite Staterooms
Master Suite On Deck

Displacement

Half 395,000 lbs
Full 418,000 lbs

Engines

Twin MTU 16V2000 M97L
2600 hp each

Generators

(2) Northern Lights
M80A13, 80KW

*Measurements Are Approximate. 1/2 Load Displacement. ABS Classed – MCA Compliant.

Accommodations / Staterooms

Up to ten owner and guests in five ensuite staterooms. Crew quarters for up to five including captain, in three staterooms each with private head and shower. All guest staterooms are ensuite (inclusive of bath / head)

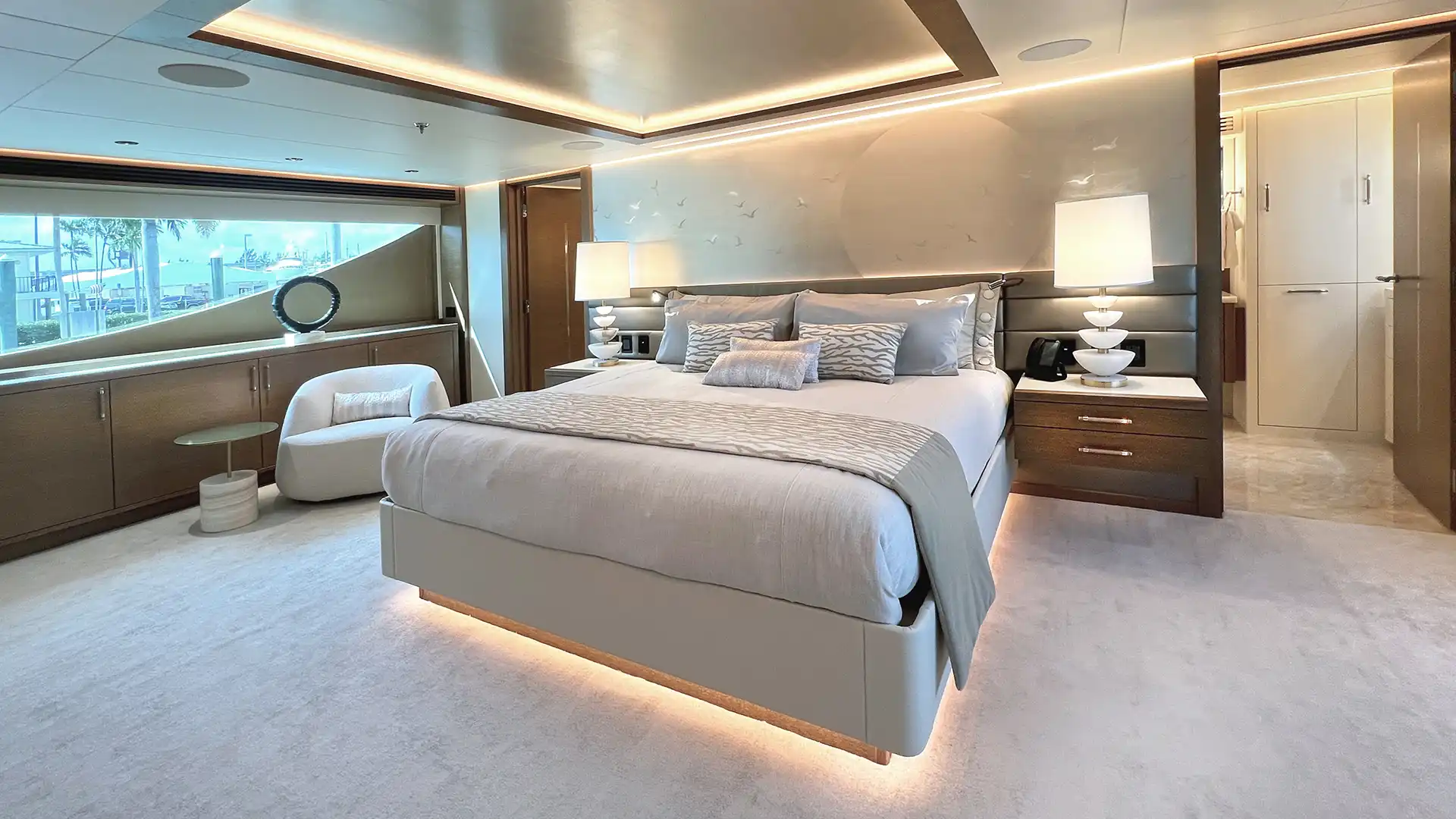

Master Stateroom	Full-width forward on main deck. Center-lined king bed. Separate His & Her bath.
Starboard Guest 1	Lower deck. King bed.
Port Guest 1	Lower deck. King bed.
Starboard Guest 2	Lower deck. Exercise room with upper and lower Pullman twin beds (Starboard forward)
Port Guest 2	Lower deck. Queen bed.
Crew’s Quarters	Three staterooms forward with private Captain’s cabin and aft Engineer’s cabin, each with private bath facilities.
Interior Woods	Premium woods, veneers, accent hardwoods, painted and wrapped surfaces are used in public and guest areas. Crew area cabinetry constructed using Anigre veneers and Beech hardwoods.
Sleeps	10 Owner / Guests and 6 Crew

General Specifications and Overview

Length	134′ 6″ / 40.99 meters
Beam	26′ 2″ / 7.98 meters
Draft	6′ / 1.8 meters
Height	34′ / 10.3 meters
Hull Designer	Westport Yachts
Exterior Designer	Westport Yachts
Interior Designer	Westport Yachts – Customer ‘s Choice of Soft Coverings and Accent Items
Cruise Speed	20 Knots
Max Speed	25 Knots
Main Engines	Twin MTU 16V2000 M97L / 2600 hp each @ 2450 Max RPM
Gear Boxes	ZF 5050A 2.962:1 Reduction Gears
Electrical	12/24 DC & 208 volt AC/3 phase/60 Hz
Generators	(2) Northern Lights M80A13, 80KW
Fuel	7,000 gals / 26,498 ltrs
Water	1,300 gals / 4,921 ltrs
Displacement	Full – 418,000 lbs \| Half- 395,000 lbs \| Light – 340,000 lbs
Tonnage	333 (ITC) / 254 (US GRT)

Systems. Mechanical & Deck Info

Air Conditioning	30 ton / 4 compressor HVAC temp & humidity systems
Watermakers	2 x Reverse osmosis type 3,600 gpd total from sea water; 5,200 gpd total from dock water
Gyro Stabilizers	2 x Seakeeper Model 35 – installed on centerline in lazarette
Satellite Phone	KVH VSAT & Iridium
High-speed Internet	Starlink
Wi-Fi Access	Throughout
Audio/Video Control	AV over IP system provides a variety of entertainment sources throughout the vessel. Depending on the room type you will find Hi-Definition displays, surround sound speakers and subwoofers, along with iPads and hand held remotes for control.
Fin Stabilizers	Naiad model 525 / 19 sq ft w/ hydraulic noise & vibration suppressors
Satellite TV	KVH TracVision HD11
Radars	2 Furuno FAR2018MK2 X-Band radars with 6’ open array, 96 NM range
Nav Software	Nobeltec TZ Professional chart plotting
Sound Attenuation	Acoustic insulation
Wind, Depth & Speed	Airmar/Maretron DSM410/NMEA 2000
Washer / Dryer	2 Combo Miele
Steering Controls	Pilothouse, Flybridge, Wing Stations
MSD	Headhunter
Heads	Headhunter
Waste Water	1,050 gals
Gasoline Fuel	100 gals
New Lube Oil	58 gals
Waste Oil	58 gals
CCTV	8 camera
Internal Com	15 station VOIP
Wireless Access	Throughout
Fire Hydrant	5 Station + aux pump
Fire Suppression	Clean agent system in Engine Room, HI-FOG in accommodation and public areas
Monitoring	VIC2 proprietary Westport system
Crew Mess	System monitors
Bow Thruster	16″ ABT unit with dual counter-rotating propellers / 75 HP electric
Thru Hulls	Bronze
Props	Custom five-blade propellers
Prop Shafts	4½ inch diameter Aquamet 22HS
Rudders	Wake adapted cast bronze foil-shape rudders with 5 1⁄2” Aquamet 22HS or equal stainless steel stocks
Stern Thruster	16” ABT unit with dual counter-rotating propellers, 40 hp electric
Struts	Nibral cast wake adaptive I struts
Boat Deck Crane (davit)	3,300 lb capacity
Foredeck davit	Nautical Structures 1,100 pound load capacity
Windlass	2 x Maxwell VWC6000
Tender	15′ RIB w/ 70 HP Outboard
Anchors	(2) 530 lbs – “Poole” style – stainless.
Chain	(1) 250 ‘ (1) 350’ 5/8″ Chain
Life Rafts	2 x 16 Man
Life Preservers	18 Adult / 6 Child
Anchor Plates & Pockets	Polished stainless
Exterior Finishes	Hull and superstructure are finished in Awlgrip “Snow White” high-gloss urethane paint. Superstructure features are finished in Awlgrip black metallic paint. Boot Stripe is finished in Awlgrip black high-gloss urethane paint. Hull bottom coating is black Sea Hawk anti-fouling paint over an epoxy barrier coat.
Windows	Frameless, toughened, and laminated glass.

Specs PDF

Brochure Pending

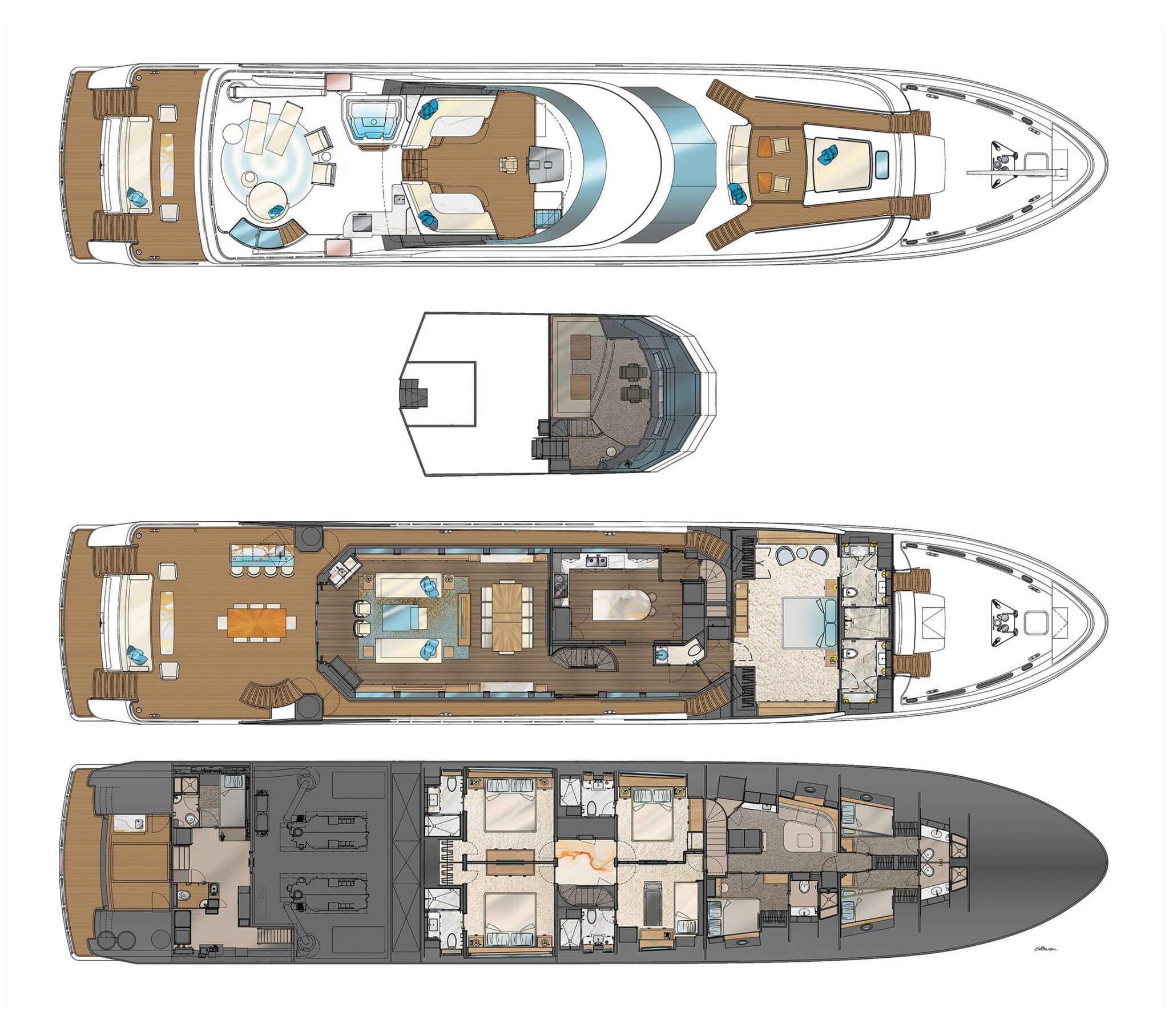

Deck Plans

A Raised Pilothouse Motoryacht Design With Ample Beam for Equal Comforts Inside and Out

Featuring a full-width Master stateroom on deck forward with his-and-her baths and wardrobes. Four (4) ensuite Guest staterooms with choice of queens or twins are privately entered from the lower deck Midship Foyer; Exercise Room may be converted from one of the guest staterooms.

ABS-classed Westport W135 has a long list of premium standard features that ensure complete enjoyment. Westport continues to elevate the bar.
