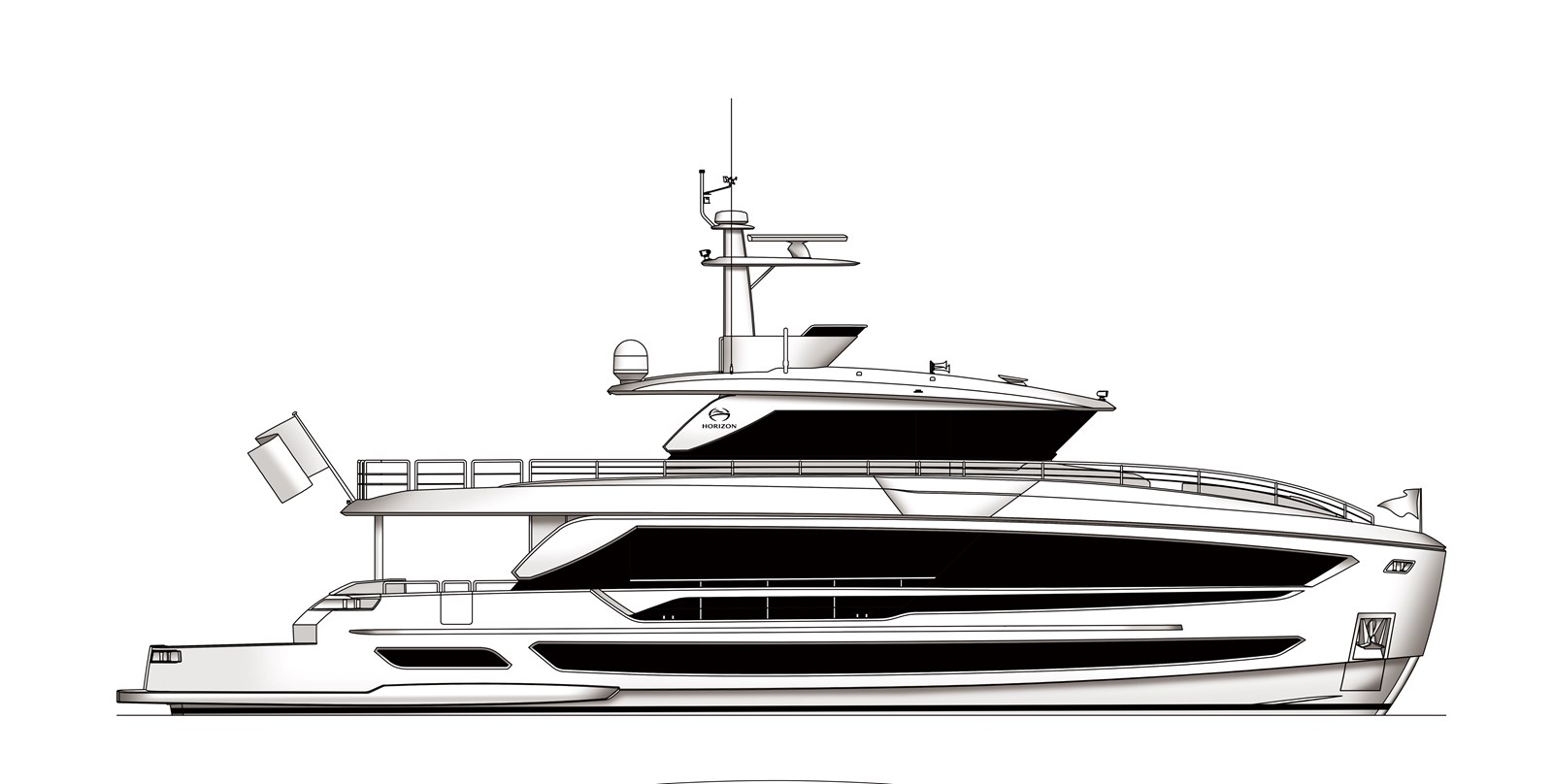

Horizon FD85s - 2025 84' 6" HORIZON YACHT Horizon FD85s-618 / WINTER 2026
Fort Lauderdale Florida United States
Price on Application

White gel coat finish

One-piece hull and superstructure utilizing SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers

Hull, deck & superstructure built with licensed process SCRIMP™ for improved strength and less weight

Hybrid design hull bottom with sandwich construction and solid fiberglass High-density Divinycell or equivalent foam cored hull sides, decks & superstructure

Stringers with high-density foam coring

Interior structural components are all properly bonded to the hull

Strong collision bulkhead for extra safety

International brand anti-fouling bottom paint w/ anti-osmosis treatment

PropSpeed/PropGold metal paint for underwater appendages

Tunnels for reduced draft

High Performance Piercing Bow (HPPB) with S/S protection plates

Teak aft deck, teak steps

(x2) ACCO 300ft high tensile 1/2” anchor chains

(x2) 90kg S/S anchors

(x2) Maxwell VWC 3500 windlass

Frameless windows, slightly tinted tempered laminated Low-E glass for windshield

Frameless windows, tinted tempered laminated glass for side windows

Foredeck accessed from stbd. staircase/walk around on the main deck

Foredeck built-in U-shaped seating w/ sliding tables

Foredeck sun pad w/ drink holders

Sunshades for bow seating, per layout

Freshwater & seawater anchor chain washdown system

(x2) Maxwell VC2500 electrical rope capstans on aft deck

(x2) Chain counters in pilothouse

(x2) Bulwark side doors close to the aft deck for boarding

Wind/weather door on each side of the aft deck leading forward to the side decks

MarQuipt 7-step side boarding sea stair

32" electrical flip-down TV to the aft deck

Non-skid deck

Helm bench

Radar arch w/ antenna bracket

Automatic carbon ladder with sliding hatch

Compact helm station (s/s steering wheel, carbon fiber dashboard panel, engine controls, engine start/stop, engine displays, a MFD 8612 12" display, autopilot, a repeater (Marin Instrument), VHF handsets, control of bow and stern thrusters, magnetic compass, an air horn button, cup holder)

Teak Cockpit and swim platform

Storage under the floor

Two transom doors on the aft coaming

Convertible swim-platform

Eskimo fish box ice system & light-up baitwell

Enclosed skylounge with forward helm station, incl. (2) helm chairs, aft L-shaped settee, and day head, 43” electrical fold-up TV, and custom two-level bar with 3 bar stools, sink, refrigerator, and icemaker

Custom-designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie Supersport magnetic compass, surveillance camera system, bilge pump panel & navigational lights

Walk-around bridge design — PORT side bridge leads forward to bow deck

Hydraulic Steelhead davit ES2500 (1130kg/2,500lb)

Boat deck w/ L-shaped seating, wet bar w/ sink, refrigerator, and icemaker, 24” Hi-Lo propane BBQ,

and storage

Twin MTU 10V2000 1,600hp

Side Power SPS93/VF1650 stabilizers

Side Power SH550 bow thruster + SH550 stern thruster

Zipwake interceptor system

Engine load distributed through flexible mountings on

S/S engine bed bonded to FRP hull girder

Engine alarm system as per engine standard

High-performance S-class 5-blade propellers

Bronze struts w/ backing plates

Shaft and Rudder packing glands w/ Tides Marine dripless seals or equivalent

Tethered remote handheld controller (w/ throttles, gears & thrusters) with plug on cockpit & pilothouse

Hypro Marine power steering system

Underwater exhaust system for engines w/ bypass mufflers

The engine room is cleanly designed with a lightweight honeycomb floor

Heavy-duty Insulated engine room door

S/S overhead grab rail on each side of the engine

Anti-noise treatment to exhaust system

Delta-T engine room demisters

GFI protection for all AC outlets in exterior, heads, galley and engine room

Electrolysis bonding system

Cathodic protection with zinc anodes for shafts, struts, etc.

LED lighting system throughout interior & exterior

(x6) Underwater lights

(x2) Onan Generators 29kW (60Hz) with sound shield

Maretron monitoring and control system

Shore power connection with (2) 100Amp ISO boost transformers & (x2) 100Amp Cablemasters & (x2)

100Amp shore power plugs

(x2) LED searchlights

Pre-wired for LED boat name on stern & PORT & STBD skylounge sides

Sonos stereo system

Pre-wired for wireless yacht controller

2,700 US gal (10,220 L) fuel tanks w/ sight & electrical gauges

(x2) Racor 500 MA fuel filters, one on each generator

(x2) Electric fuel transfer pumps

Fuel polishing system (210GPH)

400 US gal (1520 L) FRP water tank

(x2) 20 US gal water heaters

High-volume AC freshwater pressure pump & backup DC pump

Spot Zero fully automatic watermaker (Spot Zero SeaXchange XTC II 1200 & Spot Zero ZTC II 2000)

Charcoal filters are plumbed into the freshwater line: shore water inlet and galley

Hot water circulation pump

Marine Air Smart Start chilled water conditioning system

Tecma toilet system

100 US gal holding tank & deck fitting for dockside pump-out

Sump pump system for grey water

Electric level indicators for holding tank

Headhunter sanitary treatment system

Electric bilge pump

High water level bilge alarm

Bilge exhaust ventilation fans

Fire insulation in the engine room

Fire-resistant treatment for pipe penetrations

Automatic fire damper system

(x4) Portable fire extinguishers

Integrated fire alarm system in pilothouse, with heat or smoke detector in each cabin

Honeywell dehumidification system (Total 4 units)

Guest accommodations include on-deck master stateroom, FWD VIP stateroom, PORT & STBD VIP staterooms, all ensuite

Aft crew quarter w/ 2 crew cabins (one captain, one crew cabin, w/ one ensuite), with access from STBD side Salon

Laundry room w/ washer/dryer, ironing board, and storage

Customized interior package for interior décor & lighting

Full set of Wedgwood (GIO) galley tableware for 10, including dish holders, pot/pans, dishes, plates, knives, forks, glasses, etc.

Stacked washer/dryer in the Crew quarter

Extra set of bed sheets for all guest cabins, including crews

3-panel manual sliding salon door

Full-height windows in the main salon

Electric single-treatment curtains

Dayhead in main salon aft

L-shaped sofa & armchair w/ a coffee table

Custom area rug

PORT side buffet cabinet behind sofa

Convertible folding dining table & chairs, per layout

Breakfast bar design

55" TV, fold down from ceiling

Enclosed galley w/ Hi-Lo blind

Professional galley + extensive storage per layout

Full height Sub-Zero freezer + Full height Sub-Zero refrigerator

Miele cooktop, range hood, oven, microwave & dishwasher

Wine cooler

(1) opening porthole

King bed w/ storage drawers, nightstands, and safe

Ensuite head w/sink, rain shower & toilet

Chest drawers on two sides

Electric roman shades

(x3) Opening portholes

55" TV

Escape hatch in Master with ladder

(2) Twin beds, 1 w/ sliding function

Two hanging lockers, port & starboard

Ensuite head w/ shower, sink & toilet

32” LED TV

Queen bed w/ nightstands

Large hanging closet

Ensuite head w/ sink, shower & toilet

32" LED TV

Escape hatch up to salon w/ ladder from PORT VIP stateroom

Port Captain’s Cabin w/ double bed, hanging locker, & storage

STBD crew cabin w/ twin bunks, hanging locker

Ensuite head w/ sink, shower & toilet

Crew area w/ stove top, Miele washer/dryer, refrigerator/freezer, conventional microwave

Storage lockers, per layout

Hi-Lo privacy screen to enclose

Pre-wired SAT TV & SAT phone

Starlink Maritime flat high performance satellite internet kit

4G/5G Cellular router system with WiFi on board

Exterior connector for shore phone and cable TV

Full Garmin navigational system includes:

(x1) Garmin GMR™ 1236 xHD3 Open Array Radar

(x1) Garmin Fantom 24x Dome Radar

(x1) Garmin GSD™ 25 Premium Sonar Fish Finder Module

(4) Garmin GPSMAP 9222 22" multifunction displays

Garmin GPS

Garmin Autopilot system

Garmin Wind / Speed / Temp / Depth transducer

Garmin VHF with
