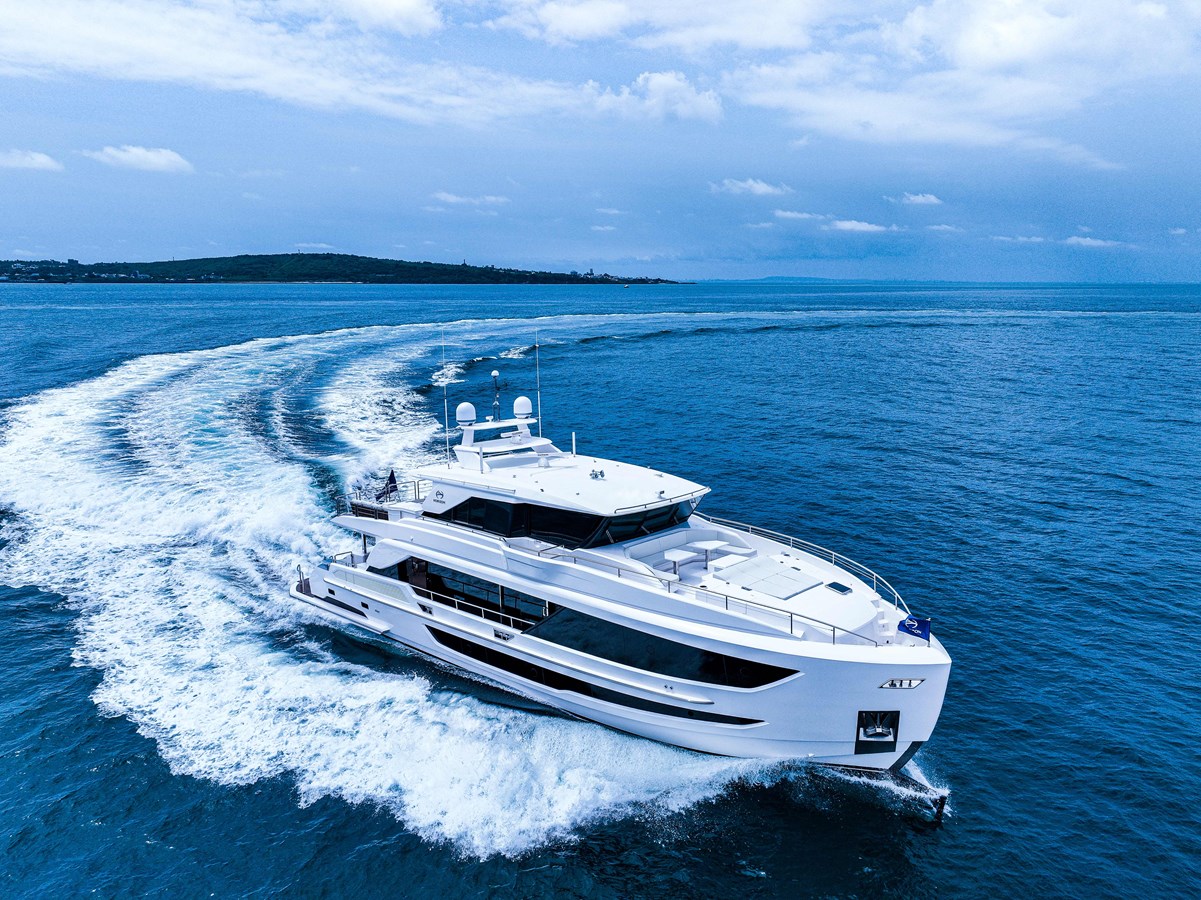

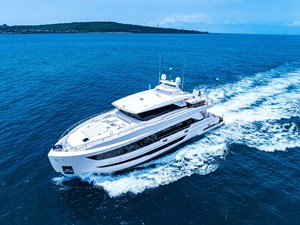

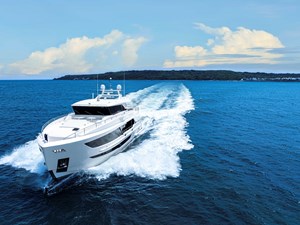

Horizon FD90 - 2025 90' HORIZON YACHTS Horizon FD90-234 / AVAIABLE FLIBS 2025
Fort Lauderdale Florida United States
Price on Application

ABS/DNV type-approved fiber/resin & sandwich core material applied

White gelcoat finish for hull above water line,exterior decks, and furniture

One-piece hull and superstructure utilizing SCRIMPTM technology with Horizon patented 6Dinfusion, incl. longitudinal and transverse stingers

Hull, deck & superstructure are built with licensed process SCRIMPTM for improved strength and less weight

Hybrid design hull bottom with sandwich construction and solid fiberglass

High-density Divinycell or equivalent foam cored hull sides, decks, and superstructure

Stringers with high-density foam coring

Interior structural components are all properly bonded to the hull

Strong collision bulkhead structure for extra safety

International anti-fouling bottom paint with anti-osmosis treatment

PropSpeed/PropGold metal paint for underwater appendages

Tunnels for reduced draft

High Performance Piercing Bow (HPPB) with S/S protection plates

Upper deck with bump out design at PORT and STBD side

Asymmetrical open-skylounge design (STBD side wide body, incl. a non-skid ledge and grab rail above

Teak aft deck, teak swim platform, teak open skylounge and teak steps to upper deck and swim platform. Non-skid for the rest

FRP cap rail

Maxwell VWC3500 vertical hydraulic anchor winches (x2) with local foot switches and remote

Maxwell VC2500 electrical rope capstan on aft deck (x2)

ACCO 300ft High tensile 1/2” anchor chains (x2)

100 Kg S/S anchors (x2)

S/S rollers (x2) and chain stopper

Chain counter (x2, one per windlass) at pilothouse

Heavy-duty 316 S/S cleats and fairlead with rollers

Aft deck corner hawsers (x2)

Bulwarks with flush-mounted courtesy lights

Bulwark side doors (x2) at aft deck for boarding

MarQuipt 7-step aluminum side boarding sea stair (incl. FRP storage box)

Freshwater/seawater anchor chain washdown system by manual operation

1-3/4” handrail with 1-1/2” S/S stanchions and steel cable around the entire boat

S/S flagpole at bow

Standard lines and ProStock fenders PF7 (x4) & PF36x48 (x1), incl. Horizon logo covers

Portuguese bridge with sofa seats as per the layout

Foredeck sunbathing cushion with cup holders and pop-up lights (x2)

One hidden sink to the FWD PORT sidewalk

Frameless windows, slightly tinted tempered laminated Low-E glass for the windshield

Frameless windows, tinted tempered laminated glass for side windows

Stairs from aft deck to swim platform with S/S gate doors and handrails

Salon local-made S/S electric sliding entrance door

Deckhouse sliding side doors with inflatable seal around door frame (x2, one at each side)

A wind door on each side of the aft deck to its side walkway

Aft deck full set seating (incl. a Hi-Lo & slidable table with two leaves, a rear sofa with backrest and side countertop)

Aft deck bar with a sink, a Vitrifrigo refrigerator, and an ice maker (C85IXD4X & IMHYDIXN1-X)

One integrated stair from the aft deck to the upper deck

Hydraulic Hi-Lo swim platform with a function as a tender lift to max 2500 lbs /1130 kg

Two pop-up cleats on the Hi-Lo swim platform

Boat hooks (x2)

Built-in shower with hot/cold water above the swim platform

One extractable or foldable swim ladder

Sun awning to Foredeck & upper deck (total 2 sets)

Rub rail around hull sides

S/S portholes (incl. two openable portholes in the master stateroom and one in galley)

Exterior LED step lights

Two 2” Removable corner rails on the swim platform (with extra 4 sockets on fixed platform)

Prewire LED boat name on PORT, STBD, and stern (3 sets, max. 8 letters/set)

Doors to exterior area with screen if applicable (except curved door, L-shaped hatch door, and pantograph door)

Non-skid floor

Hydraulic stern door with a pantograph door in the middle

Storage as per layout

A set of Miele washer and dryer (WXF660, TXD160WP)

OPEN SKYLOUNGE

Custom asymmetric open skylounge with a PORT two-level bar (incl. 4 stools, a sink, a Vitrifrigo C85IXD4X-1 refrigerator & IMHYDIXN1-X ice maker, and a SUMMIT SCR611GLOSHLHD wine cooler) and a STBD U-shaped seat with a table as per the layout

Teak floor

Pre-wire for future fans installing at the open skylounge ceiling

Hatch on the hardtop with a ship loose retractable ladder

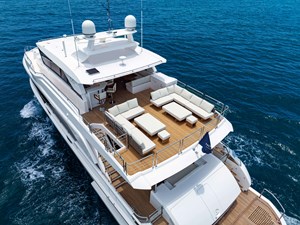

BOAT DECK

Teak floor (excl. side walkways)

Upper deck arrangement as per layout:

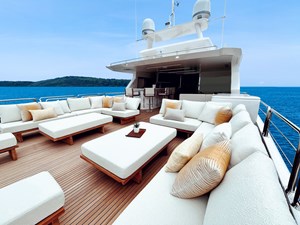

1 ) L-shaped sofa (x2) with side tables,

2 ) Pre-wire & pre-engineer with structure reinforcement for a davit (2500 lbs) and hot tub (JNJ Spa-543) to install in the future

Andari/Trend/4 Spaces/Fabrica fabrics for exterior cushions and sunpad

Stamoid covers (“Smart 1” or equivalent, White color) for upper deck loose furniture, helm seats, aft deck seats, and foredeck sunpads and seats

One hidden Propane 24" BBQ with manual Hi-Lo

Oversized drains with strainers on each corner of the upper deck and internal overboard drains

Radar arch with antenna bracket

Tokai Sanshin LED search lights (x2)

Lumitec flooding lights (x4; 2 for mast and 2 for upper deck)

Chrome-plated Buell air horns on top of the radar arch

S/S flagpole at stern

LED warm white lights for Horizon logo on PORT & STBD side

8-person life raft with bracket (A pack, 2 units)

Twin diesel engines with reduction gears

Live SAE-C PTO on gearboxes for thrusters/windlass & stabilizer power

SAE-A PTO on engines for hydraulic steering gear

Seatorque shaft system (incl. Seatorque Bolt On Shaft System, "BOSS", model no. M4B: AQ22HS s/s shaft, Cardan shaft, QuicKutter line cutters)

High-performance VEEM Superyacht 6-blade propellers

Bronze struts with backing plates

Rudder packing glands with Tides Marine dripless seals

ZF Mathers engine controls with chrome control head at helm (each) station

One remote handheld control (with throttles, gears, and thrusters) with two plugs (one at the aft deck and one in the pilothouse)

Yacht controller (Supremo, STL wireless control, incl. acceleration, thrusters, and windlass buttons, and digital cone antenna)

FRP foil balanced blade rudder with S/S rudder stock (x2)

Hypro power steering system

S/S emergency tiller in rudder cabin

24” S/S steering wheel(s)

Underwater exhaust system for engines with bypass mufflers

Side-Power hydraulic stabilizer system SPS93B

VF1650 (1.65 square meters) with “At Anchor” function

Side-Power hydraulic bow thruster SH550 (550 kg) and stern thruster SH420 (420 kg)

Zipwake interceptor system

GENERAL DESCRIPTION

Marine-grade pipes applied throughout the boat

Color-coded piping system for easy identification

Engine room strainer plumbing with crossover line, freshwater flush, and an extra custom cap

Prewire and pre-plumb for a diving compressor

FUEL OIL SYSTEM

Fuel tanks with sight & electric gauges and capacity specified in Principal Dimension above

ISO grade fuel hose through the entire system

Dual Racor 75/1000 MA fuel filters/water separator for each engine

Racor 500 MA fuel filters (x2), one on each generator

Oberdorfer electric fuel transfer pumps (x2)

Oil change pump system for engines, gears, and generators

Reverso FPS210 fuel polishing system

FRESHWATER SYSTEM

FRP water tank, capacity specified in Principal Dimension above

Fresh water hose bibbs on foredeck, aft deck, and upper deck

30-gal water heaters (x2)

High-volume Headhunter AC freshwater pressure pump and one DC pump for backup

Spot Zero watermaker (SeaXchange XTCII 1800 & ZTC II 2000)

Freshwater outlet & hose for filling the engine and generator expansion tanks

Charcoal filters are plumbed into the freshwater line: shore water inlet and galley

Hot water circulation pump

AIR CONDITIONING SYSTEM

Marine Air Dometic Smart Start chilled water air conditioning system

Air handlers for interior, incl. engine room (18K BTU, incl. controller)

Honeywell dehumidification system (Honeywell DR65A3000 x 5 units, including T10 Pro smart thermostat control panel per unit)

One backup Side Power seawater cooling pump for stabilizer

Ship loose a backup air conditioning seawater circulation pump

SANITARY SYSTEM

Headhunter and Tecma toilet system

200-gal holding tank with deck fitting for dockside pump out

100-gal sump tank with pump for each shower & washer drainage area

Headhunter sanitary treatment system (TW-HMX 6001LP)

Electric level indicators for holding tank and sump tank

BILGE WATER SYSTEM

Electric Rule Bilge Pumps

Manual bilge pumps (x2) in engine room and forward staterooms

High water level bilge alarm

Bilge exhaust ventilation fans

Deck wash-down pump with outlets at chain lockers and transom

FIRE SAFETY SYSTEM

Fire insulation in the engine room

Fire-resistant treatment for pipe penetrations

Fixed fire extinguisher for the engine room with a remote pull station

Automatic/manual shutdown system

Automatic fire damper system

Portable fire extinguishers (x5)

Ship loose fire blankets (x3)

Integrated fire alarm system in pilothouse, with CO and smoke detector in accommodation space, heat detector in galley, and Engine Room

GENERAL DESCRIPTION

Color-coded wiring for easy identification

AC & DC main electric panel with circuit breakers

Sub-panel design with circuit breakers in each zone for electrical distribution

Emergency power package & lighting system

AC volt receptacles located throughout, including the engine room

GFI protection for all AC outlets in exterior, heads, galley, and engine room

Fiberglass water/exhaust separator for generators

Electrolysis bonding system

Cathodic protection with zinc anodes for shafts, struts, etc

Indirect lighting under the valance in the salon, staterooms, open-skylounge, and galley

Dimmer system for LED ceiling lights on aft deck and open-skylounge

Dimmer system for LED ceiling lights in salon, pilothouse, master, and VIP staterooms

Italian Vimar outlets & switches for lighting system

Motion detection light at the guest foyer close to staircase

Underwater lights (x8)

Pre-wire & pre-engineer for FLIR M364C night vision future installation

AC/DC MAIN POWER SYSTEM

AC electrical system: 240V/120V, Single-Phase 3-Wire, 60Hz

255 Ah 12V AGM start batteries (x4) for engines/generators with battery chargers (x2)

210 Ah AGM batteries(x8) for ship‘s DC 24V service power with a combined inverter/charger (x2)

210 Ah emergency batteries(x2) above main deck with a dedicated independent battery charger (x1)

All batteries are enclosed with proper fixtures

Ignition-protected battery switch

Octoplex multiplexing power distribution system

Maretron monitoring and control system

SHORE POWER SYSTEM

Glendinning shore power Cablemasters (x2)

100Amp with 75’ power cable each

Shore power connection with 100Amp ISO boost polarization transformer and galvanic isolator (x2)

Shore power 100Amp plug (x2) and 100Amp bow inlet (x2)

Guest accommodations include an on-deck master stateroom, fwd. VIP stateroom, stbd. VIP stateroom, port VIP stateroom, & convertible laundry room, all ensuite

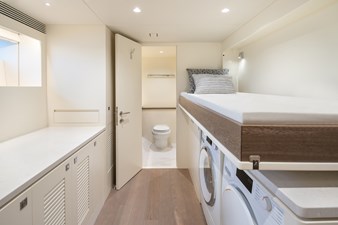

Convertible laundry room includes: Pullman bed, hanging lockers, ensuite head w/ sink, shower, and toilet, set of Miele washer and dryer, ironing board & linen locker

Built-in ironing board
Crew area has 2 crew cabins, full head w/ access from aft deck
Main wood: Washed Wenge
Flooring: European Oak Brushed Grey Sand Varnished flooring in salon, guest foyer & pilot house; carpet flooring in guest staterooms
and Cambria Weybourne flooring in Master head, guest heads & day heads
Customized interior package for interior décor & lighting
Full set of Wedgwood galley tableware for 10, including dish holder, pot/pans, dishes, plates, knives, forks, glasses, etc.
Miele washer/dryer (x2, stacked unit at forward cabin & Garage)

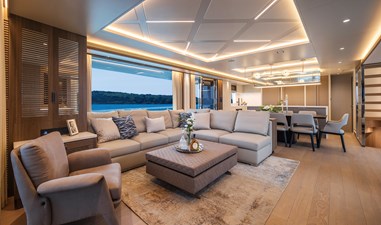

Dayhead in the main salon aft

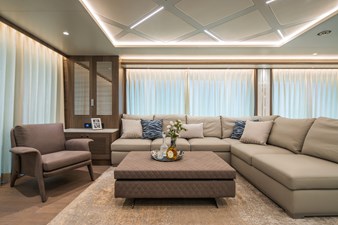

L-shaped sofa w/ coffee table, per layout
(2) Armchairs & side table to stbd
Custom area rug

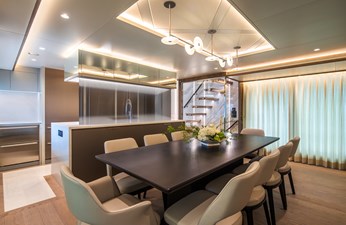

Formal dining table w/ 10 chairs, per layout
Free-standing custom storage cabinet
Custom pendant light over dining

Custom wine glass locker to port
Electric curtains
Sliding doors to both stbd and port of main salon
55" QLED 4K TV with SONOS Entertainment Set, subwoofer & soundbar

S/S sink per layout

A InSinkErator Garbage disposal (Contractor 333, 3/4 HP)

A Sub-Zero full-height 30" freezer (DET3050FI-LH) and a 30” refrigerator (DET3050R-RH) in the galley

Sub-Zero drawer-type freezer (ID-24F) under the galley counter

Miele electric induction cooktop with exhaust blower above (KM 6365)

Miele dishwasher (G 7916 Sci)

Miele oven (H2880 BP) and a BOSCH microwave oven (HMVP053U)

GE Trash compactor (UCG1520NSS)

Stove S/S pot & pane holders over the cooktop in the galley

Full set of Wedgwood (GIO) galley tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives, forks, glasses, etc.

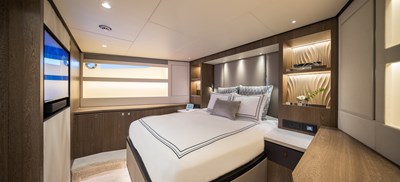

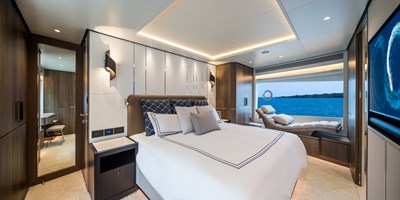

Ensuite head w/sink, rain shower & toilet
Electric Roman shades
(2) Opening portholes on port & stbd. sides
50" TV
Escape hatch in the Master with ladder

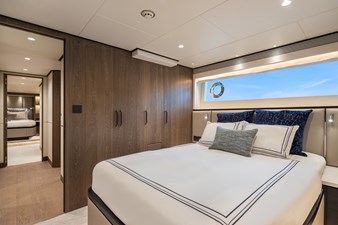

Ensuite head w/ sink, shower & toilet
43" TV

Ensuite head w/ sink, shower & toilet
43" TV
Escape hatch up to salon with ladder to Port

Hanging lockers
Ensuite head w/ sink, shower & toilet
Dyson vacuum
Washer, dryer & linen locker
Built-in ironing board

Pullman in the captain's cabin

Rear accommodation arrangement as per layout, incl. aft quarters, efficiency galley (with KENYON two-burner cook top, a WOLF MC24 convection microwave, a sink, and SUMMIT CP972SSLHD full height fridge & freezer), head and shower, closets, bunks, storage, and A/C

Silver Oak for crew main timber for walls, PVC vinyl floor for cabins, and Hanex ST-303 Volare stone for head floor

Head hardware in Justime collection

SAT TV antenna with a symmetric dummy dome (KVH TracVision UHD7) & prewire for SAT phone with KVH TracNet H60 dummy dome

SAT TV decoder/ receiver (DIRECTV) with RF remote control kit for each TV (x9)

TV antenna on top of radar arch

5G Cellular Router System with Wi-Fi on boardOpen skylounge 43" QLED 4K electric flip-down TV with SONOS amplifier (x1) and FUSION speakers (x2)

Pilothouse SONOS amplifier (x1) and FUSION speakers (x2)

Foredeck SONOS amplifier (x1) and FUSION speakers (x2)

Entertainment Set, subwoofer (x1) and soundbar (x1)

Control 4 system for AV system (incl. following areas: foredeck, open skylounge, upper deck, aft deck, Salon, galley and master stateroom)

Exterior connector for shore phone and cable TV Panasonic PBX Telephones (x5) with intercom features in salon, pilothouse, master stateroom, VIP stateroom, and crew mess; remaining cabins with a telephone outlet

Reserve flexible conduits, power supply, and a breaker for a future Starlink system

Garmin GPS 24xd and MSC 10 Marine Satellite

Compass

Garmin GMR 1236 xHD3 (6-foot/ 12kW/ 96nm) open array radar

Garmin GMR Fantom 54 (4-foot/ 50W/ 2nm) open array radar

Garmin GPSMAP 9224 MFD 24" multifunction displays (x4)

Garmin GRID 20 remote input device (x1)

Garmin GSD™ 25 Premium Sonar Fish Finder Module

Garmin Reactor 40 Autopilot system with Reactor

AP Remote Control

Garmin Wind/ Speed/ Temp transducers

Garmin AIS 800 Class B Transceiver

Garmin VHF (x2) with built-in loudhailer

Maretron MBB300C for connecting to GARMIN network/display

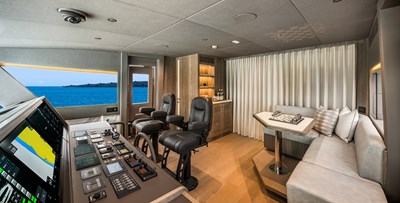

Enclosed pilothouse design with an S/S manual sliding door to open-skylounge with self-lock

Stidd Slimline 500N-MX2 manual pilot chairs (x2)

Integrated instrument panel on helm station with leather counter

L-shaped sofa with a pull-out platform to make sofa into a bed for one person (incl. a table) as per layout

Heavy-duty Speich S/S wipers with wiper wash system

Variable speed control on each windshield wiper

Phifertex Leisure fabric black mesh for windshield

Ritchie magnetic compass at helm

International LED navigation lights (incl. 180 degree Lopolights anchor x2, masthead, stern, PORT and STBD side light, total 6 units)

Full set of engine gauges at the helm

Electric fuel and water level gauges

Monitoring system for importation equipment (bilge pumps, blowers, navigation lights)

Surveillance camera system (TWO PTZ cameras; one at aft deck & one in engine room)

A day head

USB charger (x3)

Chart drawer
