Machinery
Main Engines
Engine Make/Model: Caterpillar 3406c x 2 (365hp each)
Engine Hours: 3065
Gearboxes for main Engines: Twin Disc MG509
Drive: Shaft driven
Speed Consumption per hours Range RPM
Speed: 10 Knots. Consumption /hr:- 70 litre.
Range: 1,700NM @ RPM 1300
Maximum: 11.5 Knots @ 1650 RPM.
Cruising: 10 knots @ 1400 rpm.
Generators & Electricity
Output: 1 x 28KVA (Kohler) 1x 32 KVA (Isuzu)
Generators: Kohler: 28EFK0ZD. Isuzu:4BG1.
Generator Hours: Kohler 1100 hrs. ( New 2023) Isuzu 10100 hrs.
Generator Fuel Consumption: 3LPH 25% load. 8LPH 75% Load. 10LPH 100% Load.
Shore Power: 220 V (Single phase)
Batteries
Main Engine Starting: 4 x Optima 815CCA 12 volt
Generator Starting: 2 x Hankook 1000CA 12volt
Emergency: 2 x Exide 140Amp. 12 volts.
Service: 8 x 6 volt Trojan. 245 Amp
Air Conditioning:
Type: Spilt Domestic units.
- 12,000 btu Galley.
- 12,000 btu fitted to all cabins.
- 24,000 btu fitted to Wheelhouse.
-24,000 btu fitted to Saloon.
Other Machinery
Water maker: Dessalator 150 litre per hours.
Trim Tabs/Stabilizers: Naiad control systems , 4 x Rodriquez mechanical/fins system
Bow Thruster: NA
Steering System: Electro/ Hydraulic.
Fuel Separator & Filtration: NA.
Sewage System: Black water tank.
Fresh Water System: Lowara pressure pump.
Bilge pumps – 2 x Gianneschi – 24Volt / 220 volt pumps
Lube Oil Capacity: NA
Waste Oil Capacity: 500 litres
Communication systems
VHF: Icom IC-M323/ 2 x Handhelds
Cellular Phone System: NA
Intercom: Panasonic

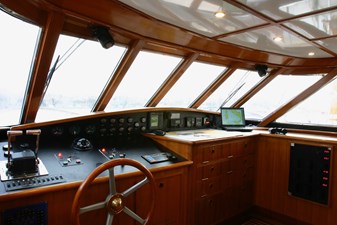

Navigation Systems
Radars: Furuno 1935 (ARPA) Furuno 1623.
Gyrocompass: Furuno Satellite Compass.
Magnetic Compass: Plastimo- Horizon 135.
Auto Pilot: Simrad AP50
Depth Sounder: Furuno FCV 628.
Night Vision: NA
GPS: 1 x Furuno. 1 x Garmin.
Plotter: Euronav Chart system run through PC.
Wind/Speed Log: Windspeed/Alarm – Simrad / repeater Crew Cabin.
Navtex: Furuno NX 300
Entertainment systems
Video Equipment
1 x Philps DVD.
1 x Philps Flat screen TV 32 inch.
Audio Equipment
1 x Denon Amplifier ABRX3000.
1 x surround Bose cube speakers x 4. 1 x Bass module
Speaker zones Main Saloon / Aft Deck.
Galley & Laundry Equipment
Main Galley Equipment
Cooking Equipment: 1 x electric oven (Siemens) / 1 x induction hob (Beko)
Refrigeration/Freezer: 1 x Liebherr full height fridge/ 1 x freezer Hisense.
Dishwasher: 1 x Master Kitchen.
Microwave: Sharp 25Litre.
Crew Galley/Mess Equipment
Cooking Equipment - NA
Refrigeration/Freezer: Panty – Small freezer 1 x Comfee. 31 litre.
Other:
- Smeg Fridge Wheelhouse 82Litre.
- Comfee Fridge Saloon 43 litre.
Additional Galley Equipment
Cooking Equipment :
:Bosch Multitalent 8 mixer
: Kenwood toaster.
: Philips Kettle.
: Various pots/Pans/cooking utensils/cutlery.
: Various plates/serving bowls.
Laundry Equipment
Main Laundry Equipment: Bosch 8KG washer/dryer.
Deck Equipment
Anchor Windlass: Italiawinch 3500w 24 volt DC Windlass – 2 x Chain gipsy drives – 1 x vertical Capstan.
Aft Warping Capstans: 2 x 24volt. 1 x Italiawinch. 1 x Overa.
Anchors: 2 x 80Kg
Anchor Chain: 2 x 120metre x 16mm
Boat Crane and Davits: Sagunetti 600Kg Deck crane x 1.
Passerelle: 3.3metre manual aluminium.
Swimming Platform: Stb Sideladder (Sagunetti)
SECURITY, FIRE FIGHTING & SAFETY
Fire Fighting Equipment
Fire Control System: Pyrogen (Affords Engine room and Lazzerette Protection)
Fire Extinguishers: 12 x Portable
Alarms: Lazarette – Engine-room - Accommodation.
Safety Equipment
Life Rafts: 2 x Ocean Safety 8 Man Solas Pack B.
Life Rings: 2
EPIRBS: 1 x 406 (Kannard)
Flares: 4 x rocket - 6 x handheld – 2 x orange smoke
Medical Equipment: Med Cat C.
