General
Overall length | 16.03 m |
Overall beam | 4.50 m |
Maximum draft (below propellers at full load) | 1.15 m |
Estimated displacement in standard configuration | 22,000 kg |
Fuel tanks (Aluminium) | 2 x 2,000 lt |
Max speed of 44 knots in standard configuration & standard test conditions | 44 kts |
Range at cruising speed of 33kts in standard conditions | 300 nm |
CE Design Category | A |
Fresh water tank (PVC) | 400 lt |
Black water tanks (GRP) | 100 lt |
Grey water tanks (GRP) | 100 lt |
Maximum number of persons on board | 12 |
Safety equipment standards CE | 12 |
Maximum power | 1,700 hp |
Propulsion | Surface drives |
Propeller | Surface piercing 5 blades |
Construction Material
- Hull - Construction on female mould with traditional skin-coat lamination on gelcoat and vacuum technique, vinyl-ester resin and PVC cored sandwich.
- Superstructure - Construction on female mould with traditional skin-coat lamination on gel coat and vacuum technique, vinyl-ester resin and PVC cored sandwich.
- Bulkheads - Structural sandwich laminated using vacuum technique.
- Roll Bar / Hard Top - Carbon fibre with vacuum technique and PVC cored sandwich
Coating
- Hull bottom - Double antifouling application for “high speeds” with anti-osmosis treatment
- Topsides and superstructure - Full Axalta / Awlcraft cycle (epoxy)
- ‘Lucido Diretto’ - topsides and superstructure
- Double anti foul and anti osmosis treatment - hull bottom
General Arrangement
- Owner cabin with (1) one double bed
- Guest cabin with (1) single bed / Galley
- Head with toilet, washbasin and shower
- Lacquered cupboards and bulkheads
Systems
- Generator exhaust with gas/water separation muffler;
- Pump out connection on deck & outboard for black waters – outboard only for gray waters
- Specification of wiring, terminations, electrical panels and earth leak protection compliant to Rina CE certification
- Specification of pipe work, valves and manifolds compliant to Rina CE certification
- Shore power voltage 215V - 235V
- Shore power amperage Max 50 Amp
Exteriors
- Tempered glass windshield (dark)
- Tempered glass skylights (dark)
- Carbon fibre windshield structure (Super Jet Black)
- Exterior wet bar with Corian worktop
- Teak decking with black caulking
- Premium upholstery (Spradling leatherette or Sunbrella fabric)
- Courtesy lighting 2,000K - 3,500K (if applicable)
- Custom AISI 316 gas springs
- Fore tables teak center finish
- Fore tables with electric base
Interiors
- Loro Piana® Passepartout package
- Bulkheads and cupboard in solid RAL lacquer - satin finish
- Besana premium carpeting - silk 18
- Master stateroom ceiling in Dolce leatherette
- Guest stateroom / head ceiling in solid RAL lacquer - satin finish
- Head flooring and top in premium Burmese teak
- Head fittings and faucets with bespoke finish
- LED lighting 2,000K - 3,500K
Entertainment
- Fusion Apollo RA770 receiver
- JL Audio MMR-20-BE remotes (3)
- JL Audio M880 loudspeakers (10) (black or white)
- JL Audio MHD600/4-24V (4)
- Bowers & Wilkins® AM-1 Loudspeakers (2)
Appliances
Electronics
- GARMIN multi function display
- GARMIN marine vhf radio telephone
- GARMIN navpilot (integrated in böning panels)
- GARMIN—integrated heading sensor
- BÖNING custom helm panels package
Technical Equipment / Machinery
- ZF 400A; Gears with trolling valve
- Air Conditioning System Frigomar 18,000btu
- Arneson by Twin Disc ASD 11
- Rolla 5 BLADE Surface Piercing
- Lopolight LED COLREG compliant running lights
Hydraulic Systems and Pumps
- Gianneschi ECOJET 2B 24V P.MAX 3.5 bar or equivalent
- Whale GULPER TOILET PUMP 24v
- Whale GULPER TOILET PUMP 24v
- Gianneschi MP/C801779 or equivalent
Electrical System
- Victron SKYLLA 24V / 100A service battery charger
- Victron BLUE SMART 12V /15A generator battery charger
- Victron SKYLLA 24V / 30A engine battery charger
- Nautik 12V 140 Ah - Dual terminal service batteries (8)
- Nautik 12V 120 Ah - Dual terminal engine batteries (4)
- Nautik 12V 80 Ah - Dual terminal generator battery (1)
Mooring and Anchoring
- Stainless steel chain Caliber 10 mm - Length 75 m
- Cleats In stainless steel
- Fairleads in stainless steel
Safety Equipment
- Portable fire extinguishers 0029 MED 96/98/EC
- Lifebuoys and lifejackets ISO12401CE
- Manually activated fuel shutoffs
Accessories
Awnings
- Soft enclosures (front and sides) (Sunbrella Plus)
Options
GENERAL ARRANGEMENT OPTIONS
- Crew cabin
COATING
- Special order colours and metallic colours
- Bespoke Colour Mix (color matching)
- Painted loudspeakers
- Painted instruments in Super Jet Black
EXTERIORS
- Carbon fibre Hard Top with navigational awnings / soft helm enclosure
- Automated side balconies
- Automated engine room hatch
- Opacmare transformer platform package (black)
- Teak decking on anchor hatch
- Teak decking with white caulking
INTERIORS
- Loro Piana® Summer Interiors (cotton/linen)
- Natural wood veneers (satin finish - excluding cost of materials)
- Loro Piana® Southbury 100% llama wool carpeting
LIGHT DESIGN
- LED underwater lighting (7 lights)
- LED exterior courtesy lighting (32 lights)
- LED interior light design package
ENTERTAINMENT
- Additional 2 x JL Audio M-Series subwoofers (black/white)
- 2 x JL Audio MHD900/5-24V2
- 2 x JL Audio MHD600/4-24V
- Apple® Apple TV 4th Generation
- Bang & Olufsen® BeoVox 2.1 Loudspeakers (black or white)
- Wi-Fi access point with dual sim 4G technology
APPLIANCES
- Additional refrigerator
- Cooktop
ELECTRONICS
- Garmin Radar 4 kW 36 nm (package)
- Garmin FA50 Class B AIS transponder
- Additional VHF antenna
- Böning backup DPU
- Redundant steering indicator
- Redundant fuel monitoring system
TECHNICAL EQUIPMENT / MACHINERY
- MAN i6-850 (625 kW @ 2300RPM) / Twin Disc MGX with QuickShift / ASD11
- Humphree X750 with Automatic List Function
- Side-Power SE 120/215 TC stern thruster
- Red Dot Award Cover (engines)
- CNM Platinum engine finish (RAL 9007)
- Kahlenber air horn
- Additional bollards (2)
- Electronic chain counter
- Direct water pressure connector
- Advanced Joystick System
- Upgraded Thrusters
- Dynamic Positioning Module
AWNINGS
- Premium fore awning with carbon fibre supports
- Premium aft awning with carbon fibre supports
ACCESSORIES
- Carbon fibre premium design swim ladder
- Carbon fiber C1 standup stern shower
- Boffi® hand held premium shower
- Fender kit
- Custom fender covers
BESPOKE
- Metallic / pearl lacquered interiors
EXPORT PACKAGE
- Owner's manual - English version
- Kohler 60Hz - auxiliary generator
- Victron PHOENIX 24/3000 120V 60 Hz
- Isolation transformer
- USA 110v-130v outlets
- Dometic Microchiller 30 - Tropical AC (US model - 30,000 btu)
SERVICES
- Factory Collection
Description

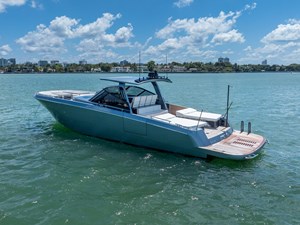

Pura Vida is the latest generation of CNM’s popular 54 Super-sport series of luxury open yachts. Having delivered over 60 hulls since its inception, the builder has perfected this model’s layout and performance. The craftsmanship aboard is unlike anything else in the category, with superyacht-level finishes and interiors by Loro Piana. Notable technological upgrades include joystick controls, a new ultra-smooth transmission, Carbon fiber hardtop, transformer swim platform, and the newest 850HP MAN Engines. Fully transferrable warranties ensure peace of mind for a new owner looking to get into a turn-key virtually new yacht without the wait.
