Sunset 8 - 2024 80' 10" AZIMUT YACHTS
Fort Lauderdale Florida United States
$5,249,000 USD
FULL SPECIFICATIONS

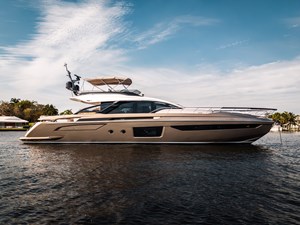

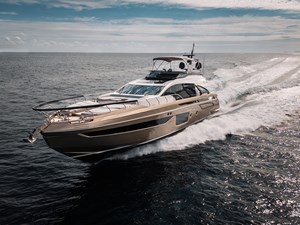

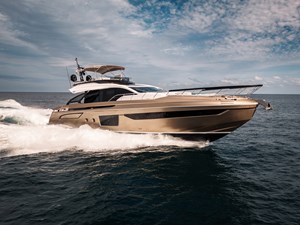

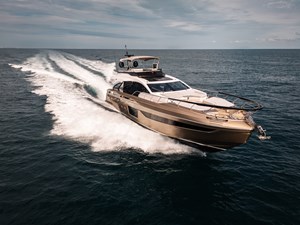

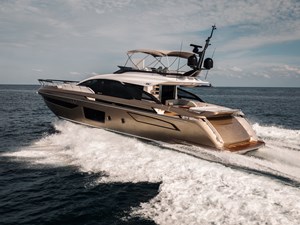

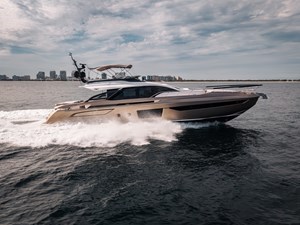

Azimut S8
*Located at the Fort Lauderdale Boat Show*
Brand new never been used yacht
A unique opportunity awaits in this recently completed 2024 Azimut S8. Custom built for a very knowledgeable boater, this S8 has many upgrades and custom designed features.
With a large family in mind for entertaining, the cockpit was custom designed to accommodate 8 guests for alfresco dinning. A foldable table was created not to be intrusive during daily activities. When dinner is served the table opens with 2 folding lengths nearly doubling in length to accommodate all guests. Additionally, the seating and access to the flybridge has been customized to increase space on the aft deck.
Every space aboard this S8 was thoughtfully designed with custom fabrics and details.
The equipment options were carefully selected to maximize enjoyment on the water such as:
- Aft docking station
- Seakeeper
- Upgraded Navigation package
- Tender & Jet ski storage and retrieval
The Azimut S8 is a stunning luxury yacht that combines modern design with cutting-edge technology. With sleek lines and a spacious interior, it offers the perfect balance between elegance and functionality. The yacht features four luxurious cabins, each with its own ensuite bathroom, providing utmost comfort and privacy for guests. The main deck boasts a spacious salon, a dining area, and a fully equipped galley , making it the perfect space for entertaining. On the exterior, the S8 offers ample deck space, including a large sunbathing area, a swimming platform, and a flybridge with a jacuzzi and a bar. Powered by tripe Volvo D13 IPS engines, the S8 delivers impressive performance and fuel efficiency. With its innovative design and attention to detail, the Azimut S8 is truly a masterpiece of modern yacht engineering.
A full list of options are below.
Options
Base and upgraded Options
- Custom Cockpit
- Cockpit docking- maneuvering station
- Extra conduits

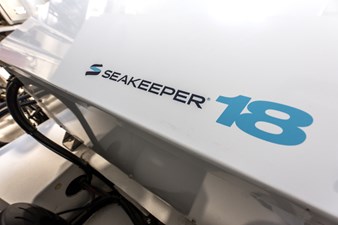

- Seakeeper stabilizer 18
- Naviop upgraded package
- Additional control for electric searchlight
- Additional waterproof socket, inside the storage under stairs to Flybridge
- Additional waterproof socket, inside storage on port step
- Cord reel for motorized shore power
- Aft sunbathing cushions with adjustable backrests
- Backrest for bow sunbathing cushions on flybridge

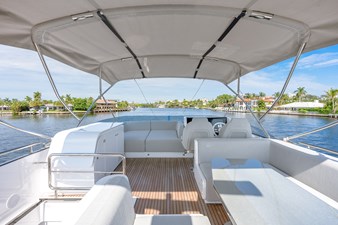

- Bimini on flybridge
- Co-pilot seat on fly
- Cover for garage door with logo
- Electric blackout blind for glass roof in main deck
- Electric searchlight with additional control

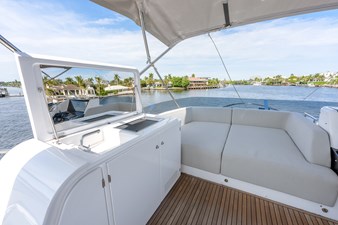

- Flybridge furniture with sink, bbq, and icemaker
- Fresh water connection
- Hatch on flybridge
- Hauling/launching system for jetski
- Hauling/launching system for tender
- Hidden lights on Bow
- Luxury lights package for exteriors
- Maneuvering lights on bow
- Painted bow handrail in island volcanic grey
- Painted domes
- Painted flybridge perimetric
- Profile in island volcanic grey
- Painted radar mast and instruments
- Painted hull and gunwale
- Prop speed on propulsion system
- Shower on aft (removable)
- Sofa on aft flybridge in batyline fabric with hi/lo table
- Convertible in sunbed
- Spotlights on aft flybridge
- Sunshade sail on bow with removable poles for lounging area only
- Sunbathing cushions on bow with adjustable backrests
- Table on bow with carbon finishing top
- Teak on flybridge deck and bow area
- Telescopic gangway
- Underwater lights on sides
- Underwater lights on transom
- Upgrade ext std cushions in batyline fabric
- Watertight hand control for anchor winch

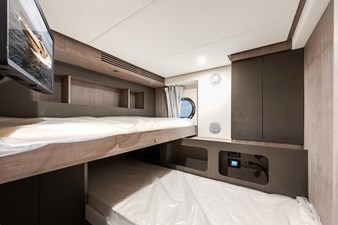

- Additional folding bed in crew cabin
- Additional folding bed in starboard guest cabin
- Additional sockets in salon behind sofa on starboard in salon on port side
TECHNICAL SPECIFICATIONS S8
- GRP non-slip floor
- Plexiglas flybridge screen with stainless steel supports
- Fore sunbed area on port side with removable cushions for outdoors

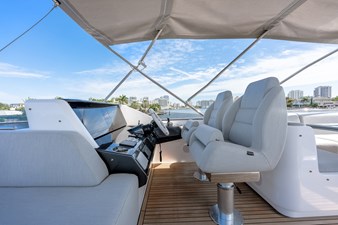

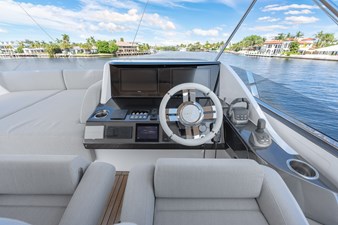

- Control station on starboard side with helm seat
- Flybridge dashboard consisting of: - VOLVO engine display Garmin electronic navigation instruments (from serial no. 014) - Engine throttles - Adjustable steering wheel - communication system VHF - Bow thruster controls - audible alarm controls - Trim tab controls (intruder) built in the engine throttles - 12 V socket - Chain meter counter - monitoring display
- Scuppers
- Light mast
- Compliant navigation lights
- Manual searchlight
- Speakers

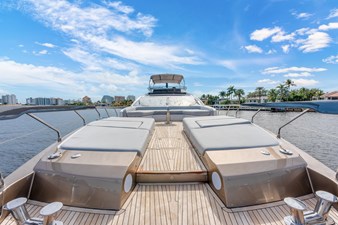

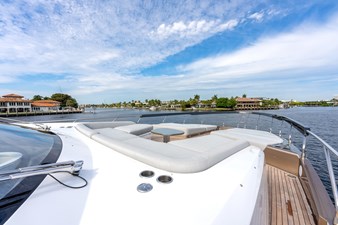

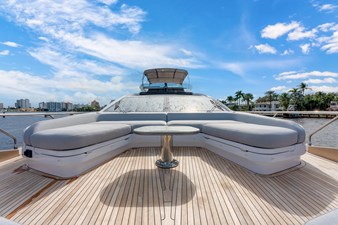

Bow
- One 50 kg (110.2 lb) galvanized steel anchor
- One 100-meter (328'1") galvanized steel chain, diameter 14 mm /0.55 in)
- Maneuver area composed of:
- two T-head cleats
- two stainless steel chocks
- one 3500 W winch
- open winch controls
- One chain locker accessible through watertight hatch, with drainage and enough space to hold four fenders
- Chain washing pump
- Stainless steel anchor line anti-rubbing protections
- One bow hatch
- Two sunbed areas aft of the mooring area, with removable cushions in fabric for outdoors
- One "C" shaped sofa aft of the sunbed area with removable cushions in fabric for outdoors
- Three lockers under the sofa
- Protective cover for cushions and sunbed areas
- Four stainless steel glass racks (next to each sunbed area and at the sides of the sofa)
- Grabrails with upper GRP insert
- Two electric windscreen wipers
- Teak floor, excluding mooring area
- Scuppers
- Speakers

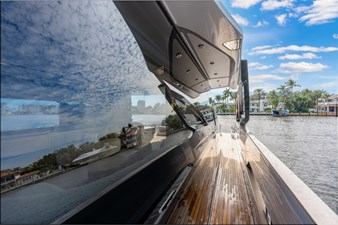

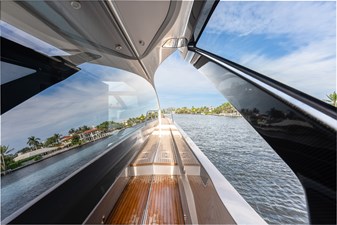

Walk arounds
- One watertight semi-automatic pantograph door, port side fore, to access the steering area
- One watertight manual pantograph door, port side aft, to access the crew area
- Refueling plugs on both walk arounds
- Fresh water filling plug on port walk around
- Black water outlet on starboard walk around
- Rubber rub-rail with knurled stainless steel section
- Teak floor
- Deckhouse side full-height windows in tempered glass, fixed to the GRP structure through gluing
- Aft GRP gunwale and, from amidships forward, with steel stanchions and grabrails
- Stern power with transparent panel to overview cockpit and windows
- LED step-marking lights at the steps
- LED spotlights

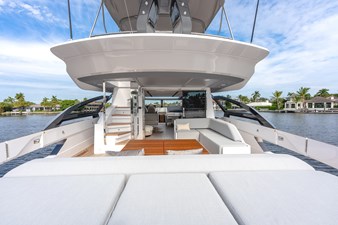

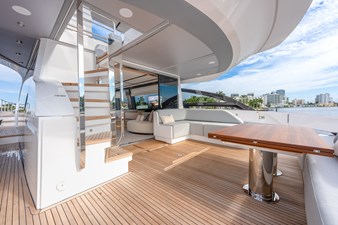

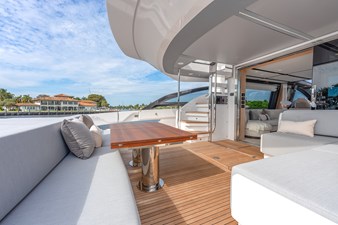

Cockpit
- Access onboard from stern, starboard side
- Two stainless steel aft gates
- Teak floor
- Scuppers
- Mooring stations with: - two T-head cleats - two stainless steel chocks - two 1700 W winches - open winch controls
- Port side ladder to climb to the flybridge (see Sportfly)
- One GRP cockpit cabinet located in front of the ladder and equipped with: - sink built into cabinet with retractable tap - Waste bin
- One GRP "L" shaped sofa with cushions in fabric for outdoors, with cushion covers
- Stern area with sunbed cushions and cockpit sofa divided by backrest, with cushion covers
- Three lockers under the sofa
- Four stainless steel glass racks at the sides of the cockpit sofa, two per side
- LED courtesy lights
- Side LED spotlights and LED bars on ceiling
- Saloon access door in stainless steel, aluminum painted opaque black and tempered glass, composed of three flat panels who of which of the sliding type, opening towards the starboard bulwark
- Utilities and emergency panels inside quick-access lockers
- Speakers

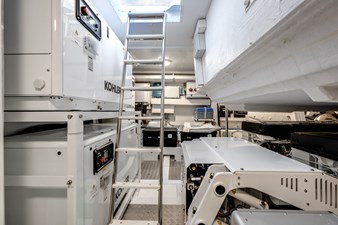

- Engine room access through watertight hatch with teak finish

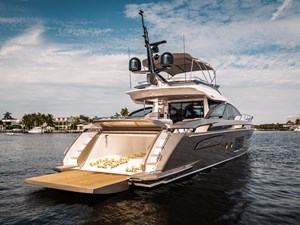

Platform/garage
- Carbon pivoting door to access the garage, size:
- closed: 3270 x 865 mm (128.74 x 34.06 in)
- open: 3270 x 2503 mm (128.74 x 98.54 in)
- rated capacity: 720 kg (1587.3 lb) provided with:
- platform floor in teak
- stern platform floor in teak
- Double staircase (one per bulwark) to access the platform covered in teak
- Manual emergency swimming ladder on starboard side
- Two shore socket lockers, water connection, and shower on port side
- One shore socket locker on starboard side
- Installation of recommended tender and jet-ski:
- tender: Azimut-Pirelli J39 light (OPT see list)
- jet-ski: GTX LIMITED 300 (non-standard option and not included in list)

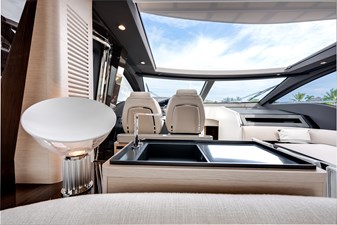

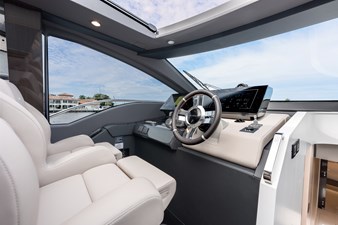

Wheelhouse
Located forward of the saloon on port side, it is accessible through:
- Saloon door (aft)
- Pantograph door on port walk around
The wheelhouse zone includes:
- Helm seat with storage underneath
- Carpeted floor
- Ceiling with a pattern of panels on opaque black background
- Lacquered mullions and opaque black window carters
- LED technology lighting

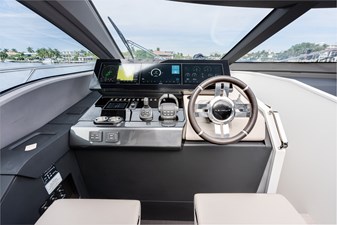

The internal dashboard consists of:
- Engine display
- Raymarine electronic navigation instruments Bronze version (up to serial no. 012)
- Garmin electronic navigation instruments (from serial no. 014)
- Engine throttles
- Adjustable leather-covered steering wheel
- Communication systems (VHF)
- Bow thruster controls
- Audible alarm controls
- Trim tab controls (intruder) built in the engine throttles
- 12 V socket
- Chain meter counter
- Monitoring display
- Magnetic compass
- Adjustable air conditioning outlets

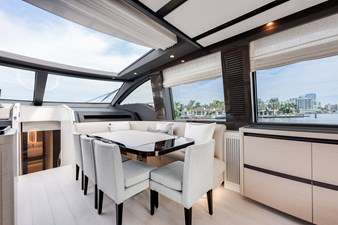

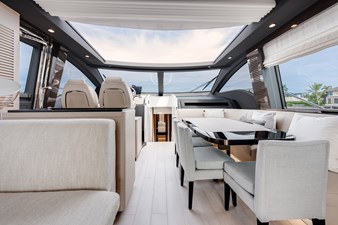

Dining
Located in the fore starboard area of the saloon. It is composed of:
- Carpeted floor
- Fixed table with wooden plane, for eight people
- Eight chairs
- Lighting with Ceiling-mounted recessed LED strips and spotlights
- Electric roof with panoramic window inserts on ceiling
- Panoramic window on starboard bulwark
- Storage compartment forward of the table
- Lower deck access ladder, fore, on starboard side of the wheelhouse

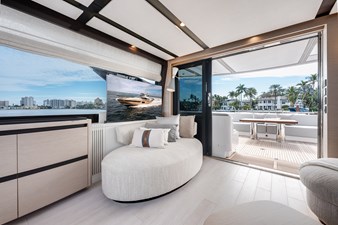

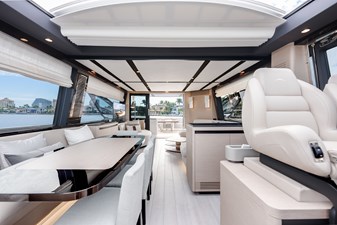

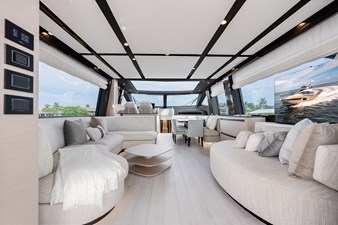

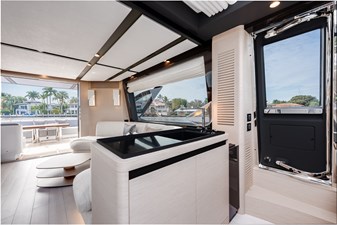

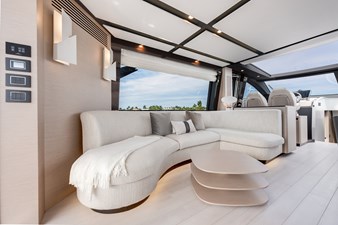

Saloon
Located at the center of the deck. It is composed of:
- Large "C" shaped sofa on port side against the bulwark
- One coffee table
- One container cabinet located forward of the port side sofa
- One large pouf on starboard side
- One compartment containing the TV set lift mechanism
- One cabinet containing tableware located between pouf and dining port side
- Carpeted floor
- Ceiling with a pattern of panels on opaque black background
- Lighting with ceiling-mounted recessed LED strips and spotlights
- Sockets
- Air conditioning control panel
- Air conditioning outlet and inlet grids built in the internal furnishing
- Two panoramic windows on bulwarks
- Side fabric curtains
- Saloon door curtain in fabric

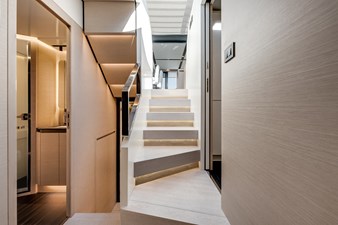

Lobby and corridor
The galley and the cabins on lower deck are accessible through a ladder located forward of the saloon, on starboard side of the wheelhouse. It is composed of:
- Carpeted floor
- Carpeted steps
- Lacquered ladder walls
- Lacquered walls for corridor towards owner's cabin (aft)
- Upholstered walls for corridor towards VIP cabin (fore), excluding lacquered portal in front of the VIP cabin entrance
- Handrail on stairs
- Storage in the corridor under the ladder on port side of the owner's cabin access door
- LED technology lighting

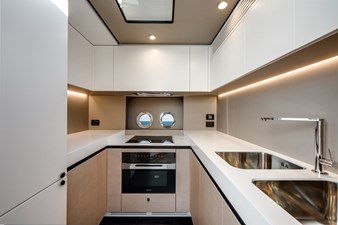

Galley
Located along the lower deck access ladder, port side. It is composed of:
- Sliding access door
- Laminated floor
- Avonite Milk White worktop
- Double stainless steel sink
- Induction type four-hob range
- Silicone pot holder
- Extractor hood with outwards extraction
- 194 l (6.85 cu.ft) fridge + 62 l (2.19 cu.ft) freezer
- 40 l (1.41 cu.ft) oven
- Storage wall cabinets
- Two portlights
- Skylight
- Ceiling with pattern of panels with perimeter frame
- LED lighting
- Sockets
- Air conditioning system control panel
- Air conditioning outlet and inlet grid built in the internal furnishing

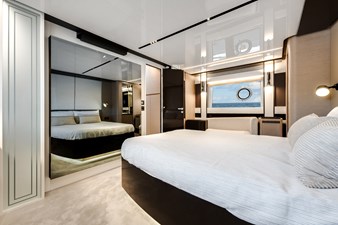

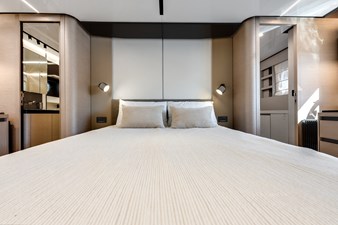

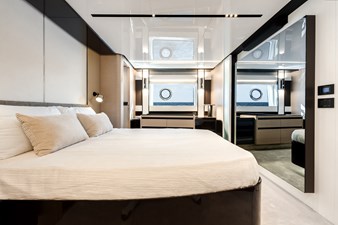

Owner’s cabin
Located midship It is composed of:
- Central entrance
- Owner's bed at the center of the yacht, with foldaway bed base and storage locker below
- Headboard
- Mattress, pillows and bedspread
- Two bedside tables with drawer
- Two reading lights
- Two fixed panoramic windows
- Two openable round portlights built-in the panoramic windows
- Venetian blinds
- One chest of drawers on port bulwark
- One chaise longue on starboard side
- One storage cabinet located on starboard bulwark aft of the chaise longue
- One bookcase on starboard side forward of the chaise longue
- Large mirror in front of the bed
- Carpeted floor
- Lacquered wood-upholstered bulwarks
- Ceiling with pattern of panels with perimeter frame
- Main lighting with LED technology and dimmer
- LED technology courtesy lighting
- Sockets
- Air conditioning system control panel
- Air conditioning outlet and inlet grids built in the internal furnishing
- Direct access to the dressing through hinged door aft of the cabin, port side
- Direct access to the head through hinged door aft of the cabin, starboard side

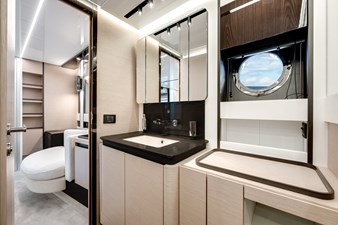

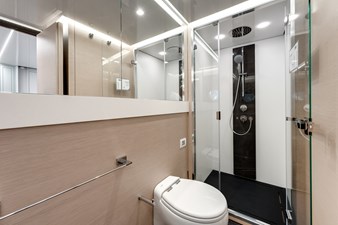

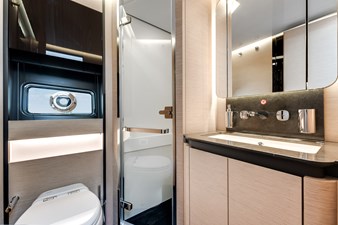

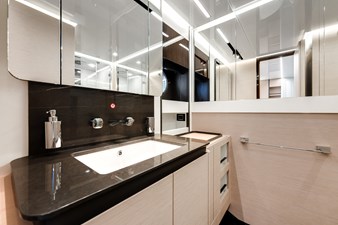

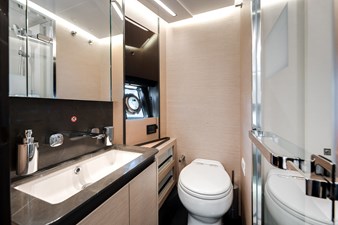

Owner's head
Located aft of the owner's cabin, on starboard side. It is composed of:
- independent access from owner's cabin
- Washbasin in Vetro Freddo recessed under the top
- Washbasin top in marble
- Washbasin cabinet base with storage
- Cabinet beside the washbasin cabinet base, with two open compartments and storage
- Mirror with wall unit in the central part
- Portlight
- Venetian blind
- Wall unit above portlight
- TECMA toilet
- Wood essence furniture
- Floors and bulkhead upholstery in wood essence
- Ceiling with pattern of panels with perimeter frame
- LED technology lighting
- Socket
- Head accessories
- A/C outlet grid
- Air extractor
- Shower enclosure with:
- glass and aluminum access door with towel holder built in the handle
- shower enclosure walls covered with laminate
- removable grating
- marble shower column
- thermostatic mixer
- hand-held and ceiling
-mounted shower head
- watertight spotlights
- A/C suction grating

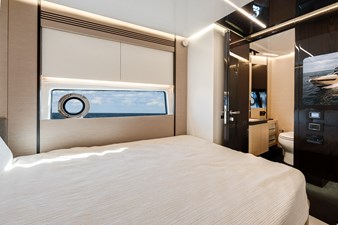

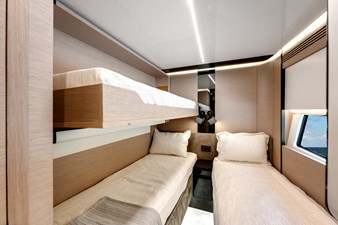

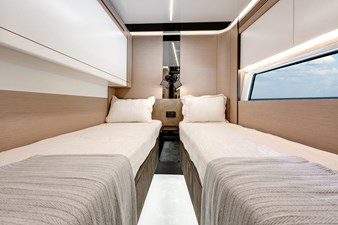

Starboard side guest cabin
Located along the central corridor, starboard side It is composed of:
- Two fixed single beds
- Mattresses, pillows, and bedspreads
- Upholstered headboards
- One bedside table with drawer
- Two reading lights
- One wardrobe with hanger bar and shelves
- One fixed panoramic window
- One round openable portlight, built in the panoramic window
- Venetian blind
- Carpeted floor
- Lacquered wood-upholstered bulwarks
- Ceiling with pattern of panels with perimeter frame
- LED technology lighting
- Sockets
- Air conditioning system control panel
- Air conditioning outlet and inlet grid built in the internal furnishing
- Direct access to the head through hinged door at the aft side of the cabin

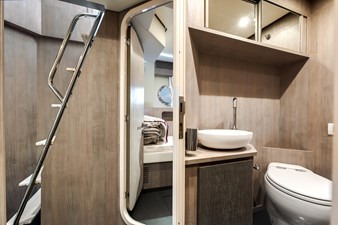

Starboard guest head
Located aft of the starboard guest cabin It is composed of:
- Access from starboard guest cabin and from central corridor
- Washbasin in Vetro Freddo recessed under the top
- Washbasin top in marble
- Washbasin cabinet base
- Mirror with wall unit in the central part
- TECMA toilet
- Portlight
- Venetian blind
- Wood essence furniture
- Floors and bulkhead upholstery in wood essence
- Ceiling with pattern of panels with perimeter frame
- LED technology lighting
- Socket
- Head accessories
- A/C outlet grid
- Air extractor
- Shower enclosure with:
- glass and aluminum access door with towel holder built in the handle
- shower enclosure walls covered with laminate
- removable grating
- thermostatic mixer
- hand-held shower head
- watertight spotlights
- A/C suction grating
Port side guest cabin
Located along the central corridor, port side It is composed of:
- Two fixed single beds
- Mattresses, pillows, and bedspreads
- Upholstered headboard
- One bedside table with drawer
- Two reading lights
- One wardrobe with hanger bar and shelves
- One fixed panoramic window
- One round openable portlight, built in the panoramic window
- Venetian blind
- Carpeted floor
- Lacquered wood-upholstered bulwarks
- Paneled ceiling with perimeter frame
- LED technology lighting
- Sockets
- Air conditioning system control panel
- Air conditioning outlet and inlet grid built in the internal furnishing
- Direct access to the head through hinged door at the fore side of the cabin
Port guest head
Located fore of the port guest cabin It is composed of:
- Independent access from port guest cabin
- Washbasin in Vetro Freddo recessed under the top
- Washbasin top in marble
- Washbasin cabinet base
- Cabinet beside the washbasin cabinet base, with two open compartments
- Mirror with wall unit in the central part
- TECMA toilet
- Portlight
- Venetian blind
- Wood essence furniture
- Floors and bulkhead upholstery in wood essence
- Ceiling with pattern of panels with perimeter frame
- LED technology lighting
- Socket
- Head accessories
- A/C outlet grid
- Air extractor
- Shower enclosure with:
- glass and aluminum access door with towel holder built in the handle
- shower enclosure walls covered with laminate
- removable grating
- thermostatic mixer
- hand-held shower head
- watertight spotlights
- A/C suction grating

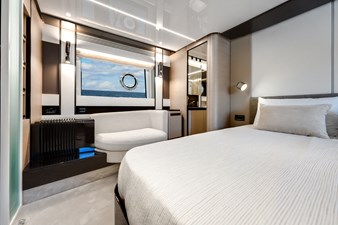

VIP cabin
Located at the bow end of the lower deck, accessible through the door located at the end of the central corridor It is composed of:
- Double bed at the center of the yacht, with foldaway bed base and locker below
- Mattress, pillows and bedspread
- Upholstered headboard
- Two bedside tables without drawer underneath
- Two reading lights
- One wardrobe with hanger bars and shelves located on port side at the foot of the bed
- One wardrobe with hanger bars and shelves located on starboard side at the foot of the bed
- Two wall units, one on each side of the cabin
- Two open compartments under the wall units
- Full-height mirror in front of the bed
- Two fixed windows
- Two openable round portlights built-in the windows
- Venetian blinds
- Carpeted floors
- Wood-upholstered bulwarks
- Ceiling with pattern of panels with perimeter frame provided with openable safety hatch
- LED technology main lighting
- LED technology courtesy lighting
- Sockets
- Air conditioning system control panel
- Air conditioning outlet and inlet grid built in the internal furnishing
- Direct access to the head through hinged door aft of the cabin, starboard side
VIP head
Located aft of the VIP cabin, on starboard side It is composed of:
- Independent access from VIP cabin
- Washbasin under top
- Washbasin top in marble
- Washbasin cabinet base with panels and shelves
- Mirror with wall unit in the central part
- Two open compartments
- TECMA toilet
- Portlight
- Venetian blind
- Wood essence furniture
- Floors and bulkhead upholstery in wood essence
- Ceiling with pattern of panels with perimeter frame
- LED technology lighting
- Socket
- Head accessories
- A/C outlet
- Air extractor
- Shower enclosure with:
- glass access door
- shower enclosure walls covered with laminate
- removable grating
- thermostatic mixer
- hand-held shower head
- watertight spotlights
- A/C suction grating
Electric system
Main characteristics:
- Shore-powered power supply
- DC electric panel: Installed on fore bulkhead of the engine room
- AC electric panel: Installed on fore bulkhead of the engine room
- Auxiliary electric panel: Installed in the corridor area under the lower deck access ladder
- Emergency control panel: Installed in the internal wheelhouse area
- Battery cut-out/emergency/fire extinguishing system control panel: located in the cockpit
- Dimmers for light switches in cockpit and saloon
- Junction boxes in all areas.
Onboard voltages
For alternate current systems:
- 230 V – 50 Hz AC (Europe) single phase
- 120/240 V – 60 Hz AC (America) single phase
For direct current systems:
- 24 V DC from battery set
- 12 V DC from battery set
- 12 V DC from battery set and AC / DC voltage reducer
Power sources
The power onboard is supplied through:
- current generators
- shore sockets
- batteries and recharging systems
Galvanic current insulation
- Zinc anodes
- Volvo ACP (Active Corrosion Protection system)

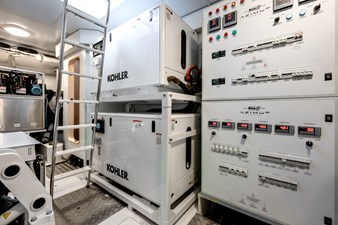

Current generators
One single phase generator:
- 27 kW (28 kW from serial no. 016) / 230 V - 50 Hz AC for EU system
located in the engine room on silent-blocks and including:
- Soundproofing box
- Remote start up
Shore sockets
The following configurations are provided:
- Standard 50 Hz: two single phase 240 V AC 50 A shore sockets located on the transom
Each socket will be protected through power circuit breaker
Fuel system
It is composed of:
- 4000 l (1056.7 US.liq.gal.) GRP structural fuel tank placed centrally and longitudinally forward of the engine room bulkhead
- Two electronic diesel level sensors with continuous reading (one at fore end of the tank, one at aft end of the tank) monitored through indication on internal wheelhouse and on flybridge wheelhouse
- One local electronic sensor with built in display (located at the aft end of the tank)
- Three dual settling filters for engines
- One settling filter for generator set
- Five fuel tank breathers
- Three 24 V solenoid valves for remote engine diesel shut-off
- One 12 V solenoid valve for remote generator diesel shut-off
- Two refueling plugs, one on each walk around
Fresh water system
It is composed of:
- 1100-liter (290.6 US.liq.gal) fresh water tank located at the bow under the fore tray near the cabins corridor
- One fresh water tank vent
- Water refill through a caps located in the fore part of the port walk around
- Stern shore power socket, port side.
- Hot and cold fresh water distribution line through network supplied by water pressure pump or connection to shore socket
- Water pressure pump unit located in crew area with dual power supply (230 V AC - 50/60 Hz and 24 V DC) with electronic control
- One 100 l (26.4 US.liq.gal.) water heater located under the tray near the cabins corridor
- Thermostatic mixer installed on the water heater
- One 24 V electronic level sensor with level gage in wheelhouse
- Level alarm in the wheelhouse
- System that can be isolated by ACORN manifolds
- Provision for desalination system
- Fresh water toilet flushing
- Fresh water windscreen wiper system
Black water system
It is composed of:
- 450 l (118.9 US.liq.gal.) black water plastic tank located under the fore tray in the cabins corridor
- One 24 V electronic level sensor with level gage in wheelhouse
- Level alarm in the wheelhouse
- Tank emptying with automatic/manual control from wheelhouse, through motor pump
- One macerator pump
- Suction point on starboard walk around for emptying the tank from shore
- Tank collection of all toilet discharges through anti-odor pipes
- TECMA toilet
- Two anti-odor filters
- Two black water tank vents
- Tank washing system
Gray water system
It is composed of:
- 450 l (118.9 US.liq.gal.) gray water plastic tank located under the fore tray in the cabins corridor
- One 24 V electronic level sensor with level gage in wheelhouse
- Level alarm in the wheelhouse
- Tank emptying with automatic/manual control from wheelhouse, through motor pump
- One macerator pump
- Two gray water collection trays for automatic transfer between utility and main tank
- Tank collection of all discharges through hoses
- Two anti-odor filters
- One gray water tank vent
- Cockpit sink discharge directly into sea
Seawater system
4" engine cooling system
The following is provided for each engine:
- One seawater intake
- One anti-block flanged valve
- One seawater filter
- One valve with basket for bilge emergency suction
1”½ generator cooling system
- One seawater intake
- One valve
- One seawater filter
1”½ A/C cooling system
- One seawater intake
- One valve
- One seawater filter
Air conditioning system
- A/C system type: the system is of the thermally-treated water circulation type, with fan coils located in various areas
- Compressor unit in engine room, total 144,000 btu/h
- One seawater pump
- One fresh water pump
- One 1"½ seawater intake with filter and valve
- Air conditioning control panel in each area (see interior description)
- Fan-coils location:
- Owner’s cabin: two 9,200 BTU at 230 V AC single phase
- VIP cabin: one 12,500 BTU at 230 V AC single phase
- Port guest cabin: one 9,200 BTU at 230 V AC single phase
- Starboard guest cabin: one 9,200 BTU at 230 V AC single phase
- Crew area: two 6,200 BTU at 230 V AC single phase
- Saloon: one 18,000 BTU, one 12,500 BTU, and two 9,200 BTU, at 230 V AC single phase
- Wheelhouse windscreen: two 18,000 BTU at 230 V AC single phase
- Wheelhouse: one 6,200 BTU at 230 V AC single phase
- Galley: one 9,200 BTU at 230 V AC single phase
