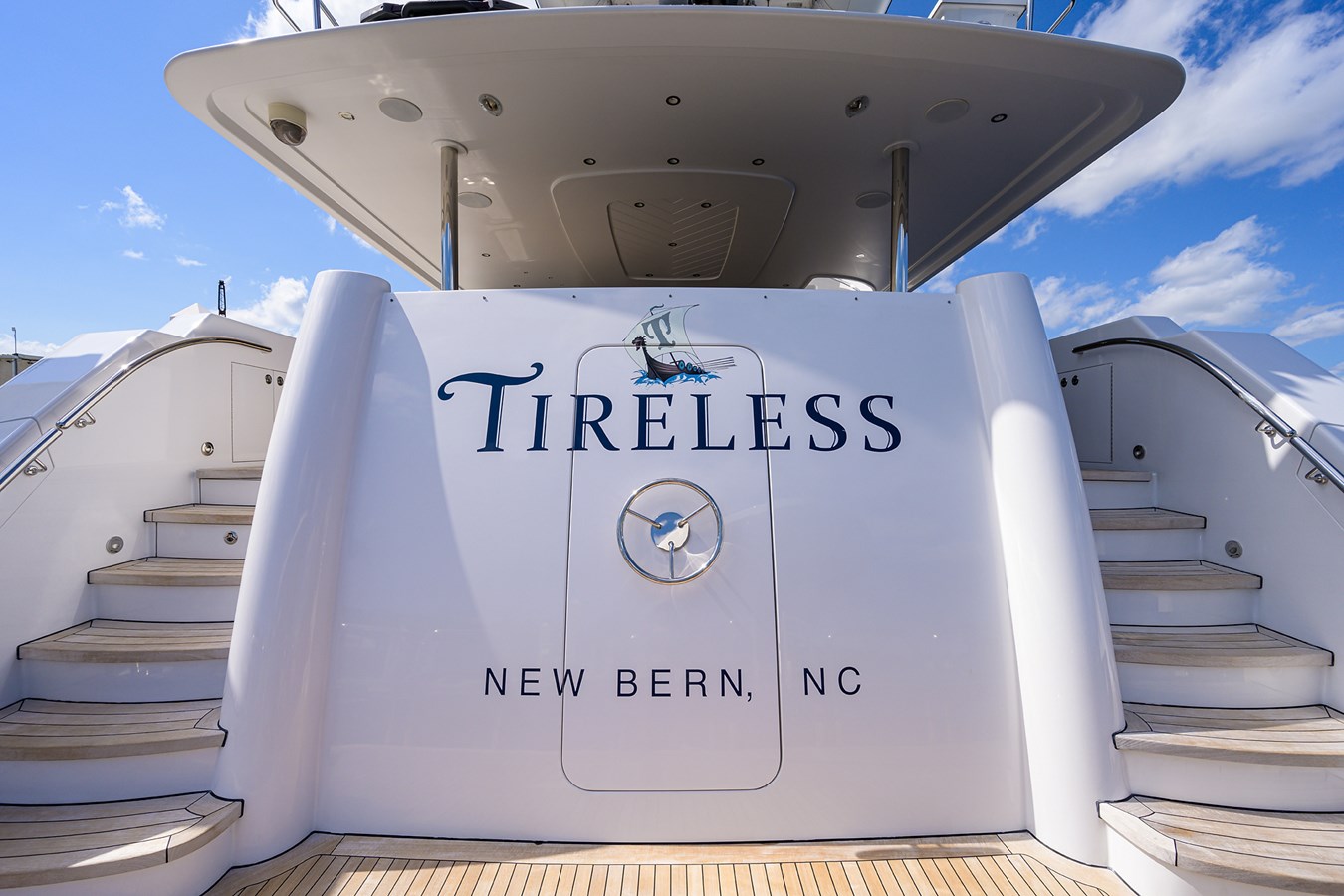

TIRELESS - 2016 112' WESTPORT
Palm Beach Florida United States
$10,995,000 USD

TIRELESS is a one owner beautifully maintained 2017 Model 112 Westport.

Owner is very motivated to sell.  Engine Warranty available.

CONSTRUCTION AND EXTERIOR FINISH:

Hull is fiberglass mat and roving with Airex PVC core on the bottom and Corecell on sides. Hull to include an outer layer of fiberglass laminated with Vinylester resin. Engine stringers and hull stiffeners to be laid up with fiberglass and foam type construction. House structure will be fiberglass and foam construction. Interior deck and bulkheads to be fiberglass sandwich type construction

Lamination: Sprayed exterior gelcoat is followed by fiberglass mat and roving with Vinylester resin for the outer skins, vacuum bagged core foam (high density in appropriate areas), and fiberglass mat and roving with Vinylester resin for the inner skins. The keel pad, strut palms and stabilizer pads are hand laminated, using Vinylester resin

Hull Structure: Hull stringers, webs and stiffeners are fiberglass mat and roving and/or carbon fiber with Vinylester resin over foam forms. All soles and structural bulkheads are of fiberglass and foam composite construction infused with Vinylester resin

PAINT:

Topsides: Alexseal 501 top coat. Hull and house color is Snow White. Boot stripe is acrylic high-gloss black

Bottom Paint: Consists of Sea Hawk black anti-fouling bottom paint over an epoxy barrier coat

SOUND ATTENUATION:

Westport has developed a ‘whole sound reduction’ plan that incorporates installation details and insulation schedules that significantly reduce noise & vibrations throughout the vessel

Engine Room: The sound package consists of barriers and absorptive insulation (material – Soundown). In addition, equipment, piping, and wiring is solidly mounted to isolate and prevent vibrations that transmit noise

Watertight Door: Noise attenuating/watertight door

Isolation Mounts: Various, per equipment manufacturer specifications

DIESEL FUEL SYSTEM:

Approx. 5,480 gallons (US) of diesel in one tank separated into three compartments with a transfer system including a pump, meter and distribution manifold. All diesel consumers draw from the center compartment (Day Tank). During normal operations fuel is transferred to the day tank via the transfer pump. Fueling process is via either of two deck fill locations amidships, port or starboard side. Tank is vented to atmosphere on both sides of the vessel. Tank level monitoring is via electronic sensor and display with high/low level alarms. Tank is all aluminum, welded construction with internal baffles and three divided areas

Pumps: Fuel transfer pump will have a flow meter and timer

Fuel Filters: (1) Dual Racor Duplex DFBO with isolation valve for each main and one Dual Racor 75/500 for each generator

Fuel Gauges: Sight tubes located in Engine Room with electronic monitoring

Fuel Tank: ¼” 5086 alloy aluminum separated tank with dual fills and standard vents, monitoring, and sight tube level indicators. Approximate capacity: 5480 gallons

GASOLINE FUEL SYSTEM:

The gasoline system consists of a tank, air diaphragm pump, and hose with nozzle to transfer the gas. The hose, nozzle, pump, and tank fill are located under the hatch centered on the Swim Step deck

Tank: Aluminum, 100 gallon Pump: Air diaphragm

LUBE OIL SYSTEM:

The vessels main engines and generators can be serviced utilizing and onboard lube oil change system. New/used oil tanks are fitted in the under sole on centerline in Crew Mess. The new oil tank can be filled directly into tank, starboard side. The quick connect hose and portable pump are used to transfer lube oil to/from locations

Tanks: Located under sole in Crew Mess area

New lube oil tank: Aluminum, 50 gallon

Used lube oil tank: Aluminum, 50 gallon

Pump: Portable and stowed below the starboard generator

Fittings: Stainless steel quick connectors

HVAC SYSTEMS-AIR CONDITIONING:

The interior of the vessel is kept at a constant temperature through the use of a seawater cooled treated water HVAC system. The capacity is 24 tons and is distributed throughout the vessel via individual room air handlers of various sizes and BTU ratings. There is one HVAC keypad for the two air handlers in the Master Stateroom, one for the two air handlers in the Galley, and two for the four air handlers that serve the Salon; all other air handlers are each controlled by a separate keypad

HVAC: All interior areas air conditioned by at least one HVAC unit. All air handlers, except mechanical spaces have electric heat for autonomous heating independent of the chilled water loop

Ventilation: (8) Exhaust fans, (2) in the Master Head and (1) in the other heads

Make Up Air: For cycling air through the vessel interior Technicold HVAC System: 4 x 6 ton compressor chiller rack with independent seawater intake

Chillers: 230V-1PH-60Hz, 24 ton

Air Handlers: 230V-1PH-60Hz, various BTU as required by volume being treated, utilizing variable speed hi-static blowers

BILGE SYSTEM:

The system consists of five remote-mounted bilge alarms on all float switches

Bilge Pumps: Fixed bilge pump system includes two electric 230V AC pumps with 1½” PVC lines to each major compartment with check valves, strainers, and priming system

FRESH WATER SYSTEM:

The system is comprised of multiple divided and baffled fresh water tanks, (2) AC supply pumps, suction supply, service and distribution manifolds, (2) reverse osmosis watermakers, and associated valves, filters, expansion tanks, regulators and gauges. Freshwater wash downs with quick connects are located on all decks

Pumps: (2) 220V AC pumps and one 24V DC back-up pressure pump with tank

Water Tanks: Stainless steel with an approximate tank capacity of 1,000 gallons. Monitoring System and sight tube level indicators

Watermaker: (2) Blue Water Desalination Legend Compact 1500 (3,000 gallons per day total)

Water Filters: (5) Micron sediment filters with UV sterilization light

Water Heaters: (2) Dual element, fast recovery; (1) 80 gallon and (1) 38 gallon

WASTE WATER SYSTEM:

Black and Gray water is routed to an FRP Tank. A certified Marine Sanitation Device (MSD) is installed for treatment of all wastewater. Tank level monitoring is via electronic sensor and display with level alarms. All tanks are vented at the boot stripe. Discharge is via MSD or direct overboard via diaphragm pump. Also, a dockside connection is located just aft of the starboard fuel fill

Pumps: High capacity solids handling AC diaphragm type

Holding Tank: Tank is composite with an inspection hatch. Tank is electronically monitored and has an approx. capacity of 600 gallons. Headhunter MSD treatment with PLC touch screen, and Auto-Chlor treats black and gray water Gray Water Sumps: (2) approximately 15 gallon gray water boxes fitted with screens; also, supply and discharge lines for all showers. Forward & aft sump tank will have sump pumps and 24V DC back-up pumps

MSD: Headhunter MSD treatment with PLC touch screen and Auto-Clor treats black and gray water

COMPRESSED AIR SYSTEM:

The vessel has a compressed air system for powering the ship’s whistle, gasoline dispensing pump, and machinery spaces for air powered tools

Compressor: SpeedAire 3 hp with 20 gallon tank Air Hose: 18’ self-coiling with quick-disconnect

MOORING AND ANCHORING:

Dock lines: (6) 60’x 1”, braided nylon with 36” eye splice

Bitts: (8), six @ 1’7” and two @ 15”

Hawse eyes: (6) Stainless steel hawse eyes forward, (2) stainless steel hawse eyes at swim grid, plus (2) additional cleats at stern for shore boat tie-off

Fenders: (4)  F-7 series (15” x 41”) and (4) Prostock PF-5 (16” x 60”) black, with nylon rope, covers, and pump

Fender cleats: (8) 4 per side, with s/s steel rubrail and (4) fender hangers

Bow: Dual Poole style 300 lb. polished stainless steel anchors with polished stainless steel anchor plates. (1) 250’, (1) 350’ x 5/8” chain for (2) anchors, 5/8” chain rollers, stoppers, and devil’s claws. (2) VWC 4500# Maxwell, hydraulic winches with band brakes. Anchor chain wash-down system

Main Engines: (2) MTU/DDC 16V2000 M86 engines, with 2000 hours, rated at 2185hp, 4-station MDEC controls, integrated station selection and shifter control, MDEC synchronizer and underwater exhaust

Generators: (2) 65kW 1800 rpm Northern Lights (Port:  10,000 hrs. & Starboard: 10,000 hrs.) with compound mounts, sound shields, InSep (external water exhaust separation mufflers). Water temperature, oil pressure, and hour meters are installed on main distribution panel in Crew Quarters. Both generators have remote start/stop in Pilothouse. PTO and hydraulic pump installed on both generators for full redundancy

Bow Thruster: American Bow Thruster 16”-40HP hydraulic single prop with 4-station controls

Rudders: Cast urethane foil-shape rudders with stainless steel stocks, 7.6 sq. ft.

Rudder Bearings/Seals: Fiberglass sleeves with PYI bearings, dripless seals, and spare seals in carrier

Propellers: 48” Michigan Nibral 5-blade custom wheels

Shafts: Four-inch Aquamet 22-H.S.

Shaft Log and Packing Glands: Shaft logs to be one-piece fiberglass construction with PYI dripless packing gland with water crossover from engines. Shaft log will be bonded into hull

Struts: Cast bronze of Vee design

Steering: Jastram power steering with dual, engine-driven pumps, and four steering stations: Pilothouse, Flybridge, and Port & Starboard wing stations. Pilothouse and Flybridge Stations include RAI indicator, horn, start/stop buttons, and thruster controls.  Wing Stations include RAI indicator, start/stop buttons, and thruster controls

Bonding: All bronze thru-hulls to be bonded with #8 or heavier wire and connected to transom zincs and shaft wipers

Zinc Anodes: Are installed on hull at transom and secured on brass studs and tied to the bonding system. Included are shaft and strut zincs

Stabilization while underway is provided by a pair of fins located approximately amidships and powered hydraulically by an engine driven hydraulic pump. Control is by modern digital system located in the Pilothouse. Stabilization at rest is powered from generator PTO

Fins: Naiad Model #525, 18.3 square foot fins, single station control, with oil level warning, unloading valve kits, and dual pumps with gauge kits

• Vessel Information and Control system: VIC 2 system. Fixed panels are located at convenient locations providing operational information and alarm conditions with a programming panel located in the Pilothouse

Items on safety control panel:

• (14) Combo smoke / Heat Sensors: Combo sensors located in all staterooms, interior/public & crew areas. Heat Sensor in the Engine Room
• (4) CO Alarms: In Crew Quarters, Captains Quarters, and Crew Galley/Lounge
• Security System: Aft door, Crew door, Salon door, port and starboard doors, Flybridge hatch, and VIP hatch monitored for unauthorized entry
• Tank levels monitored: (3) fuel tanks, (2) fresh water tanks, both gray water sumps, & black water tank.  (Gray water boxes have alarms on DC pumps. Black water tank alarmed at 75% and 98% full levels.)  Monitoring of AC supply switching from all available sources with Volts, Line 1/Line 2 Amps & KW monitored for each generator
• All (5) bilge switches monitored for water detection

• Batteries: All AGM Cell type batteries. (2) banks of two 8-D, 225-amp batteries, wired in series for starting main engines (total of four) and (2) 8-D, 225-amp batteries, one for each generator starting. (1)  24VDC battery bank (two 8-D, 225-amp batteries, wired in series) for ship’s service
• Battery Chargers: (1) 95-amp 24V DC for ship’s service bank, (1) 45-amp 24VDC for main engine bank and (1) 20-amp 24VDC for generator bank Main Distribution Panel: Located in Crew area. Designed to be functional, with all necessary circuit breakers and transfer switches, and to provide proper operation of AC and DC circuits
• Distribution Panels: Located throughout the vessel, distribution panels have engraved faceplates
• Shore Power: (2) 100 amp single/three phase shore feeds with Glendinning Cablemaster cord reels at port bustle (includes two 100’ cables). Phone outlet located at port bustle with (2) 50 ft. phone cords
• Shore Power Converter: (2) 36Kva 60 Hz, single or three phase input service with a 40-70 Hz frequency and a voltage between 170-520VAC. The converters will auto-configure for the applied power form
• Power Conditioner: (1) 10KVA 60 Hz frequency conditioner for audio/video power use & back-up power supply
• Lightning Protection: With hull CuNi ground plate and installed air terminal
• Recessed Light Fixtures: LED Fixtures
• General Lighting: Vimar and Leviton receptacles and switching throughout
• Reading Lights: All Guest staterooms have 110V reading lights and 110V receptacles for table lamps; and Captain/Crew Quarters have 24V Reading lights
• Indirect Lighting: 24V DC and 110VAC Rope lighting
• Shower Lights: 24V with stainless steel rim
• Pilothouse Chart Lights: (3) 12V red DC chart lights: (1) at navigator’s area, (1) at Captain’s desk, and (1) at dash flat over stairs to Main Deck
• Searchlight: (1) Carlisle Finch 200 Watt Xenon located on mast with dual controls
• Exterior Lighting: The Fore Deck, House sides, Aft Deck stair and Flybridge overhead lights are all controlled from the Pilothouse switch bank. The Aft Deck lights are switched locally
• Navigation Lights: Perko
• Crestron: Lighting controls with switched and dimmed Crestron automation

The vessel is equipped with modern navigation and communications equipment suitable for worldwide voyages. This equipment includes satellite based position and speed information, magnetic and true heading data, radar, electronic charting, and depth finding. Communications equipment spans numerous transmission technologies in compliance with safety regulations and to maximize contact with shore side and marine stations, enhancing the ability to communicate from any location

PILOTHOUSE NAVIGATIONAL AIDS:

• Navigation/Electronic Chart System: Transas Navisailor NS4000 ECS with 19” LCD display and charts from Seattle, Washington to Ft. Lauderdale, FL
• Navigation/Electronic Chart System (Backup): Nobeltec Trident Time Zero Charting System in the Pilothouse and at Flybridge
• Radar: (2) Furuno FAR-2117 X-Band Radars with 19” LCD display and (1) repeater on Flybridge
• Depth Sounder: Furuno FCV1200BB-P with 15” LCD monitor
• GPS: Furuno GP-170D at Pilothouse Dash and at Pilothouse Desk
• Wind, Depth, and Speed: NMEA 2000 backbone and sensors with Furuno RD33 displays; includes wind, speed, depth, and heading displayed on full function displays in the Pilothouse, Flybridge, and Captain’s cabin
• Compass: Ritchie Globe Master F-600 in Pilothouse, Furuno Rate Sensor for true heading data
• Autopilot System: Simrad AP70 in Pilothouse and Flybridge

SHIP TO SHIP/SHORE:

VHF: (2) Icom M604 DSC VHF radios in Pilothouse and (1) command mic on Flybridge. VHF radio installed in Tender

(5) ICOM Handheld VHF Radios with charging stations

SSB: Icom M802 w/ automatic antenna tuner

E.P.I.R.B.:  Smartfind Plus

Loud Hailers: (1) Loudhailer, (1) intercom to Aft Deck integrated to PH radios

SATELLITE COMMUNICATIONS (SATCOM) COMPONENTS:

Internet: Internet connectivity thru Omni Access Network System. Wireless access is available throughout the vessel. Connectivity is provided by Mini VSAT, Cellular, Wi-Fi Amp, Fleet Broadband, and shore connection located at aft bustle

Weather Information: Weather data is sourced via the various internet connections

TELEPHONE SYSTEM:

Panasonic (PBX), 20-station Digital Phone System. All stations have speaker phones for intercom and paging. Phone system is connected to Satcom, Vsat VoIP, Cell Phone and Shore Phone for voice lines throughout. Cordless phone units (5-total) are located in the Master Stateroom-1, Pilothouse-1, Galley-1 and Salon-2 (one intended for Aft Deck). The Pilothouse has a fix-mounted phone with an LCD display. A single shore connection is provided at the port bustle with a 100ft. combo Telephone / CATV shore cord

Cellular Phone: Fixed wireless terminal, GSM 3G Satellite Telephone: Fleet Broadband FB150

CAMERA SYSTEM:

A comprehensive CCTV system – controlled with Elbex, with hi-resolution color cameras – offers security and assists in navigation during low visibility situations. A full pan zoom tilt camera on the Aft Deck and fixed port and starboard cameras on side decks assists in maintaining surveillance of entry points. In the Engine room, a full pan zoom tilt camera helps the captain monitor mechanical operation while piloting the vessel. Located on the mast is an infra-red camera, FLIR M, for nighttime navigation and viewing. Camera video is available in the Pilothouse, at the Flybridge, in the Captain’s cabin, and in the Crew Mess

• Bar: Includes refrigerator, stone top, sink/ice bin with hot and cold water, bar storage, and a barware cabinet in portside bulwark
• Refrigerator: Perlick
• 42” LCD TV
• Blu-Ray DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• APPLE TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (4) Speakers (overhead)
• Furniture: Includes molded-in settee with cushions, one high-gloss Teak dining/cocktail table on stainless steel pedestals with electric high/low features, six dining chairs, and three bar stools
• Storage Lockers: Located in bulwarks
• Spiral Staircases: (1) down to Crew Quarters with a weather-tight door and (1) up to Boat Deck
• Boarding Gates: Boarding gates, port and starboard

• Cabinetry: Raised buffets port and starboard, lower side buffets. Buffet tops are stone with crescent edge. Outboard cabinets will have Crotch Mahogany veneer and Sapele with high-gloss finish tops

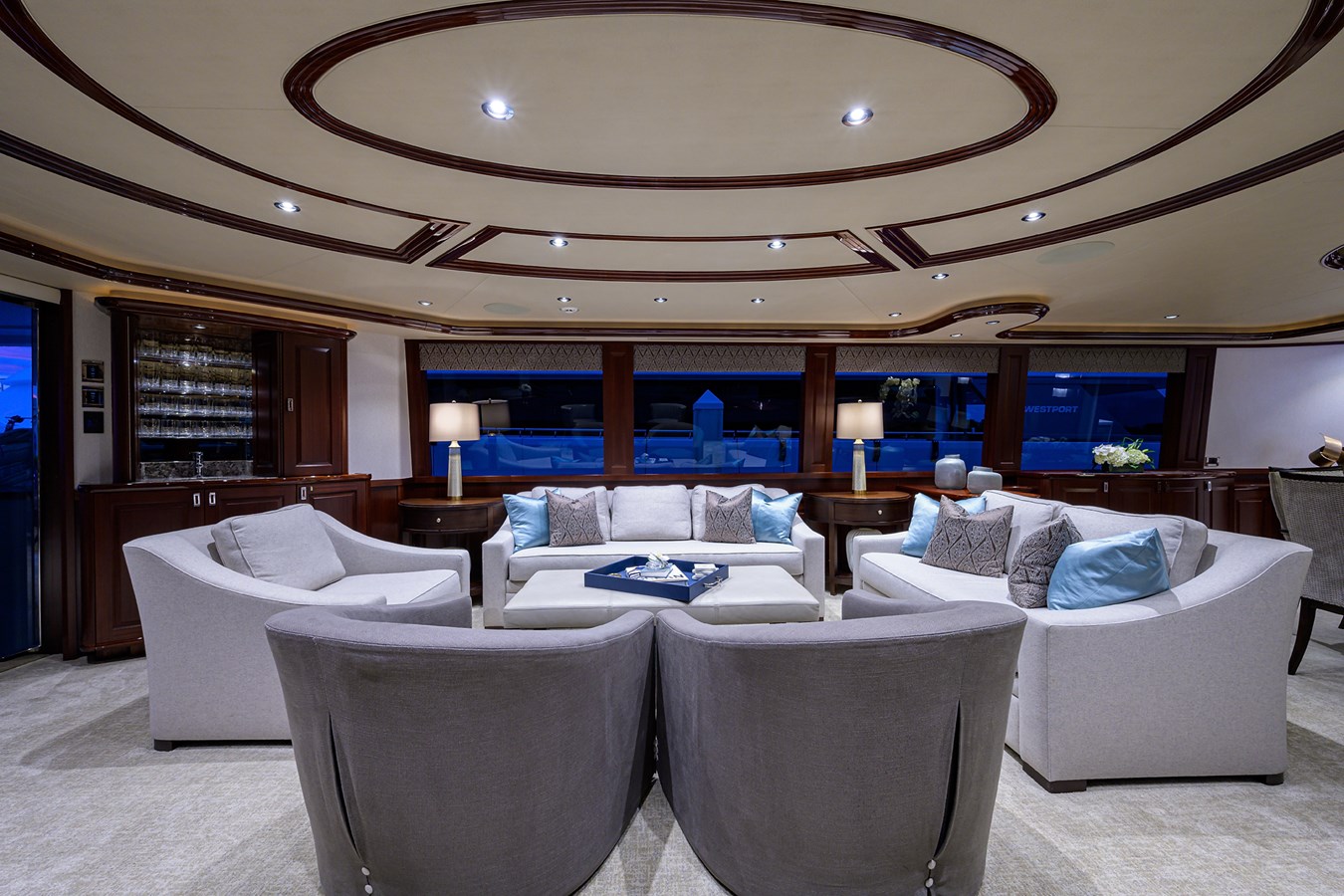

• Furniture: includes: sofa and love seat placed in “L” configuration with 3 occasional chairs, cocktail table, and end tables portside, game table with 2 chairs to starboard
• 55” LED/LCD TV
• Blu-Ray DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• Apple TV
• TV Tuner/FM Radio/XM Radio
• IPad Mini Touch Panel
• Speakers (overhead)
• Bar: Includes a walk-up bar with combo refrigerator/icemaker, and storage. Bar top has Crotch Mahogany veneer top with high-gloss Sapele edge and inlayed stone behind doors. Mirror polished stainless steel round sink with chrome faucet
• Refrigerator/Icemaker: U-Line
• Overhead Detail: Perimeter soffit with crown molding and rope light. Domed overhead ceiling feature (oval) is over the dining area, with dining pendant and overhead ceiling feature in the Salon
• Formal Dining: Veneered dining table top and base with glass inserts and 8 chairs
• Formal Dining Service Storage: (2) Mirrored Lucite storage cases. One case holds provided formal china (twelve 5-piece place settings), and one holds formal crystal which includes (12) each of the following: wine, water, and champagne glasses. Formal 5-piece flatware is stored above cases
• Media Storage: Storage for CD’s and DVD’s
• Headliner: Majilite Vinyl headliner
• Window Treatments: Fashion Tech blinds and shades use Somfy motors with RTS control
• Aft Door: Large 4-panel polished stainless steel sliding door, weather-tight, and direct bonded glass

• Overhead Detail: Perimeter soffit with crown molding and rope lighting
• Cabinets: Sapele Hardwood and Tiama cabinetry.  Includes cabinets along starboard wall under windows
• Dinette Settee and Table: Built-in storage; table stone with crescent edge
• Galley Countertops: Stone with crescent edge
• Dinette Counters: Crotch Mahogany and Sapele edge with high-gloss finish
• 55” LED/LCD TV
• Blu-Ray DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• Apple TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• Speakers (overhead)
• Sink: Kohler stainless steel, extra deep, with Kohler cutting board and Altman's soap dispenser
• Faucet: Altman's
• Refrigerator: Sub-Zero 48”
• Cook top: Miele Induction
• Stove Fiddles: Cook top pan holders
• Oven: Dacor Double Wall 27”
• Microwave: Dacor
• Vent Hood: Wolf
• Trash Compactor: Broan
• Hot Water Disp.: Insinkerator
• Dishwasher: ASKO
• Window Treatments: Ocean Air blinds, 2” sky view, room darkening, electric
• Galley Flooring: Amtico commercial Vinyl flooring in a hardwood pattern with elegant inlaid border

• Walk-in pantry located off of Port Companionway. Pantry has storage, stackable washer and dryer, icemaker, and under counter wine cooler
• Icemaker: Manitowoc
• Wine Cooler: Perlick
• Washer: Miele
• Dryer: Miele

• Freezer: Magic Chef Box Freezer

• Helm Station Wheel: Wooden 24” Destroyer type
• Engine Controls: MTU Integrated Control Head
• Engine Instrumentation: DDC/MTU
• Bulkheads: Majilite
• Headliner: Majilite
• Control Console: Majilite
• Settee: Fabric
• Settee Table: Crotch Mahogany top and Sapele edge with high-gloss finish and stainless steel grab rail
• Defrosters: Three heater/defrosters on Pilothouse console
• Windshield Wipers/Washers: Exalto windshield wipers with electronic control panel with synchronization and washers for three wipers
• Helm Chair: Crown Mariner helm chair with leather which matches settee
• Counter: Majilite
• Bronze Mirror: Aft bulkhead
• Joinery: Bookcase: Built-in
• IPod Docking Station
• FM Radio/XM Radio
• IPad Touch Panel
• Speakers (overhead)
• Printer/Fax Cabinet
• Desk: Crotch Mahogany top and Sapele edge with high-gloss finish and stool
• Chart drawers adjacent to console
• Helm Console
• HVAC: With linear slot diffusers in soffit and overhead
• Windshield: Mesh sunscreen cover
• Computer: Computer with wall mounted monitor located at Navigation station (desk) in Pilothouse
• Flooring: Stain-resistant carpeting

• Berth: California King (72” x 84”) berth, upholstered headboard, and electric lift top to access storage below. The pedestal has two raised panel drawers built-in. Berth flat extends from the pedestal to create a recess for undermount rope lighting
• Lighting: Recessed LED room lights
• (2) Reading lights
• (2) Table lamps for end tables
• Indirect rope accent lighting under berth and above soffits
• Special lighting outboard at hull side behind Roman blinds
• Overhead lights (rope lights) above berth
• 48” LED/LCD TV
• Blu-Ray DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• APPLE TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• Powered Sub-Woofer
• (5) Speakers (overhead)
• Mirrors: Bronze mirrors on bulkhead above headboard and clear mirror on inside wardrobe door
• Wardrobe: Walk-in wardrobe with automatic light, closet rod, and shelf with keeper
• Counters: Crotch Mahogany top and Sapele edge with high-gloss finish
• Blinds: Roman shade and blind
• Portlights: With fixed glass and privacy cover
• Trim: Sapele
• Joinery: Soffit with Sapele trim for lighting
• (2) Nightstands with drawer
• (1) 15-Drawer dresser
• (2) End table cabinets
• Furniture: Sofa
• Safe: Digital safe in walk-in closet

• Shower: Stone with Altmans fixtures. Euro-style frameless tempered glass doors and chrome latches
• Counters: Stone with crescent edge. A narrow extension of vanity counter continues onto forward bulkhead
• Sinks: (2) Kohler Vintage sinks with Altmans fixtures
• Mirrors: (2)Mirrored medicine cabinets. Lighted make-up mirrors above each vanity, also includes (2) free-standing vanity stools. Fixed mirrors on forward bulkhead
• Headliner: Majilite Vinyl headliner
• Lighting: Recessed LED room lights and vanity lights
• Bath Accessories: Altmans
• Joinery:  Full-width vanities, linen lockers and, clothes hampers port and starboard
• Toilets: (2) Headhunter Royal Flush Bravo
• Flooring: Stone

• Console: Sapele cabinet with stone top and Artwork above cabinet
• Lighting: Overhead lighting
• Luggage Storage: Guest stairs have lift-up section to allow for storage
• Flooring: Stone

• Berth: Queen Berth with upholstered headboard, and electric lift top to access storage below. Berth flat extends from the pedestal to create a recess for under-mount rope lighting
• 28” LED/LCD TV
• Blu-Ray DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• Apple TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (2) Speakers (overhead)
• Mirrors: Bronze mirrors on forward bulkhead above headboard. Clear full-length mirror on wardrobe door
• Wardrobe: Walk-in wardrobe with automatic light, closet rod, and shelf with keeper
• Counters: Crotch Mahogany top and Sapele edge with high-gloss finish
• Hatch: Over berth, 24” round hatch
• Trim: Sapele
• Joinery: Soffit for lighting
• (2) Built-in bookcases at headboard
• Vanity/desk
• Entertainment center
• Cabinet in stairwell locker
• Dresser & upper cabinets with doors
• Lighting: Recessed LED room and reading lights.  Indirect rope accent lighting is under the berth and above soffit

• Shower: Custom molded fiberglass with Euro-style frameless tempered glass door and Altman fixtures
• Sealed shower light
• Counters: Stone with crescent edge
• Sink: Kohler Vintage sink with Altmans fixtures
• Mirror: Mirror above vanity
• Lighting: Recessed LED room lights and vanity lighting
• Bath Accessories: Altmans
• Joinery: Vanity, Medicine cabinet, and linen cabinet
• Toilet: Headhunter Royal Flush Bravo
• Flooring: Stone

• Berth: Queen Berth, upholstered headboard, and electric lift top to access storage below. The pedestal has two raised panel drawers built-in. Berth flat extends from the pedestal to create a recess for undermount rope lighting
• Lighting: Recessed LED room lights
• (2) Reading lights
• Indirect rope accent lighting under berth and above soffits
• 28” LED/LCD TV
• Blu-Ray DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• Apple TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (2) Speakers (overhead)
• Mirrors: Bronze mirrors on aft bulkhead above headboard; clear full-length mirror on outside wardrobe door
• Wardrobe: With automatic light, closet rod, drawer, and shelf with keeper
• Counters: Crotch Mahogany top and Sapele edge with high-gloss finish
• Trim: Sapele
• Joinery: Soffit with Sapele trim for lighting
• (2) 3-Drawer nightstands
• (1) 5-Drawer dresser
• Entertainment center with doors and 4-drawer dresser below
• Blinds: Roman shades and blinds
• Portlights: With fixed glass and privacy cover

• Shower: The shower is molded fiberglass. Altmans fixtures with Euro-style frameless tempered glass doors with chrome hardware. The shower includes a sealed light
• Sink: Kohler Vintage sink with Altmans fixtures
• Mirror: Wall mirror above vanity
• Lighting: Recessed LED room lights and vanity lighting
• Counters: Stone with crescent edge
• Bath Accessories: Altmans
• Joinery: Vanity & medicine cabinet
• Toilet: Headhunter Royal Flush Bravo
• Flooring: Stone

• Berths: Twin Berths with upholstered headboards. The pedestal has one raised panel drawer built-in.  Berth flat extends from the pedestal to create a recess for undermount rope lighting. The inboard berth is movable
• Lighting: Recessed LED room lights
• (2) Reading lights; indirect rope accent lighting under berth and above soffits
• 28” LED/LCD TV
• Blu-Ray DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• Apple TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (2) Speakers (overhead)
• Mirrors: Bronze mirrors on aft bulkhead above headboard. Clear full-length mirror on outside wardrobe door
• Wardrobe: With automatic light, closet rod, drawer, and shelf with keeper
• Counters: Crotch Mahogany top and Sapele edge with high-gloss finish
• Trim: Sapele
• Joinery: Soffit with Sapele trim for lighting
• (1) 3-Drawer movable nightstand
• Entertainment center with doors and 4-drawer dresser below
• Blinds: Roman shades and blinds
• Portlights: With fixed glass and privacy cover

• Shower: The shower is molded fiberglass. Altmans fixtures with Euro-style frameless tempered glass doors with chrome hardware. The shower includes a sealed light
• Sink: Kohler Vintage sink with Altmans fixtures
• Mirror: Wall mirror above vanity
• Lighting: Recessed LED room lights and vanity lighting
• Counters: Stone with crescent edge
• Bath accessories: Altmans
• Joinery: Vanity & medicine cabinet
• Toilet: Headhunter Royal Flush Bravo
• Flooring: Stone

• Berths: Captain Berth is full size and Crew is four twin berths with innerspring pillow-top mattresses and storage below
• Captain’s berth contains a safe
• 32” LED/LCD TV
• Blu-Ray DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• Apple TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (2) Speakers
• Lighting: 110V AC recessed room lights and 24V DC reading lights
• Mirrors: Clear full-length mirror on the inside of the entry doors
• Joinery: Captain’s wardrobe and (2) dressers
• Captain’s desk with solid surface top, includes stool Captain’s upper cabinet above desk
• Captain’s drawers under berth
• Crew drawers under berths
• Crew cabinet above berths
• 22” LED/LCD TV
• DVD Player
• IPod Docking Station
• Kaleidescape
• Satellite TV
• Apple TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (2) TV Speakers

• Crew Lounge entertainment center
• Crew Lounge/Galley upper and lower cabinets
• Crew Lounge upholstered settee
• Crew Lounge solid surface table top
• 22” LED/LCD TV and Blu-Ray DVD Player
• IPod
• Kaleidescape
• Satellite TV
• Apple TV
• Off Air TV Tuner
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (2) Speakers (overhead)
• Counters: Solid surface with crescent edge
• Refrigerator: Perlick
• Washer/Dryer: Miele
• Microwave: GE

• Appliances: Built-in refrigerator, microwave, washer, and dryer
• Blinds: Duettes
• Trim: Maple

• Showers: Custom-molded fiberglass with tempered glass doors and Altmans fixtures. Sealed shower light
• Mirrors: Mirror on medicine cabinet
• Lighting: Low-voltage recessed room lights and vanity lighting
• Counters: Solid surface with crescent edge
• Sinks: Stainless steel with Grohe fixtures
• Bath accessories: Gedy
• Joinery: Vanity and medicine cabinet
• Toilets: Galleymaid Eurostyle
• Flooring: Amtico commercial Vinyl flooring in a hardwood pattern including Corian base molding

• Niche: Sapele console cabinet with stone top, recessed mirror with Sapele frame
• Lighting: Overhead recessed lights

• Majilite Vinyl headliner
• Ceiling light fixture and vanity light
• Stone vanity top with Kohler Caxton undermount sink; Altmans faucet, accessories and wainscoting
• Headhunter Royal Flush Bravo toilet
• Flooring: Stone in port and starboard Companionways and aft Salon Entry

• Flybridge Helm: Steering controls on centered console
• Wing Stations: Flip-up steering units on port and starboard of Flybridge Console
• Wet Bar: Upper bar top is high-gloss Teak and the lower bar surface is stone with stainless steel sink/ice
• bin. BBQ area has stone top. Refrigerator near BBQ, grill with hood and cover, and four fixed bar stools
• Refrigerator: Perlick
• Grill: RDS
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (4) Speakers (overhead)
• Helm Wheel: (1) 24” stainless steel, Destroyer type
• Helm Chairs: (2) Crown Mariner with footrests
• Hard Top: Composite construction covering Flybridge Deck has 24v overhead deck lighting
• Tables: (1) Fixed oval high-gloss Teak table
• Settee: Molded settee with cushions and hinged seating for storage below
• Mast: Welded aluminum and composite with electronics and anchor light
• Air horn: Kahlenberg T2-figure 372, with ½” air strainer
• Venturi: Custom ¼” Per-spec in stainless frame

• Bow Sun Lounge: With Vinyl cushions and cover and storage below
• Keyhole Seat: Molded settee with cushion and cover
• FM Radio/XM Radio
• IPad Mini Touch Panel
• (2) Speakers (overhead)
• Bosun’s Locker: 110v Outlet inside with lights and storage
• RAILS: S/S Rails: Transom stairs port and starboard, Swim Step, Flybridge, Bow, Boat Deck sides, and Boat Deck aft. All railings are 1½” mirror polished stainless steel except Swim Step staple rails which are 2”. Boat Deck and Swim Step rails have mid-rails
• Rubrail: Molded-in fiberglass and high-density foam lower and middle guards with stainless half-oval rub strip
• WINDOWS: Frameless, bonded with Ultra Glaze, ¼” Solar Gray tempered glass. Forward Pilothouse windows will be 3/8” clear
• PORTLIGHTS:  Watertight slot shaped with privacy covers
• THRU-HULLS:  All thru-hull fittings below waterline are bronze with bronze valves and bonding

HATCHES:

• (1) Freeman 24” round hatch for VIP
• (1) Stainless steel/aluminum sliding hatch from Pilothouse to Flybridge
• (1) Freeman cast aluminum round bow deck hatch to chain locker
• (1) Sliding hatch from Aft Deck stairs to Flybridge
• (1) Hatch from Crews Quarters companionway to Lazarette
• (1) Hatch to the Attic

• Davit: Hydraulic powered Nautical Structures crane features 359 degrees of rotation, wireless proportional control, and a 2,500 lb. load capacity
• Chocks: Removable, for Tender
• Rails: Stainless steel rails with mid rail around Boat Deck
• Hot Tub: Molded-in spa with sun pad top and storage below
• Sun Lounge: With cushions and covers
• Flagstaff: Stern flagstaff with 5’ x 8’ U.S. Flag

Each accommodation space is equipped with Audio/Video entertainment equipment which provides for a variety of entertainment choices. All control for the A/V System is through dedicated IPads for each room or space utilizing a Westport engineered Crestron program. IPad Minis also control lighting and shades/blinds, if applicable.  Rooms with TV’s will have the following sources available:

• DIRECTV US
• Kaleidescape Movies and Music
• Blu-Ray / DVD
• Off Air HD TV tuner
• Navigation Chart Plotter
• Apple TV
• XM Radio
• FM Radio
• IPod Docking Station

• Shower Doors: Euro-style frameless with clear tempered glass, except Crew and Captain’s Quarters
• Wall Coverings: Wallpaper
• Headliners: Are insulated with 3M Thinsulate and sheathed with vinyl headliner, Majilite material
• Carpeting: High quality stain-resistant with pad. Salon includes lead foam sound pad on Main Deck over Engine Room
• Carpet Runners: Carpet runners include Salon, Galley, and Pilothouse
• Heads: Heads are equipped with ¼” thick wall mirror, toilet tissue holder, towel bar and soap dish and vanity tops are stone
• Master and Guest Heads: Wall surfaces are vinyl covered, headliner is Majilite, showers are stone
• Sinks: Kohler china bowls under-counter type. Captain and Crew are stainless steel
• Head Floors: Stone flooring
• Wardrobes: With automatic light fixture, closet rod, and shelf. In the Master and VIP staterooms, the overhead will be covered with headliner
• Door Hardware: Turnstyle Designs
• Doors: Passage doors have an internal honeycomb structure from Nida-Core (H8PP with Twintex grid) with styles/rails, panels, and inlay.  Master Stateroom, Guest Staterooms, & Day Head door design as follows: Styles/rails – quartered, broken striped Tiama; Panels – book matched Crotch
• Mahogany; Inlay – ebonized wood.  All Crew doors designed as follows: Styles/rails – quartered plain Anigre; Panels – quartered plain Anigre in a chevron pattern; Inlay – ebonized wood
• Built-in Furniture: Raised panel cabinetry and trim, berths, dressers, nightstands and vanities are Sapele hardwood and Tiama. Crew area doors, drawers, trim, berths, dressers, nightstands and vanities are Anigre and Maple
• Galley countertops: Granite with crescent edge
• Dinette countertops: Tops are recessed Crotch Mahogany with Sapele edges and finished in high-gloss, except for dinette table, which is granite with crescent edge
• Main Salon: Stone top, design with crescent edge. Outboard cabinets are Crotch Mahogany with Sapele edge with high-gloss finish
• Dresser tops & nightstands: Tops are recessed Crotch Mahogany with Sapele edges and finished in high-gloss
• Crew Quarters & Crew Galley: Solid surface with crescent edge
• Stairways: Stairway to Flybridge is rubber treads with Sapele trim including non-skid insert. All other interior stairs are carpeted. Small oval lights are inset for safety. Pilothouse stairs are carpeted, with Sapele trim including non-skid inserts. Stairway down to Guest Foyer has lift-up section for luggage storage
• Handrails: (1) At each stairwell. Master and forward Guest stairs are 1½” stainless steel, leather wrapped.  Flybridge, Pilothouse, and Crew stairs are stainless steel
• Valances/Blinds: Valances and motorized blinds in main Salon, Galley/Dinette, starboard companionway. Valances and blinds in Captain and Crew Quarters.  Roman shades and blinds in Master Stateroom, port and starboard Guest Staterooms and Heads
• Mattresses: Innerspring mattress

• Headliner: Majilite
• Wall Coverings: Wallpaper
• Stone: Granite/marble
• Settee: Leather
• Fabrics: Headboards and furniture throughout
• Carpet: Fabrica stain-resistant synthetic
• Formal Dining: Twelve 5-piece place settings of china with (12) soup/pasta bowls, (1) serving platter, (1) Serving bowl, sugar and creamer. (12) 5-piece place settings of formal silverware, twelve pieces each of water goblets, wine, and champagne stemware and table linens
• Casual Dining: (12) 5-piece place settings, (12) soup/cereal bowls, (1) serving platter, (1) serving bowl, sugar & creamer, (12) tall glasses, (12) tumblers, (10) 5-piece stainless steel flatware and stemware
• Barware: (12) Highball glasses, twelve double old fashioned glasses
• Cookware: 12-piece All-Clad stainless cookware, Henkel cutlery, Kitchen Aid mixer, food processor, toaster, blender, espresso machine, coffee maker, coffee grinder, crock-pot, and accessories
• Furniture: Typical furniture includes: Master sofa, (2) master vanity stools, (8) Dining chairs, Dining table, (3) occasional chairs, (2) game chairs, game table, Salon sofa, loveseat, cocktail table, (2) end tables, (2) Galley bar stools, (6) Aft Deck chairs, (3) Aft Deck bar stools Linens: Bed and bath includes (2) sets of towels, (1) set of robes, (2) sets of sheets, pillows, bedspread, and blankets

• Teak Decking: Teak over composite deck
• Hose Bibs: For wash-downs
• Pop-up Cleats: (2) at the guard (port & starboard)
• Hatch: Gasoline fueling station
• Sockets: For swim ladder
• Swim Ladder: Folding handle, stainless steel
• Steps to Aft Deck: Located port and starboard with Teak covered steps and stainless steel handrails
• Capstans: (2) Maxwell 3500# 24V DC
• Mooring Bits: (2) one port & one starboard
• Access Door to Utility Room: Watertight door
• Hand Rails: 1 ½” polished stainless steel
• Staple Rails: 2” polished stainless steel, removable
• Underwater Lights: (4) across the stern

• Dell Communication Laptop Computer
• Boarding Stair: (1) 7-step Carbon Fiber with two handrails, brackets at port & starboard gates, stowed on starboard bulwark
• Boat Hook: (1) 11/2” x 8’ with chrome plated hook end
• Covers: Sunbrella Snap-On covers
• Flybridge: Bar, tables, settee, four bar stools, two helm chairs, and instrument console
• Boat Deck Tender, hot tub cushions, and sun lounge
• Bow: Settee and sun lounge
• Aft Deck: Settee, table, bar stools, loose Teak furniture, also for the boarding stairs while in the stowed position
• Pilothouse: Black mesh windshield cover
• Cushions: Aft Deck settee and bar stools, bow keyhole settee and lounge, Flybridge settee, hot tub cover, and Boat Deck sun lounge. Sunbrella fabric cushions with dry fast foam fill
• Flagstaffs: Stern flagstaff rigged with 1/8” nylon line, and bow jack staff rigged with 1/8” nylon line; both rigged per standard yacht practice. Courtesy flag halyards are on the mast
• Passerelle: Nautical Structures, Hydraulic
• Swim Ladder: 4-Step swim ladder
• Tow Bridle
• Dock Box for storage of Toys

• Life Raft:  (2) 8-Man Zodiac life rafts
• Life Preservers: (13) Coast Guard-approved adult life preservers with water lights, and (6) Coast Guard approved child life preservers with water lights
• Ring Buoys: (2) 24” diameter ring buoys secured on exterior of vessel
• Flare Kit
• Bell: Perko 179 ship’s bell per Coast Guard regulations, stored in Master Stateroom
• Safety Steps: Recessed into transom
• Fire Extinguisher: Dry chemical type to be installed in suitable locations: (5)10 lb., (5) 5 lb., and (5) 2½ lb.
• EPIRB:  Smartfind Plus
• Medical Kit

• Paint Package: Bright white
• Cabinets: Storage cabinets on aft port bulkhead above workbench, storage cabinet on forward port bulkhead
• Work Bench: Stainless steel work bench with 5” vise and tool box
• Door: Aluminum watertight door
• Fire Suppression: FM200 Fire Suppression System with manual/automatic controls. Additional fire suppression is located on the electrical distribution panel. The system is tested and issued a certification of inspection by an authorized inspector.
• Floor: Removable plywood floorboards with black tile Vinyl floor covering

17' AB RIB with 4-Stroke Yamaha outboard motor and includes the following: starboard console, VHF radio with fold-down antenna, compass, depth sounder, polished stainless steel rails, transom ladder, lifting bridle, side ladder, Bimini canvas top and towing pole for water sports
