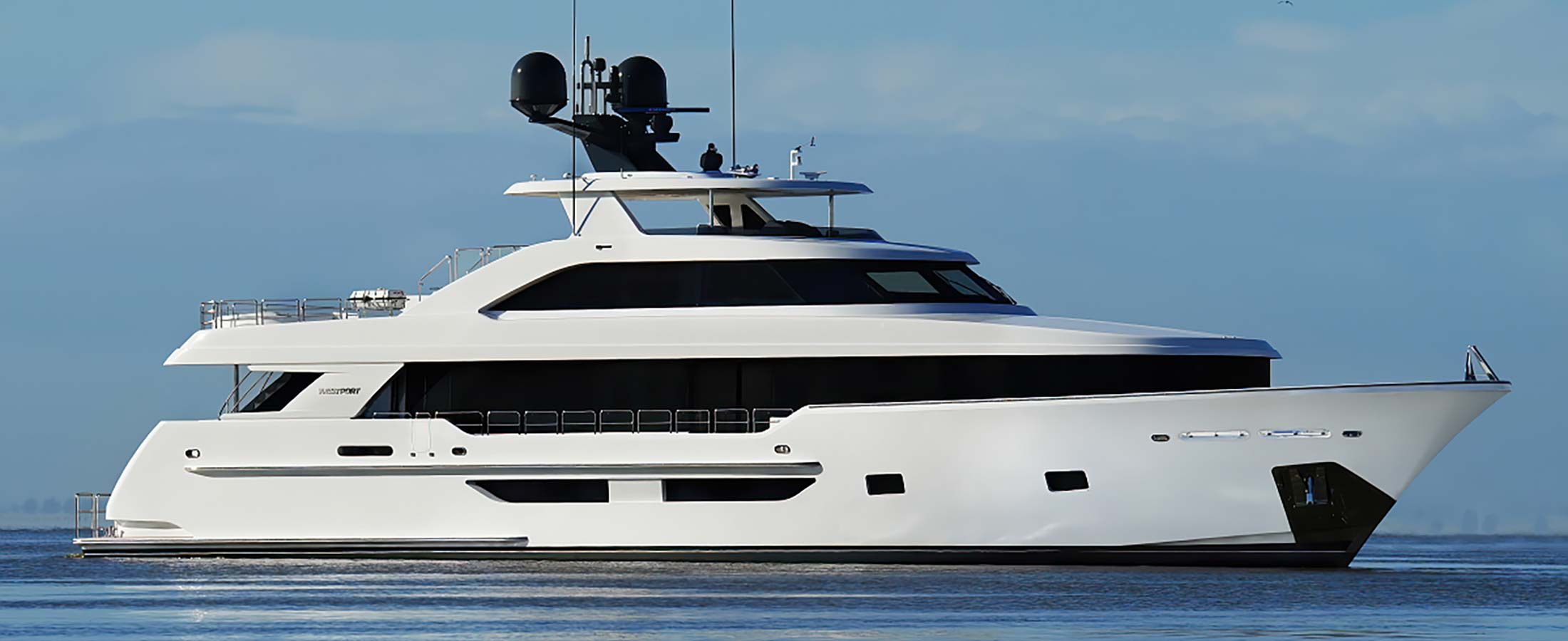

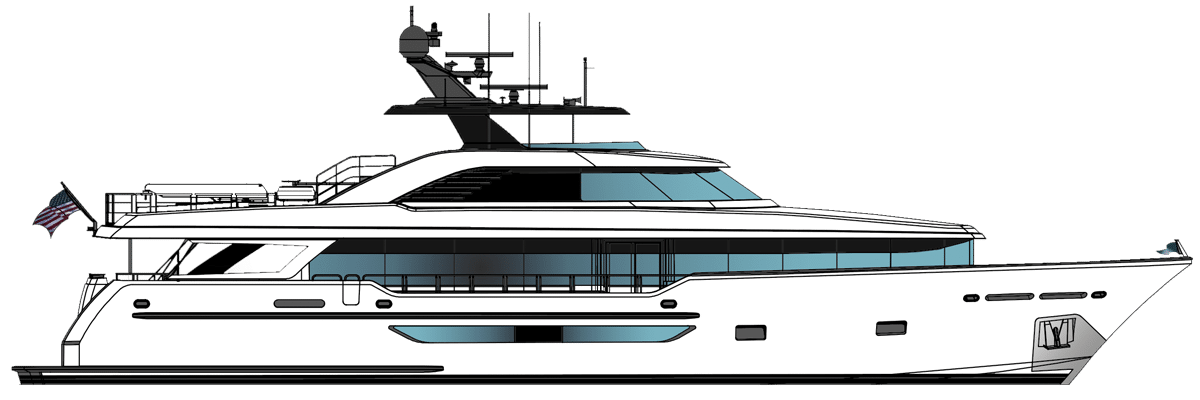

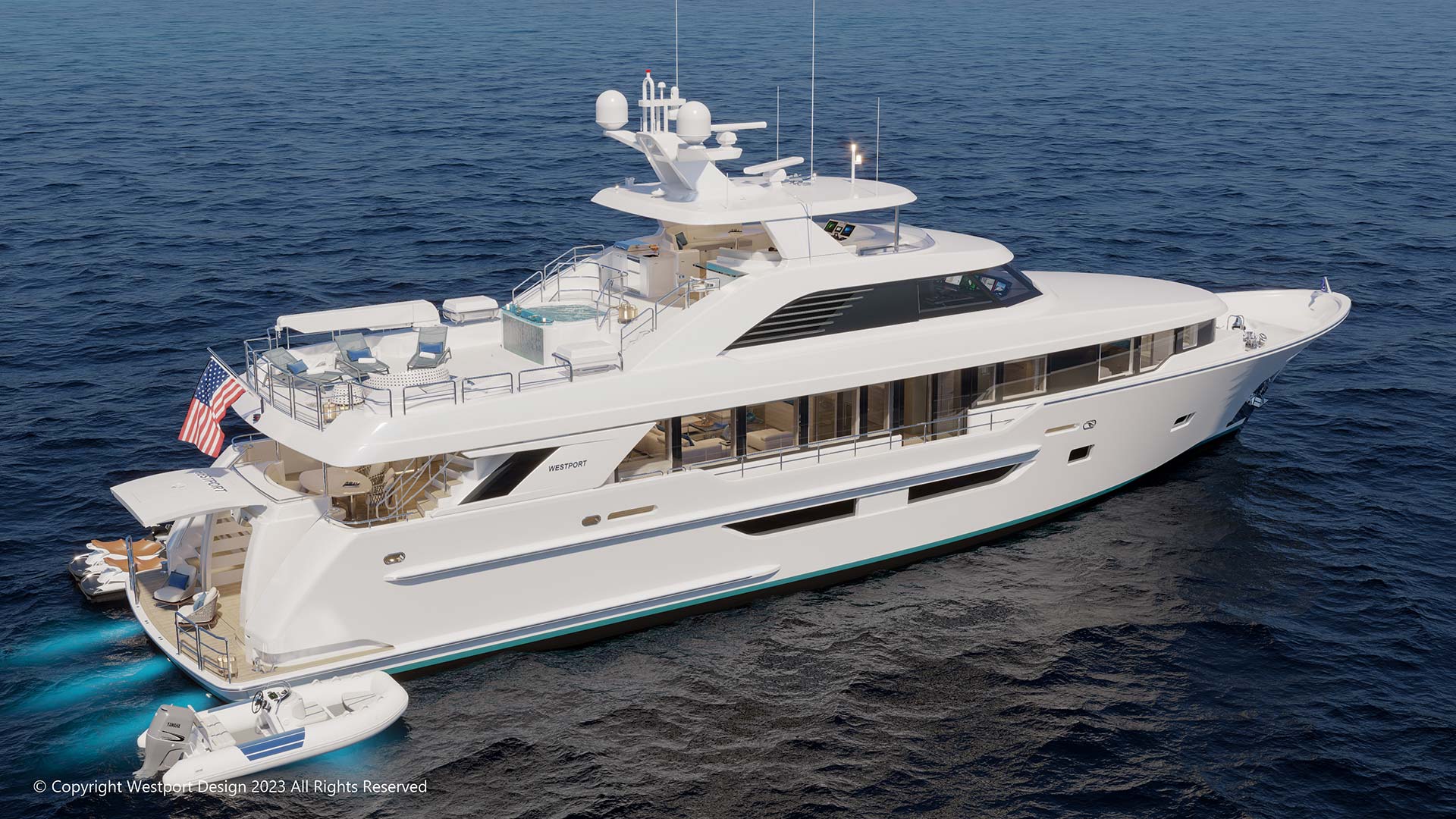

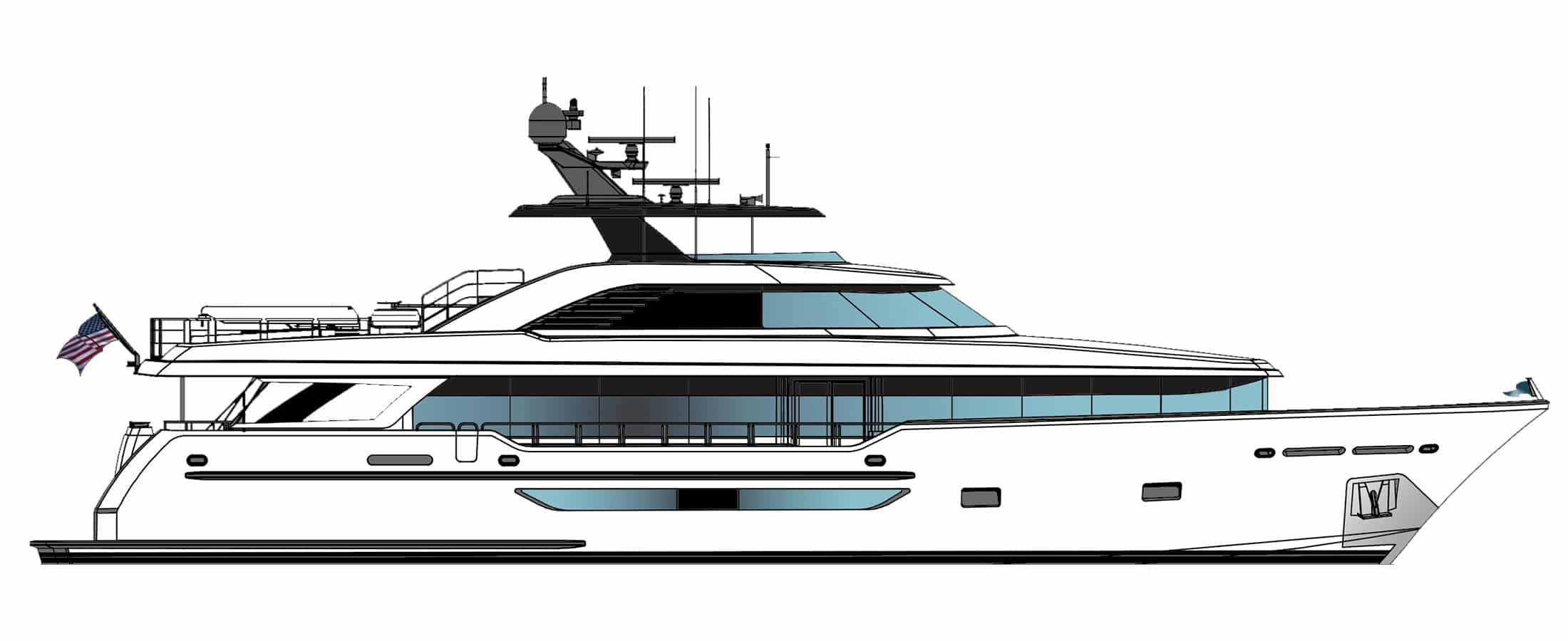

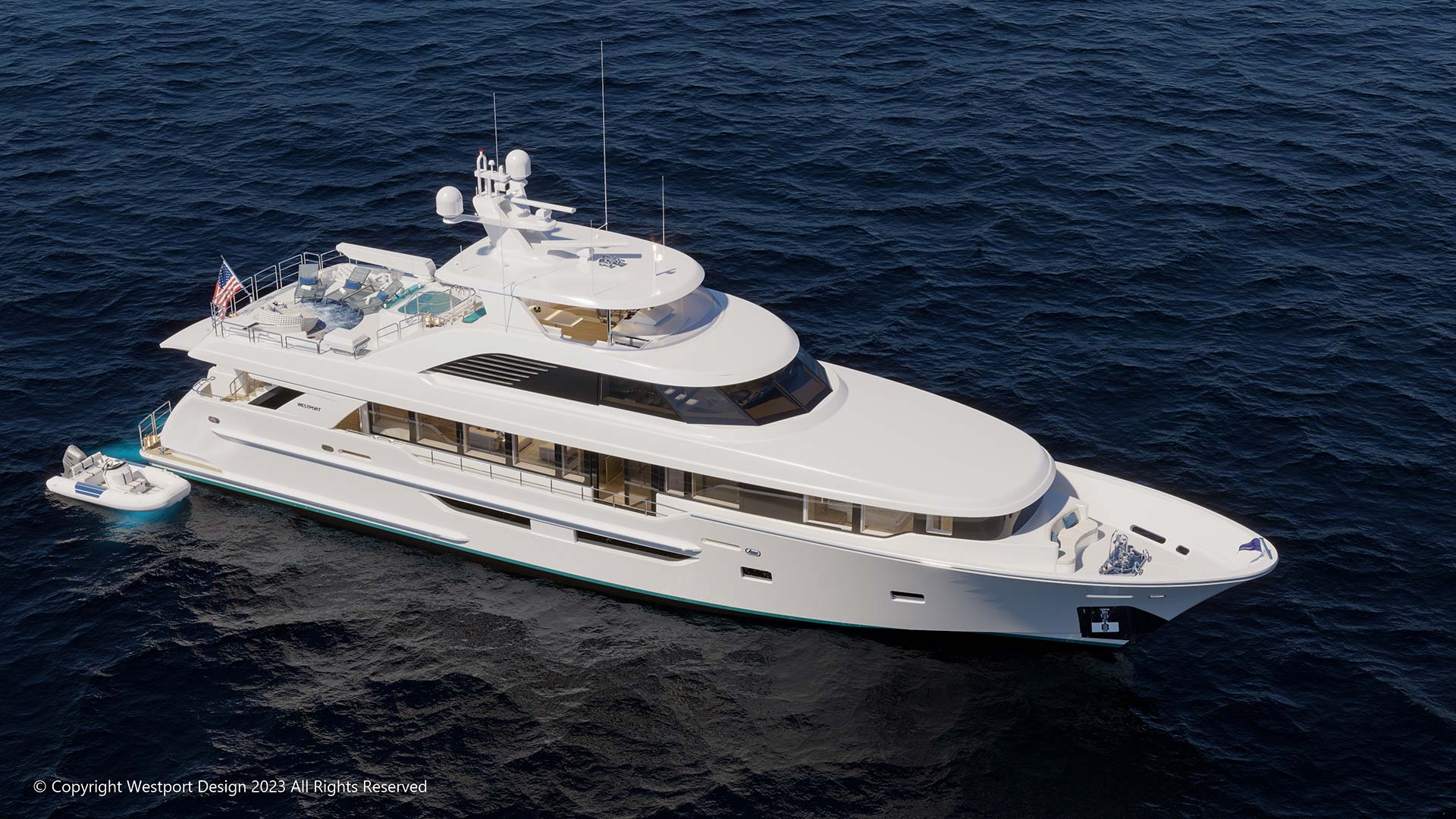

Westport W117 | 35m Raised Pilothouse
New Yacht Construction – Luxury, Privacy and Comfort
The Westport 117 | 35m offers eloquent proof of Westport’s leadership in the design and construction of exceptional motor yachts.
Crisp, contemporary styling balanced with timeless traditional appeal keynotes a vessel of extraordinary performance, built to uncompromising standards of structural integrity and quality.
Developed using leading-edge three-dimensional modeling and structural software used in the aviation industry, the Westport 117 motor yacht has met every objective for speed, ride, maneuverability, integrity, quality and classing capability.
Length
117′ 4″ / 35.76 m
Beam
25′ 2″ / 7.67 m
Draft
6′ 7″ / 2.0 m
Height
39’ 0” / 11.89 m
Sleeps
10 Guests
Crew
5 including Captain
Cruising Speed
20 knots
Maximum Speed
24 knots
Staterooms
5 Ensuite Staterooms
Master Suite On Deck
Displacement
Half 325,000 lbs
Full 349,400 lbs
Engines
(2) Caterpillar C32-ACERT
rated 1900 hp @ 2300 rpm
Generators
(2) Northern Lights
M80A13, 80 kW
*Measurements Are Approximate. 1/2 Load Displacement. ABS Classed – MCA Compliant.

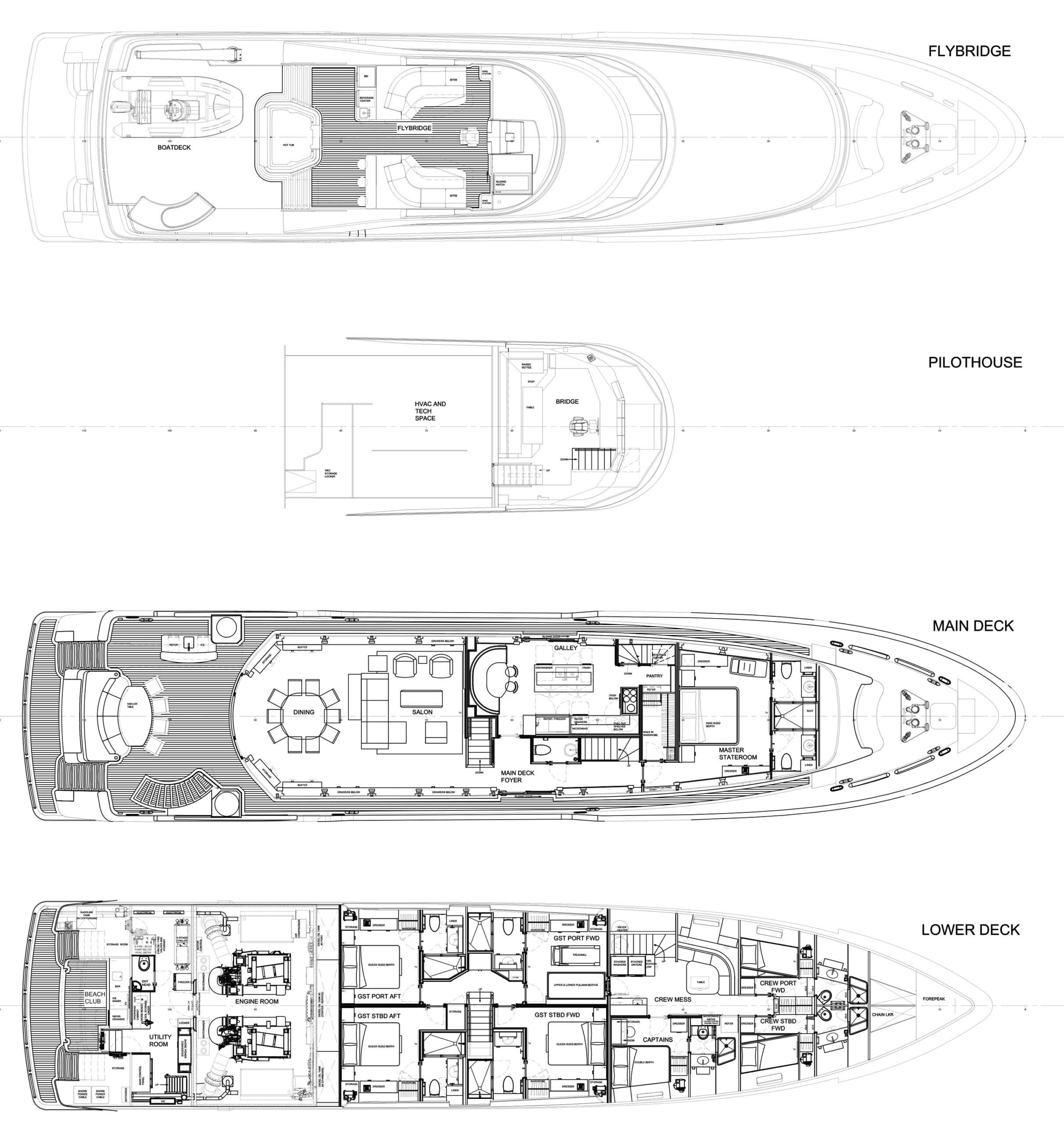

Up to ten owner and guests in five ensuite staterooms. Crew quarters for up to five, including captain, in three staterooms each with private head and showers.
| Sleeps | 10 owner / guests & 5 crew |

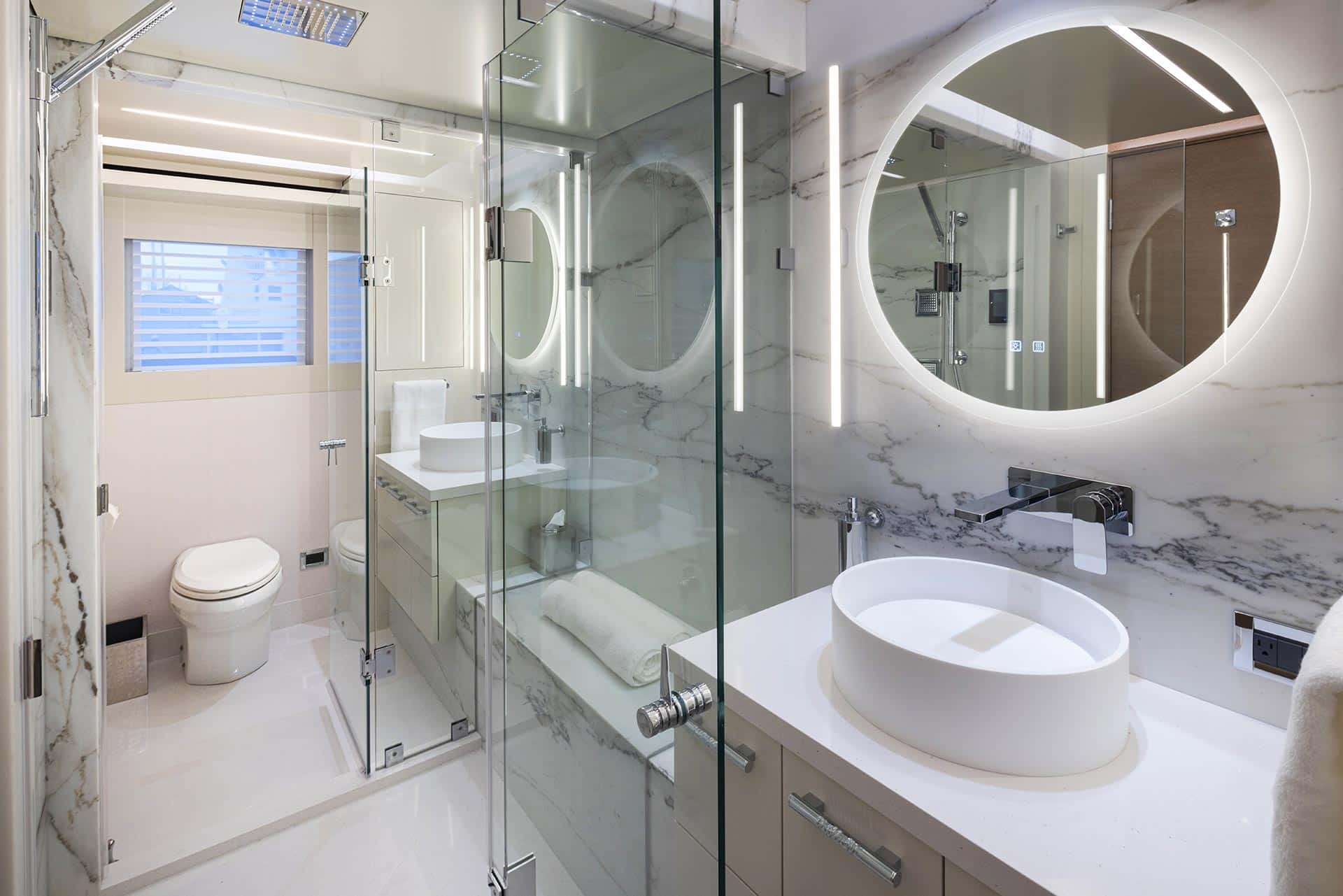

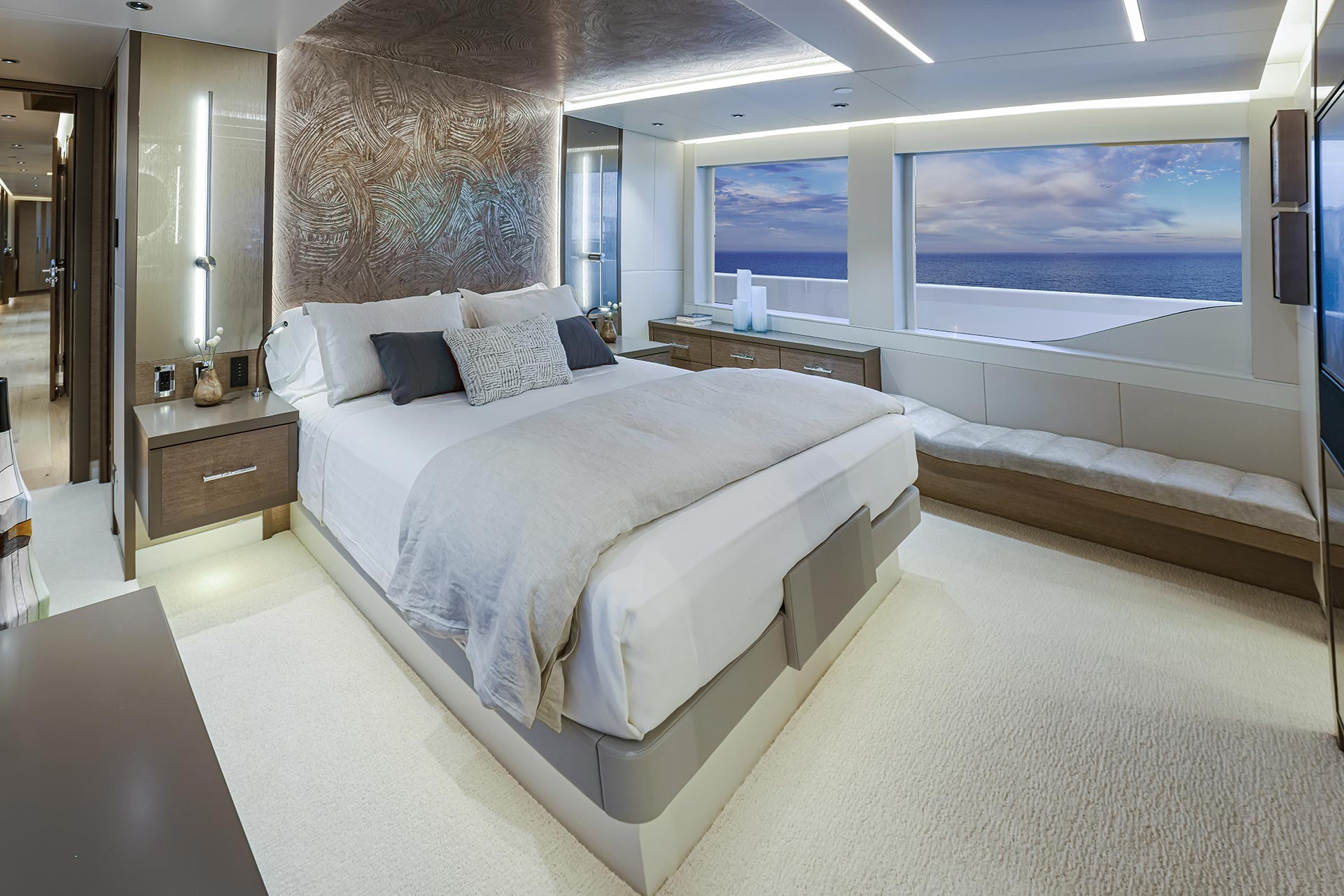

| Master Stateroom | Full width forward on the main deck. Center-line king bed. Separate “His” and “Her” bath entry. |

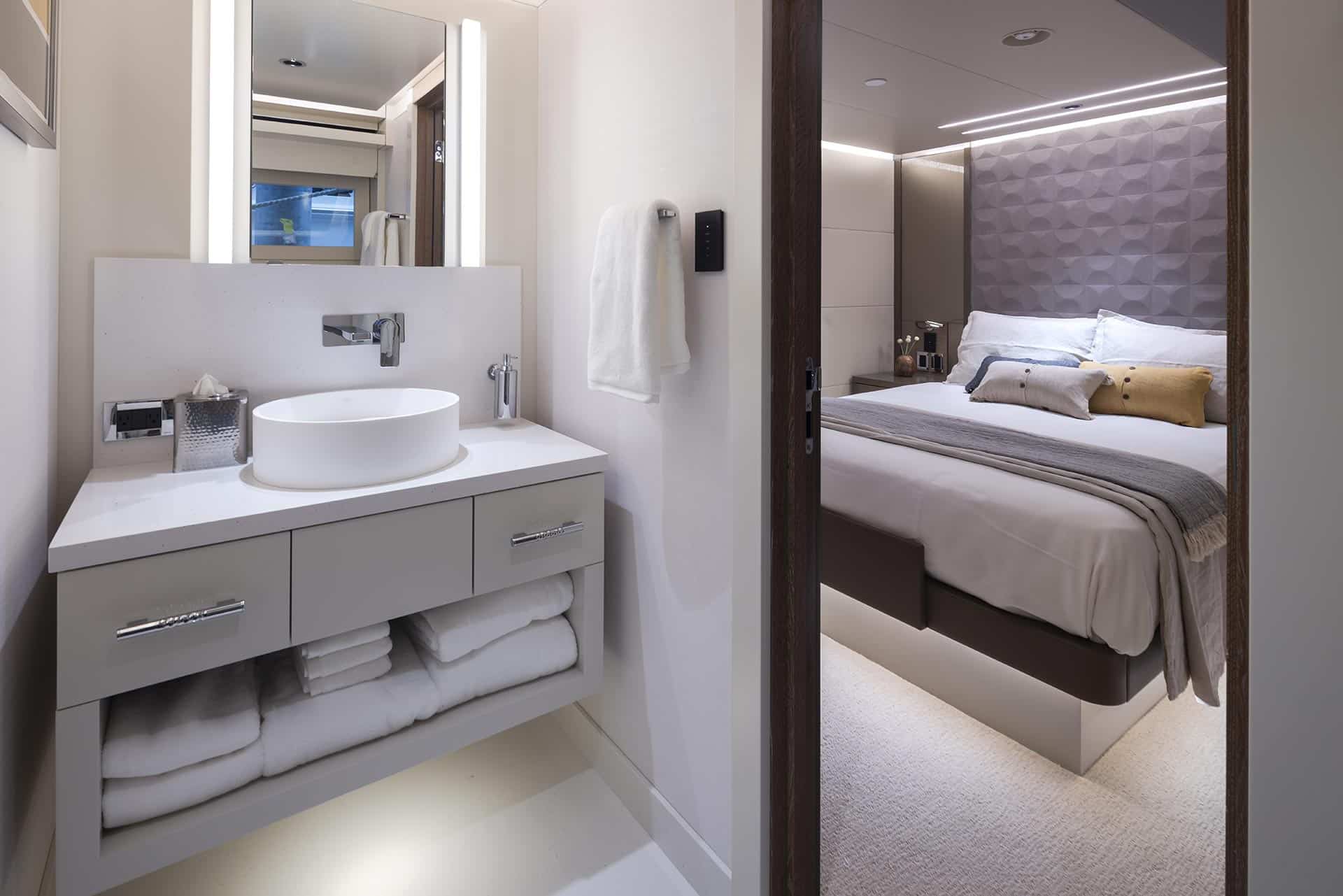

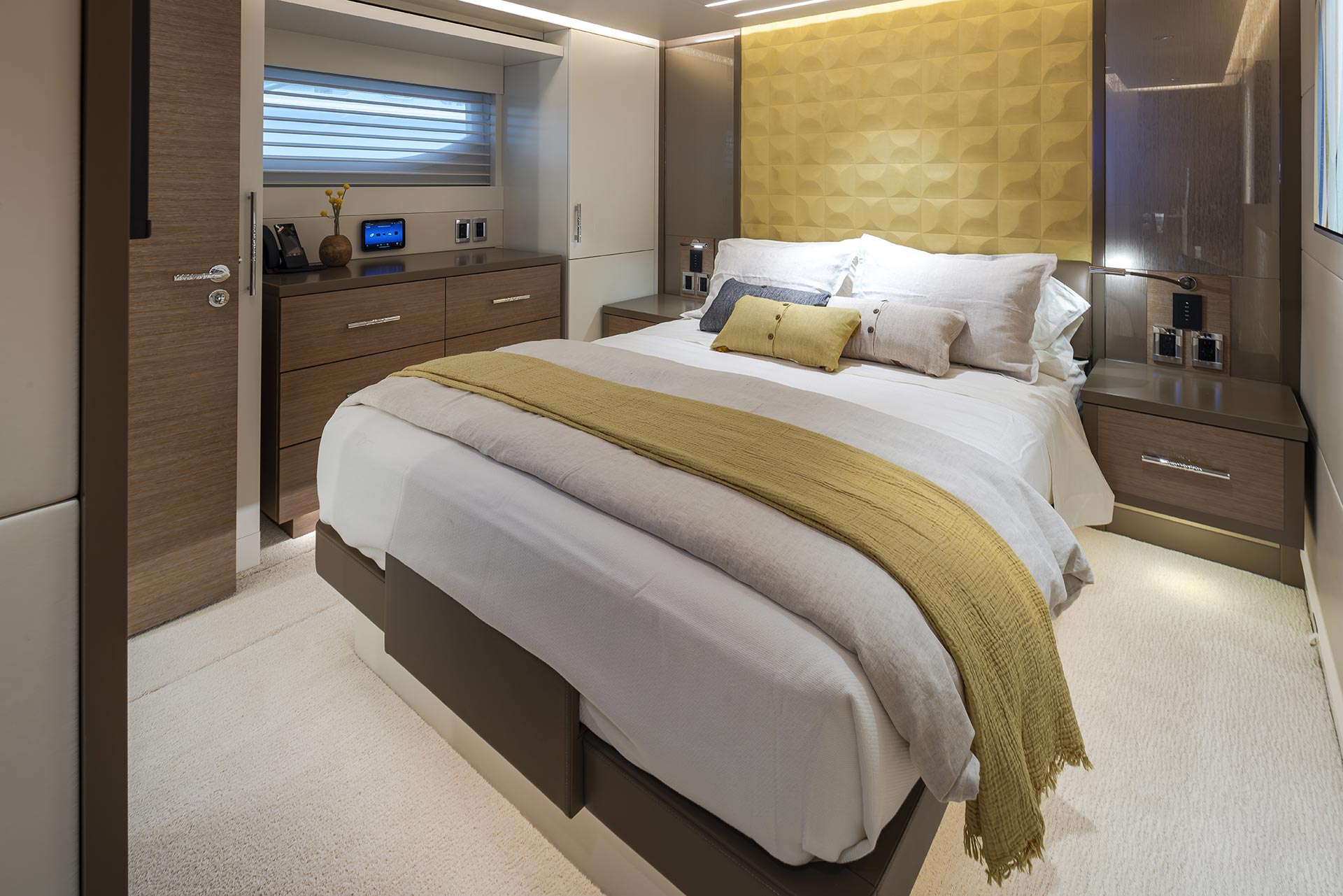

| Guest Staterooms | Three have Queen beds. The exercise room (port forward) has upper and lower Pullman twin beds. Each with a private bath. |

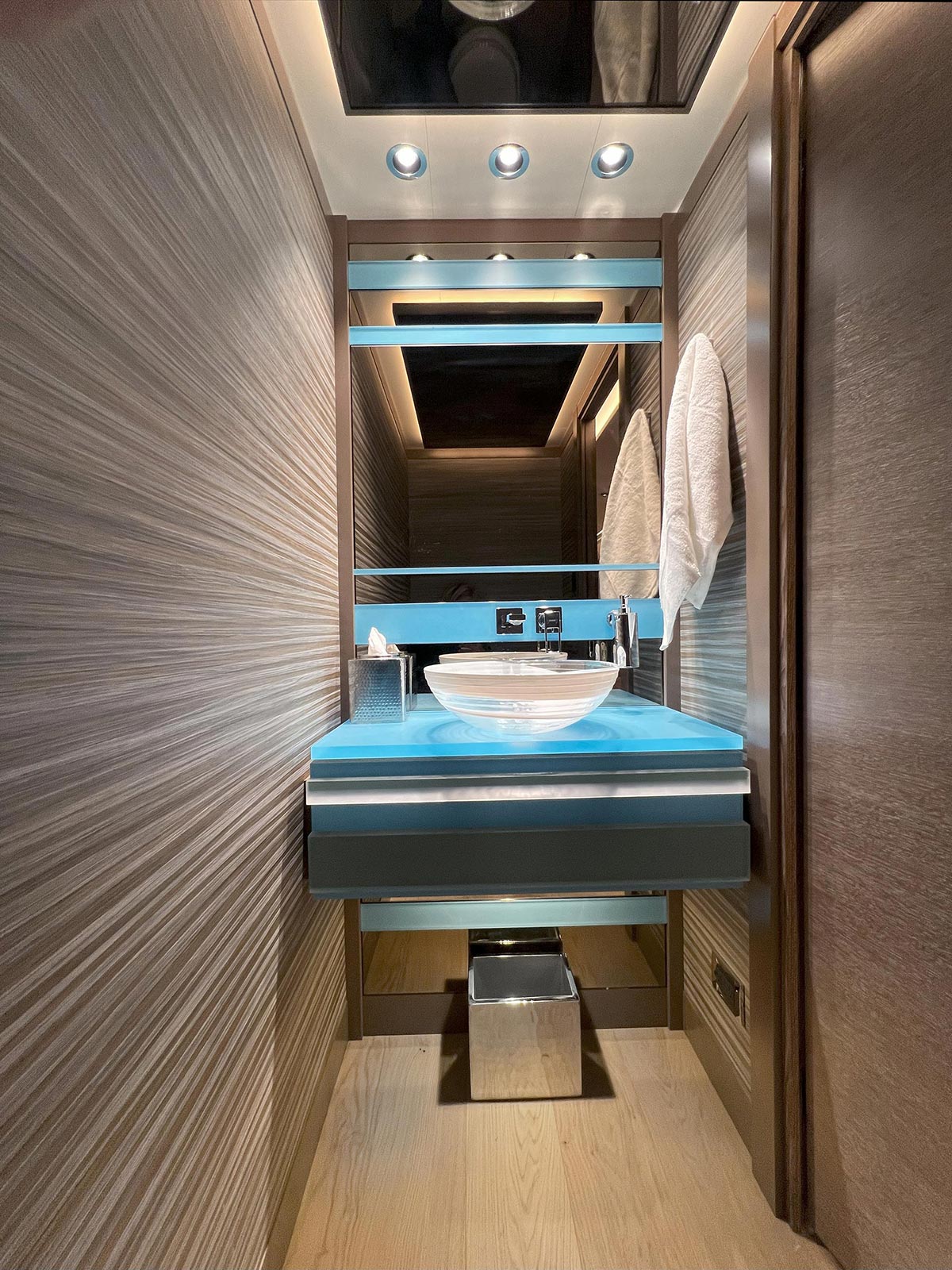

| Guest Heads | Guest Heads: Stone with Euro-style frameless tempered glass doors, includes a sealed light, Kohler DTV showering system , mirrored medicine cabinet, recessed LED room lights and vanity lighting, fixtures on each side of medicine cabinet, soap dispenser, toilet tissue holder, towel bar, towel ring, robe hook, vanity and medicine cabinet with mirror, linen locker in aft heads, Headhunter toilets |
| Crew Quarters | Three staterooms forward, each with private bath facilities. |
| Interior Woods | Premium woods, veneers, accent hardwoods, painted and wrapped surfaces are used in public areas and guest accommodations. |
| Exterior Finishes | Hull and superstructure are finished in Alexseal “Snow White” high-gloss urethane paint. Superstructure features are finished in Alexseal “Black Magic” metallic paint. Boot Stripe is finished in Alexseal “Super Jet Black” high-gloss urethane paint. Hull bottom coating is black Sea Hawk anti-fouling paint over an epoxy barrier coat. |
| Length | 117′ 4″ / 35.76 meters |
| Beam | 25′ 2″ / 7.67 meters |
| Draft | 6′ 7″ / 2.0 meters |
| Height | 39’ 0” / 11.89 meters |
| Hull Designer | Westport Yachts |
| Exterior Designer | Westport Yachts |
| Interior Designer | Westport Yachts – Customer ‘s Choice of Soft Coverings and Accent Items |
| Cruise Speed | 20 Knots |
| Max Speed | 24 Knots |
| Main Engines | 2 x Caterpillar C32-ACERT at 1,900 hp |
| Gear Boxes | ZF 3060A 3:1 Reduction Gears |
| Electrical | 12/24 DC & 208 volt AC/3 phase/60 Hz |
| Generators | (2) Northern Lights M80A13, 80 kW |
| Fuel | 6,119 gals / 23,162 ltrs |
| Water | 1,043 gals / 3,948 ltrs |
| Displacement | Full – 349,400 lbs, Half – 325,000 lbs, Light – 284,000 lbs |
| Air Conditioning | 30 ton / 2 compressor HVAC temp & humidity systems |
| Watermakers | 2 x Blue Water Desalination Legend Compact 1850 (3,700 gallons per day total) |
| Gyros | Stabilization at rest is provided by two model 35 Seakeeper gyro stabilizers |
| Satellite Phone | KVH V7HTS & Iridium |
| Fins | Naiad model 525, 19 square foot fins, single station control, with oil level warning, unloading valve kits and dual pumps with gauge kits. |
| Satellite TV | KVH TracVision UHD7 system provides an Ultra HD satellite connection for North America. |
| Radars | (2) Furuno DRS25AX X-Band radar with 6’ open array, 96 NM range |

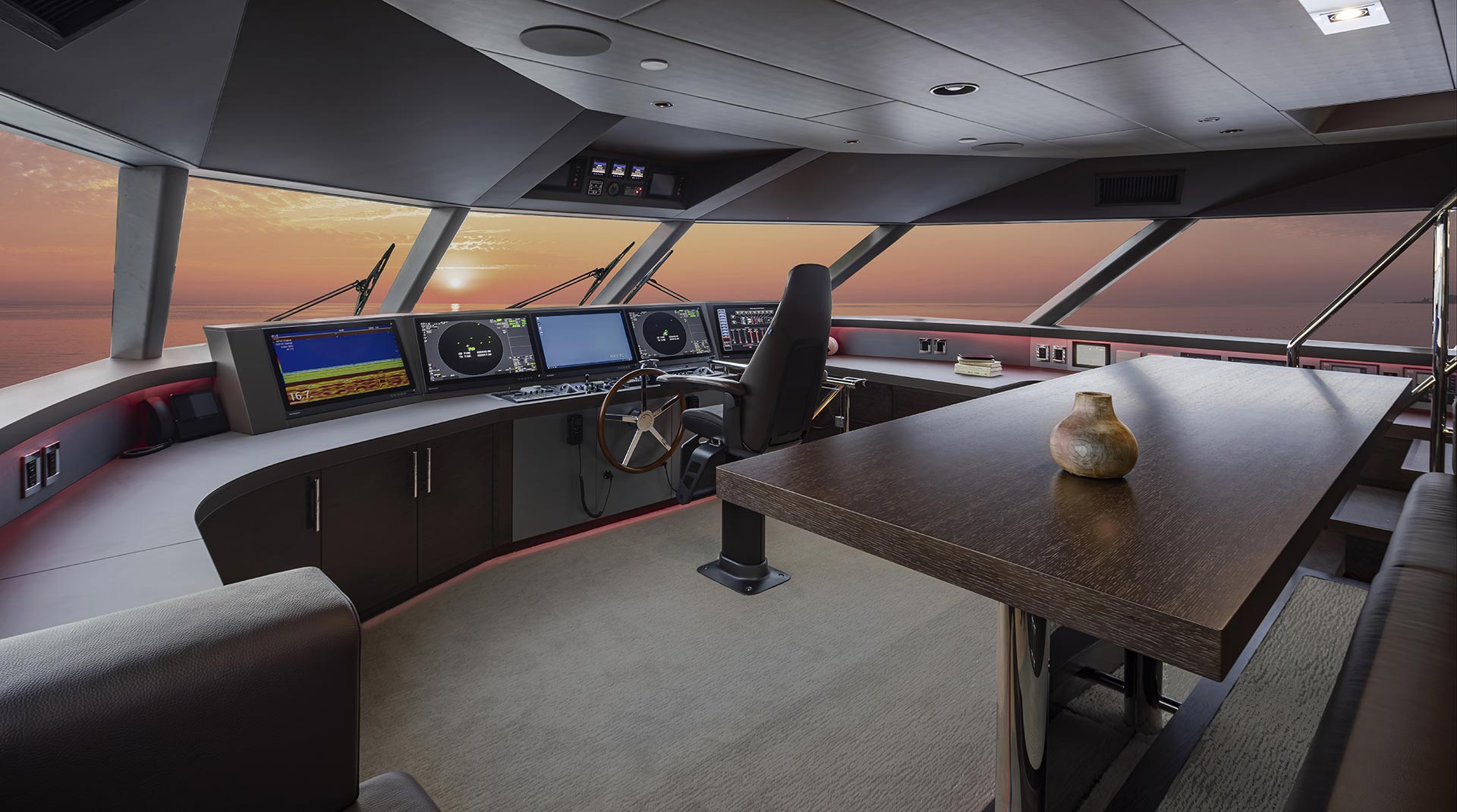

| Nav Software | Nobeltec TZ Professional chart plotting system with radar overlay provides coastal navigation tools with excellent charting database and bathymetric data for coastal cruising. |
| Audio/Video Control | Crestron NVX IP Digital Media system / iPad |
| Washer / Dryer | 2 Combo Miele |
| MSD | Headhunter |
| Heads | Headhunter |
| New Lube Oil | 58 gals |
| Waste Oil | 58 gals |
| Gyro Compass | Furuno SCX21 |
| Centrifuge | Optional |
| Bow Thruster | American Bow Thruster 16”, 60 hp electric dual prop with four-station controls |
| Thru Hulls | Bronze |
| Props | 50” diameter x 50” pitch 1.05 DAR Michigan NiBrAl five-blade custom wheels |
| Prop Shafts | 4½” Aquamet 22-H.S. or equal |
| Rudders | Wake adapted cast bronze foil-shape 10½ square foot rudders with 5½” Aquamet 22HS or equal stainless steel stocks |
| Struts | Nibral cast wake adaptive I struts |
| Crane | Nautical Structures 2500 lb |
| Passarelle | Optional Nautical Structures |
| Life Rafts | Two 16-man Zodiac life rafts |
| Paint | Alexseal “Snow White” high-gloss urethane paint |
| Anchors | (2) Poole style polished stainless steel as required by ABS |
| Chain | 5/8” galvanized steel, 350’ on starboard, 250’ on port |
| Life Preservers | 17 Adult / 6 Child |
| Fire System | FM 200 |

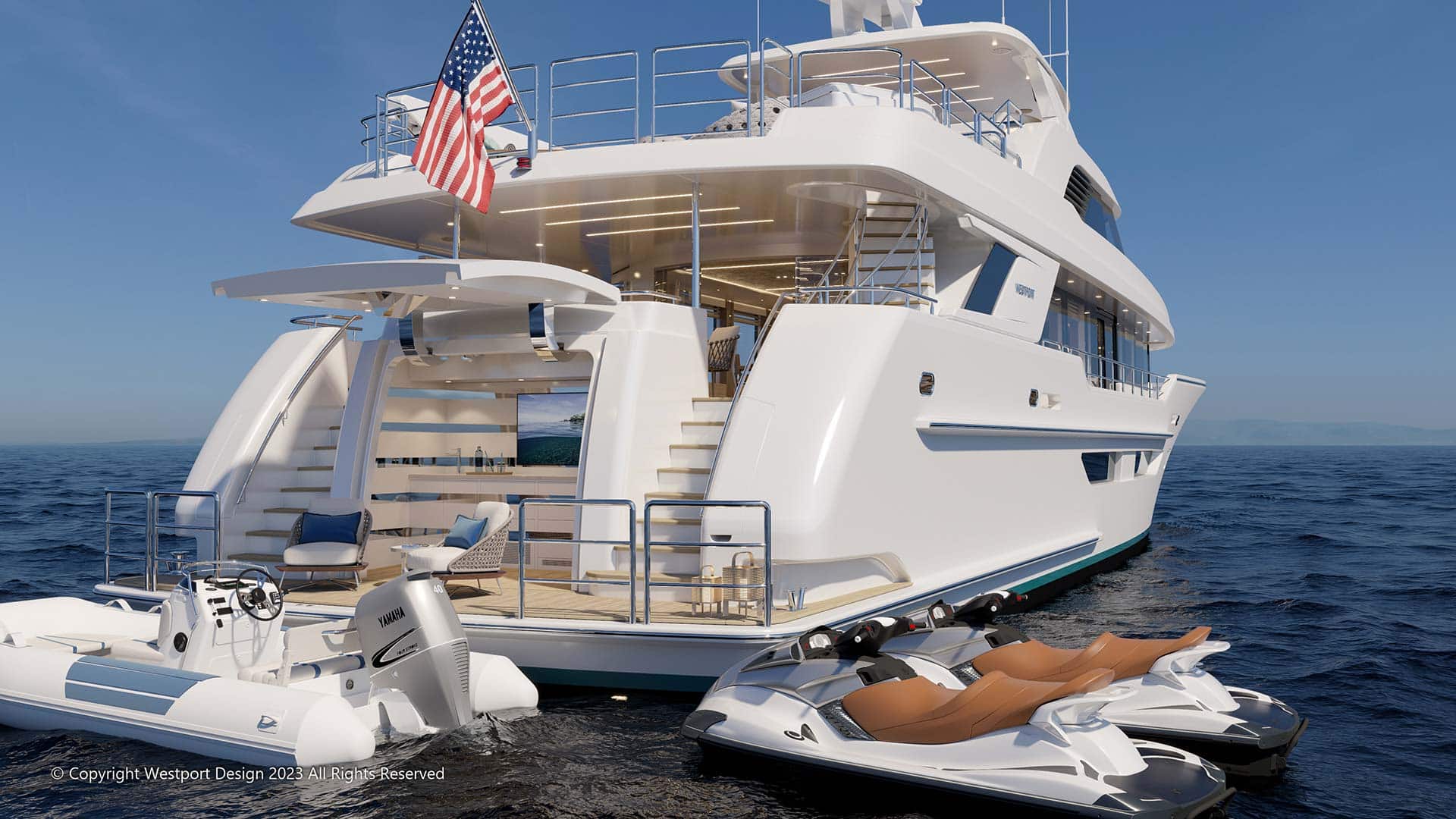

| Tender | AB Nautilus 15DLX with 70 hp Yamaha outboard motor, includes the following: starboard console, VHF radio with fold down antenna, compass, depth sounder, polished stainless steel rails, transom ladder, and lifting bridle |
| Windows | Superstructure side and Pilothouse front windows are frameless, laminated glass, direct bonded to the vessel structure with a structural adhesive system. Portlights and hull windows are toughened, laminated glass, direct bonded to recesses integrally molded into the hull. Hull, Main Deck, and Pilothouse exterior windows are frameless, laminated, chemically strengthened glass with an internal structural layer, and directly bonded to the vessel’s structure using a class approved structural adhesive system. Window thicknesses are in accordance with ABS standards. |
Leadership in Design & Construction

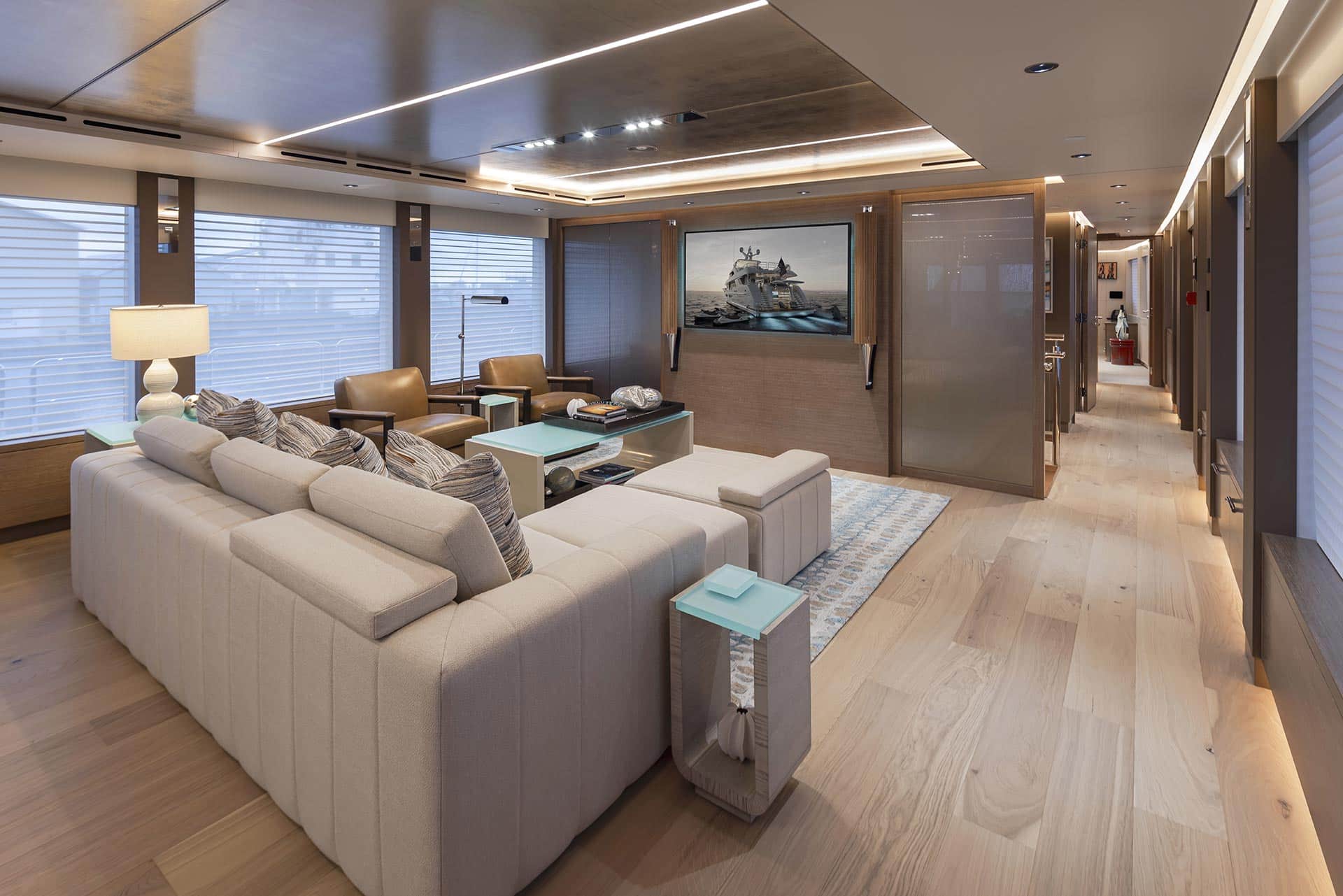

The interior arrangement offers unsurpassed luxury, privacy and comfort, whether socializing at dockside or at a remote anchorage. An advanced hull design delivers exhilarating cruise speed and a moderate draft for access to any yachting destination.
ABS-classed W117 has a long list of premium standard features that ensure complete enjoyment.
