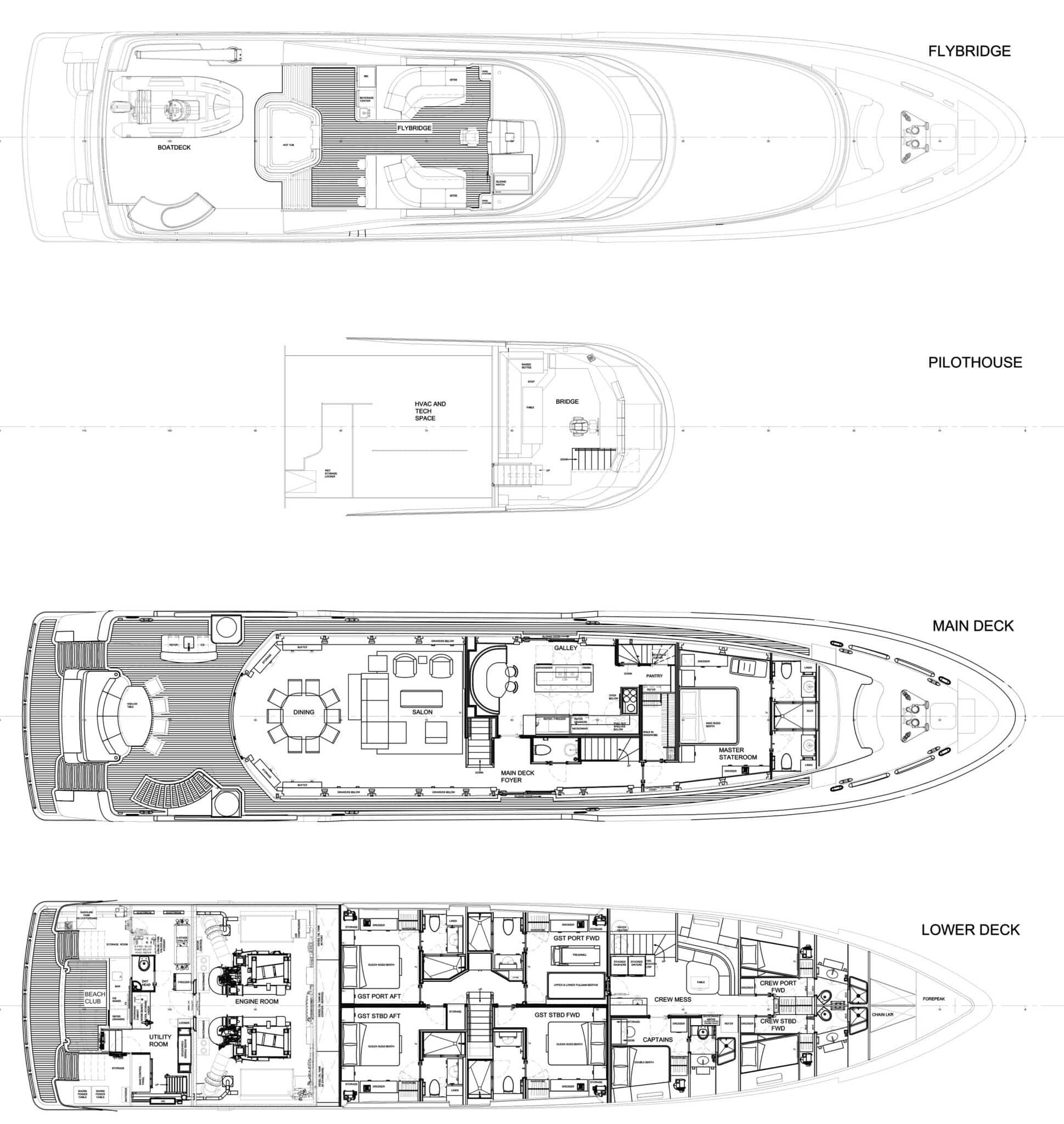

General Arrangement - Layout and Profile

Westport 117 | 35m

Raised Pilothouse Motoryacht

Length:
117' 4" / 35.76 m
Beam:
25' 2" / 7.67 m
Draft:
6' 7" / 2.0 m
Sleeps: 10 in 5 Staterooms
Crew: 5 Including Captain
Cruise Speed: 20 Knots
Max Speed: 24 Knots
Generators: (2) 80 KW
Displacement: 284,000 lbs
Engines: (2) Caterpillar C32-ACERT rated 1900 hp @ 2300 rpm
Hull Design: Westport Yachts
*Measurements Are Approximate. 1/2 Load Displacement

Specifications & Features - Westport W117 | 35M

Executed to a Yacht Owners' Personalized Standards


Sleeps 10 in 5 Ensuite Staterooms

20+ Knot Cruising Speeds

Up to 5 Crew Including Captain

Engineered for Enjoyment

"If you put value into your product, find a niche, satisfy your customers and establish a good reputation, success will follow."

Length: 117' 4" / 35.76 meters
Beam: 25' 2" / 7.67 meters
Draft: 6' 7" / 2.0 meters
Hull Designer: Westport Yachts
Exterior Designer: Westport Yachts
Interior Designer: Westport Yachts - Customer 's Choice of Soft Coverings and Accent Items
Cruise Speed: 20 Knots
Max Speed: 24 Knots
Main Engines: 2 x Caterpillar C32-ACERT at 1,900 hp
Gear Boxes: ZF 3060A 3:1 Reduction Gears
Electrical: 12/24 DC & 208 volt AC/3 phase/60 Hz
Generators: (2) Northern Lights M80A13, 80 kW
Fuel: 6,119 gals / 23,162 ltrs
Water: 1,043 gals / 3,948 ltrs
Displacement: Full - 349,400 lbs, Half - 325,000 lbs, Light - 284,000 lbs
* All Measurements Are Approximate and Based on 1/2 Load Displacement. Speeds Subject to Conditions, Loads and Other Factors.
Sleeps: 10 Owner / Guests & 5 Crew
Up To Ten Owner & Guests in Five Ensuite Staterooms. Crew Quarters for Up To Five, Including Captain, in Three Staterooms each with Private Head & Showers.
Master Stateroom:
Full width mid-ship on lower deck. Center-line king bed. Separate "His" and "Her" bath entry.
Guest Staterooms:
Three have Queen beds. Exercise room (port forward) has upper and lower Pullman twin beds. Each with private bath.
Crew's Quarters:
Three staterooms forward, each with private bath facilities.
Interior Woods:
Premium woods, veneers, accent hardwoods, painted and wrapped surfaces are used in public areas and Guest accommodations.
* All Measurements Are Approximate and Based on 1/2 Load Displacement. Speeds Subject to Conditions, Loads and Other Factors.
Air Conditioning: 30 ton / 2 compressor HVAC temp & humidity systems
Watermakers: 2 x Blue Water Desalination Legend Compact 1850 (3,700 gallons per day total)
Gyros: Stabilization at rest is provided by two model 35 Seakeeper gyro stabilizers
Satellite Phone: KVH V7HTS & Iridium
Fins: Naiad model 525, 19 square foot fins, single station control, with oil level warning, unloading valve kits and dual pumps with gauge kits.
Satellite TV: KVH TracVision HD7
Radars: (2) Furuno DRS25AX X-Band radar with 6’ open array, 96 NM range
Nav Software: Nobeltec TZ Professional chart plotting system with radar overlay provides coastal navigation tools with excellent charting database and bathymetric data for coastal cruising.
Audio/Video Control: Crestron NVX IP Digital Media system / iPad
Washer / Dryer: 2 Combo Miele
MSD: Headhunter
Heads: Headhunter
New Lube Oil: 58 gals
Waste Oil: 58 gals
Gyro Compass: Furuno SCX21
Centrifuge: Optional

Bow Thruster: American Bow Thruster 16”, 60 hp electric dual prop with four-station controls
Thru Hulls: Bronze
Props: 50” diameter x 50” pitch 1.05 DAR Michigan NiBrAl five-blade custom wheels
Prop Shafts: 4½” Aquamet 22-H.S. or equal
Rudders: Wake adapted cast bronze foil-shape 10½ square foot rudders with 5½” Aquamet 22HS or equal stainless steel stocks
Struts: NiBrAl cast wake adaptive I struts

Crane: Nautical Structures 2500 lb
Passarelle: Optional Nautical Structures
Life Rafts: Two 16-man Zodiac life rafts
Paint: Alexseal “Snow White” high-gloss urethane paint
Anchors: (2) Poole style polished stainless steel as required by ABS
Chain: 5/8” galvanized steel, 350’ on starboard, 250’ on port
Life Preservers: 17 Adult / 6 Child
Fire System: FM 200
Tender: AB Nautilus 15DLX with 70 hp Yamaha outboard motor, includes the following: starboard console, VHF radio with fold down antenna, compass, depth sounder, polished stainless steel rails, transom ladder, and lifting bridle
Windows: Superstructure side and Pilothouse front windows are frameless, laminated glass, direct bonded to the vessel structure with a structural adhesive system. Portlights and hull windows are toughened, laminated glass, direct bonded to recesses integrally molded into the hull. Hull, Main Deck, and Pilothouse exterior windows are frameless, laminated, chemically strengthened glass with an internal structural layer, and directly bonded to the vessel’s structure using a class approved structural adhesive system. Window thicknesses are in accordance with ABS standards.
* All Measurements Are Approximate and Based on 1/2 Load Displacement. Speeds Subject to Conditions, Loads and Other Factors.

Westport W117 | 35M - Overhead
Westport W117 | 35M - Flybridge
Westport W117 | 35M - Upper Deck
Westport W117 | 35M - Salon
Westport W117 | 35M - Beach Club
Westport W117 | 35M - Salon
Westport W117 | 35M - Exterior Details
Westport W117 | 35M - Pilothouse

Westport W117 | 35M

Leadership in Design & Construction

Westport uses conventional and high-tech materials and construction techniques to create a tough, yet lightweight hull.

We use linear PVC foam core to make it tough enough to absorb and distribute impact energy, and in the superstructure and decks we use lighter and stiffer cores. In some of the upper structures we add a fair amount of carbon fiber to give stiffness to the decks while keeping the weight down

Westport doesn't cut corners when it comes to standard equipment.

Westport Yacht Details
Westport Yacht Details
Westport Yacht Details
Westport Yacht Details
Westport Yacht Details
Westport Yacht Details
Sample Details & Finishes
Click image to enlarge

Westport Builds Turn-key Motor Yachts

After completing a 16-hour orientation - owner's can get out on the water immediately. The yacht is fast, quiet and vibration-free.

Each stateroom has a complete entertainment system, aromatic cedar closets and soffits. The crew quarters for six are located aft of the engine room and are finished to guest standards.

It's Easy to See Why There Is So Much Value in the Westport Line of Yachts

Westport W117 | 35M - Beach Club
Westport W117 | 35M - Flybridge Helm
Westport W117 | 35M - Aft Deck
Westport W117 | 35M - Beach Club
Westport W117 | 35M - Salon
Westport W117 | 35M - Galley
Westport W117 | 35M - Pilothouse Seating

world-class customer service

and global support

A Yacht Builder of Mega Yacht Resources

Similarly, series production of motoryachts enables the builder to distribute development costs among several units, and therefore to justify a sizable investment in naval architecture, styling and interior design, to engineer and document the build down to the last detail, and to acquire the ideal infrastructure-molds, fixtures, equipment ... even buildings - for unsurpassed precision and control throughout the entire construction process.

Not many builders have the size and resources to make the kind of investment necessary to implement true series production. Westport does ... and the advantages are many.

Westport W117 | 35M - Salon
Westport W117 | 35M - Galley
Westport W117 | 35M - Beach Club
Westport W117 | 35M - Overhead
Westport W117 | 35M - Flybridge
Westport W117 | 35M - Master Stateroom
